Manual Transaxle Unit: Components

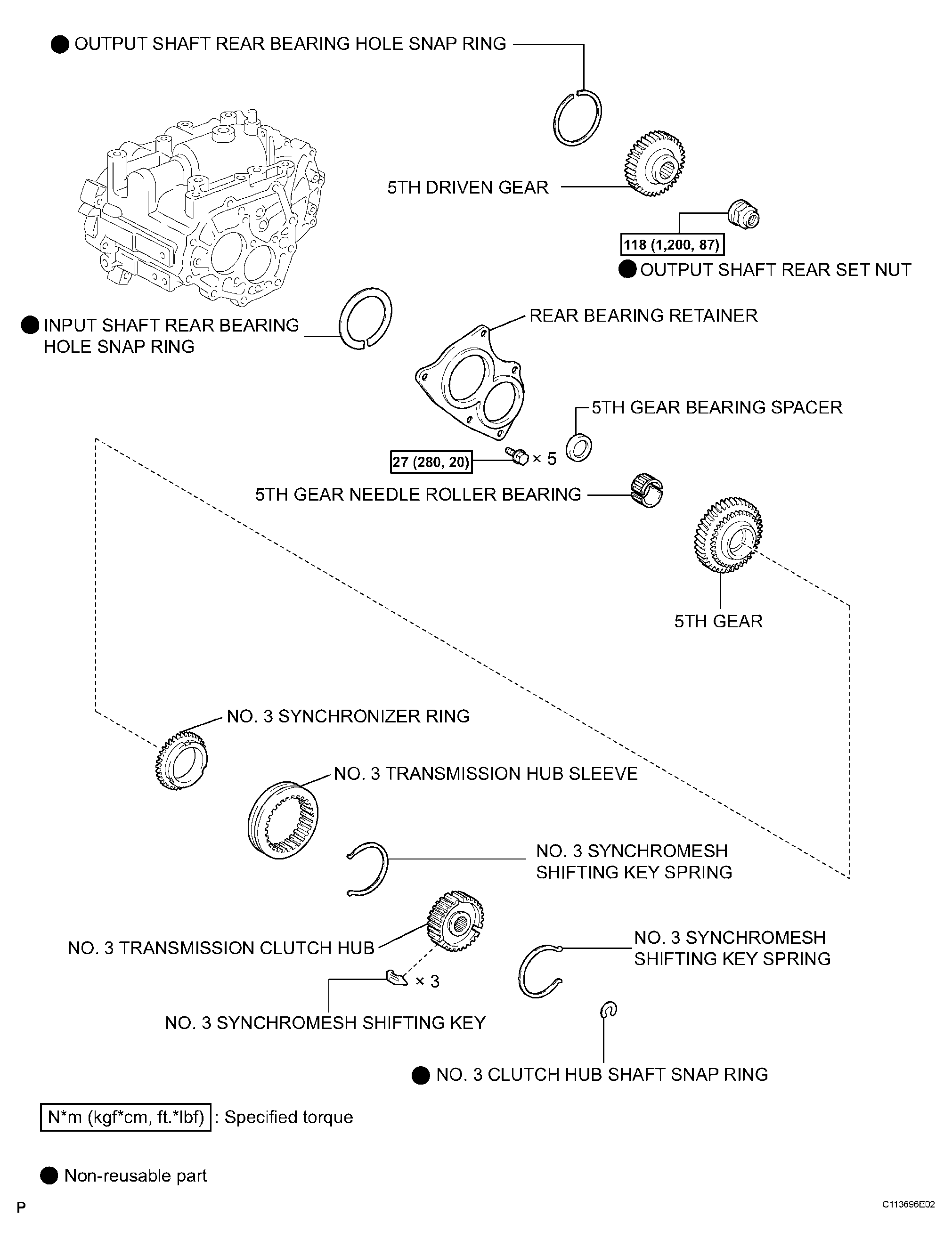

Fig 1: Exploded View Of Manual Transaxle Unit (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

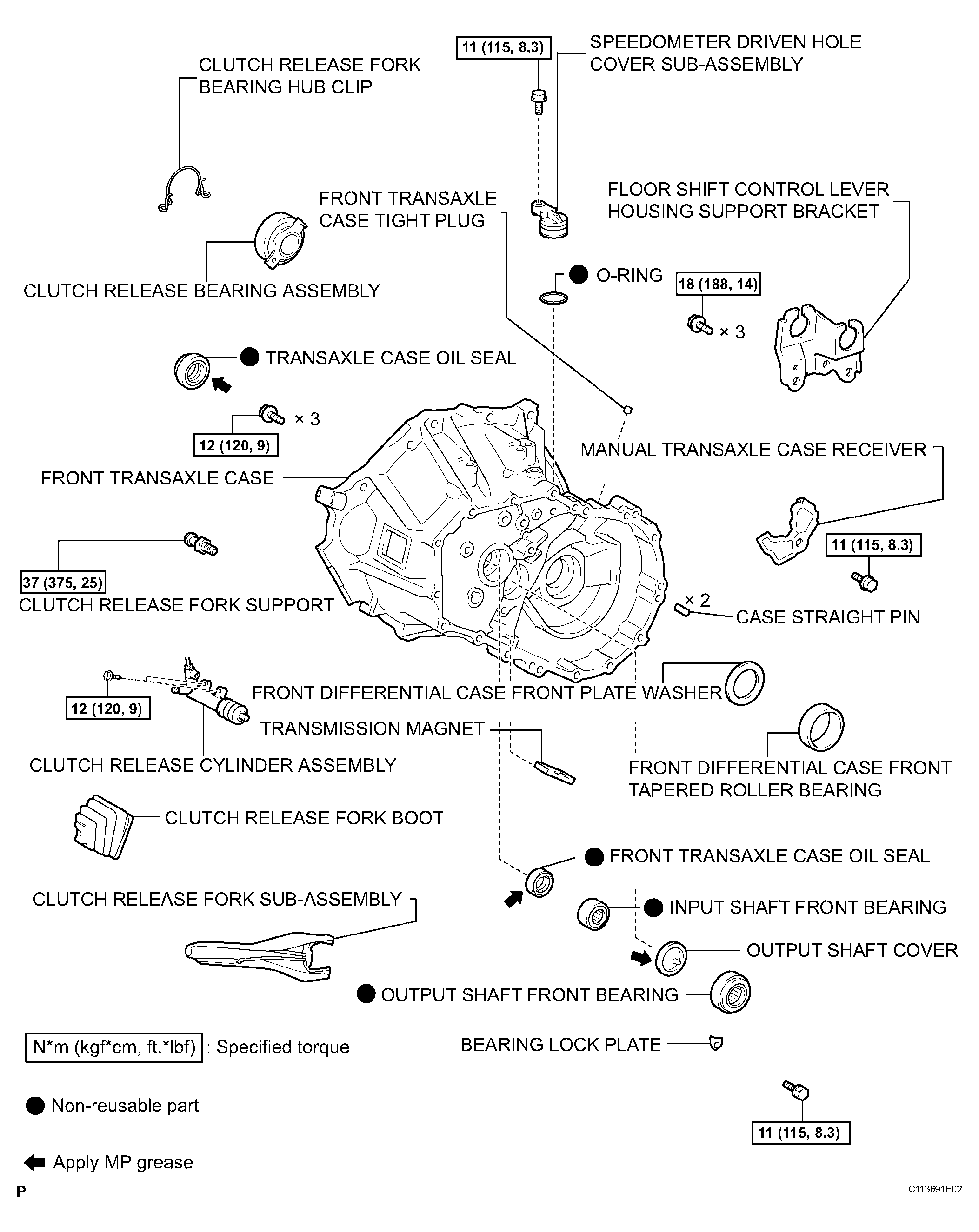

Fig 2: Exploded View Of Manual Transaxle Unit (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

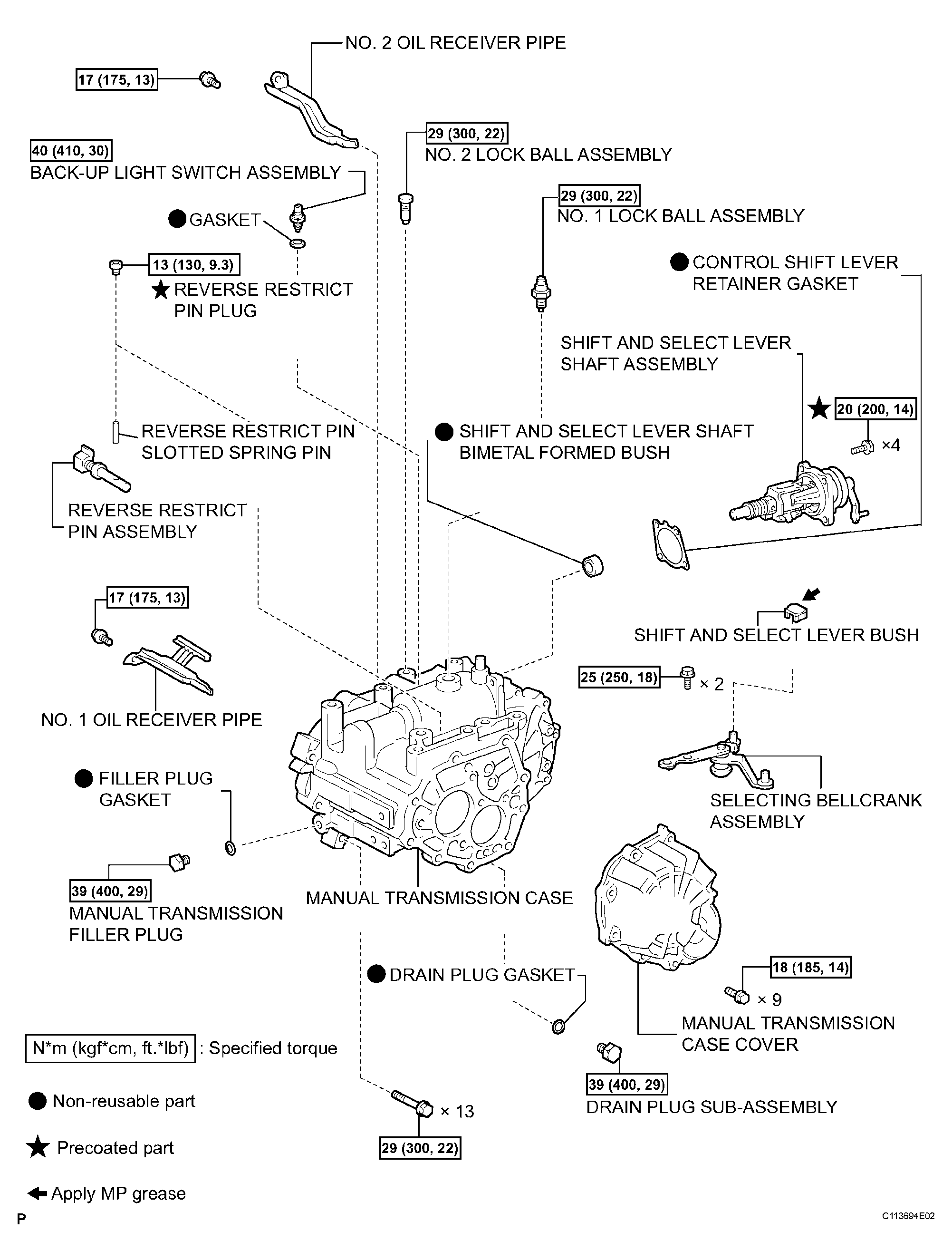

Fig 3: Exploded View Of Manual Transaxle Unit (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

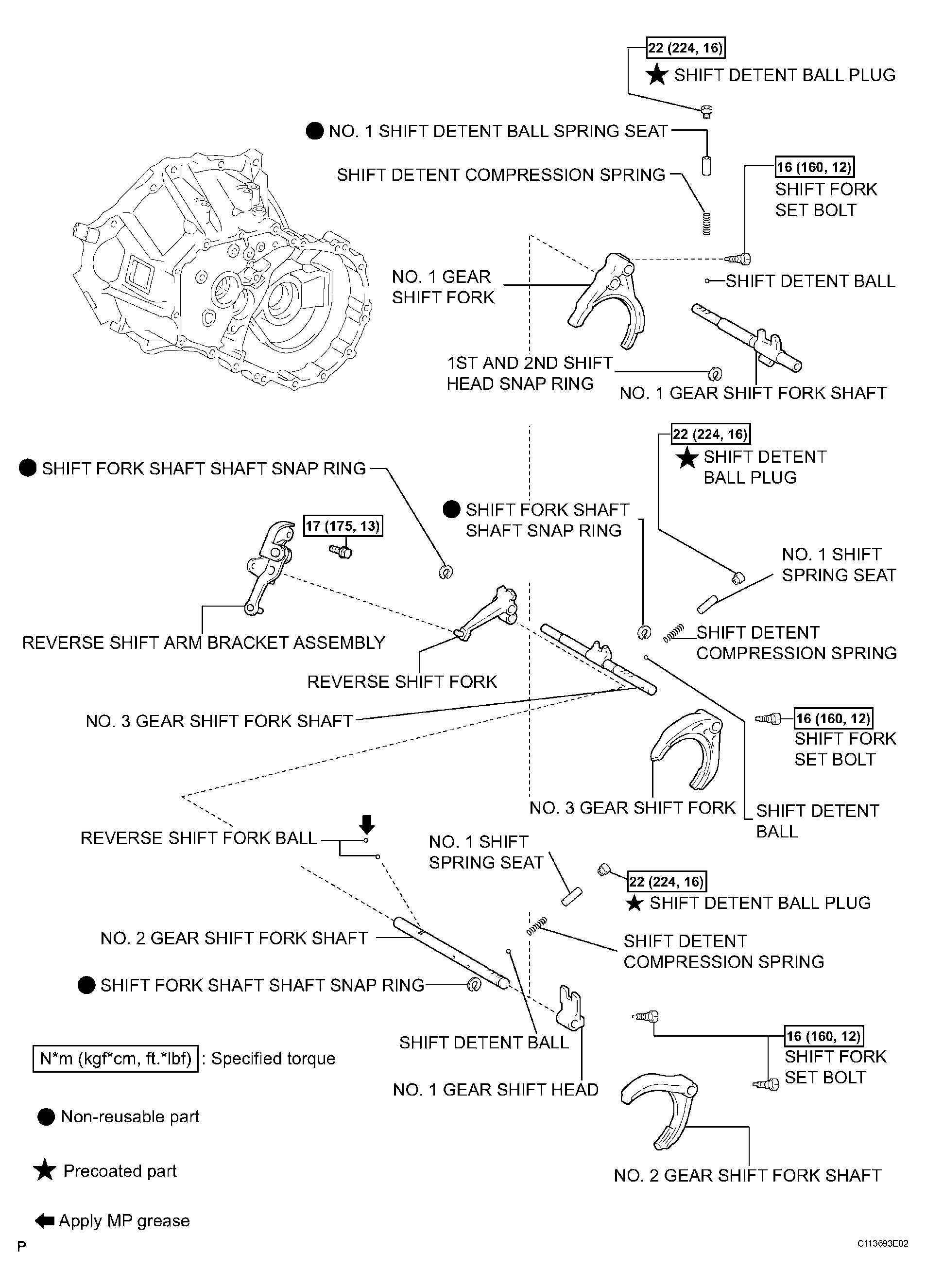

Fig 4: Exploded View Of Manual Transaxle Unit (4 Of 6)

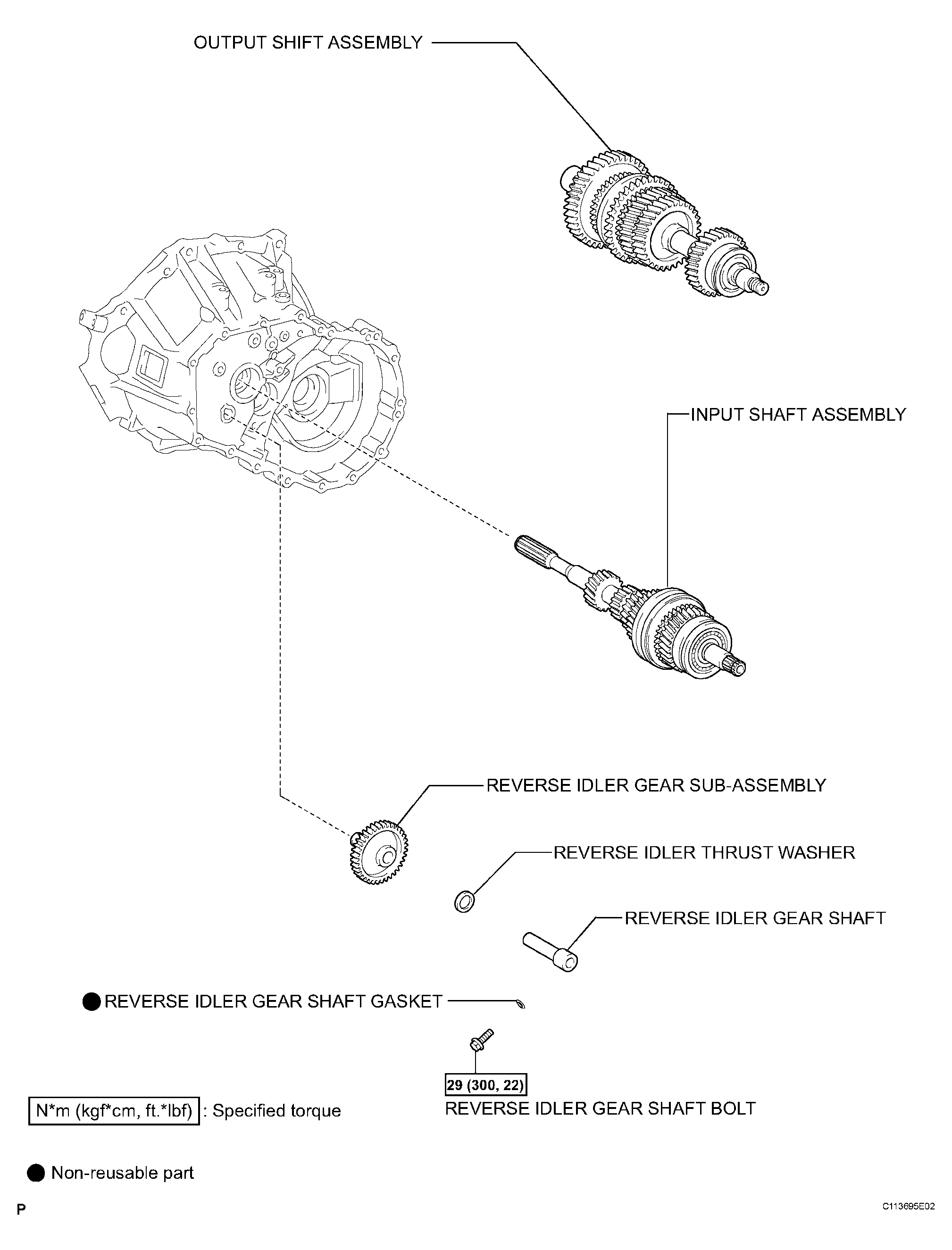

Fig 5: Exploded View Of Manual Transaxle Unit (5 Of 6)

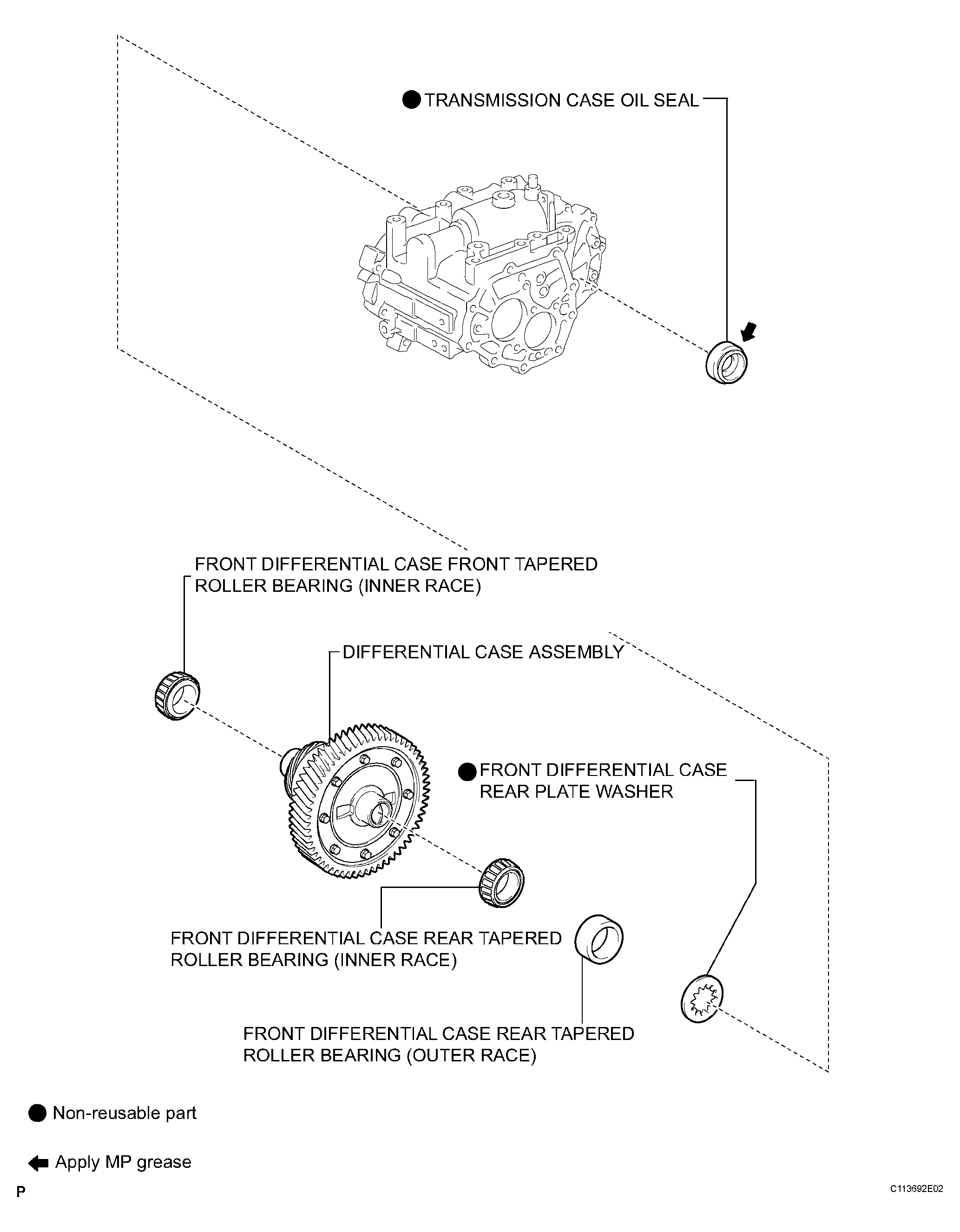

Fig 6: Exploded View Of Manual Transaxle Unit (6 Of 6)
