Transmission Control Cable: Installation

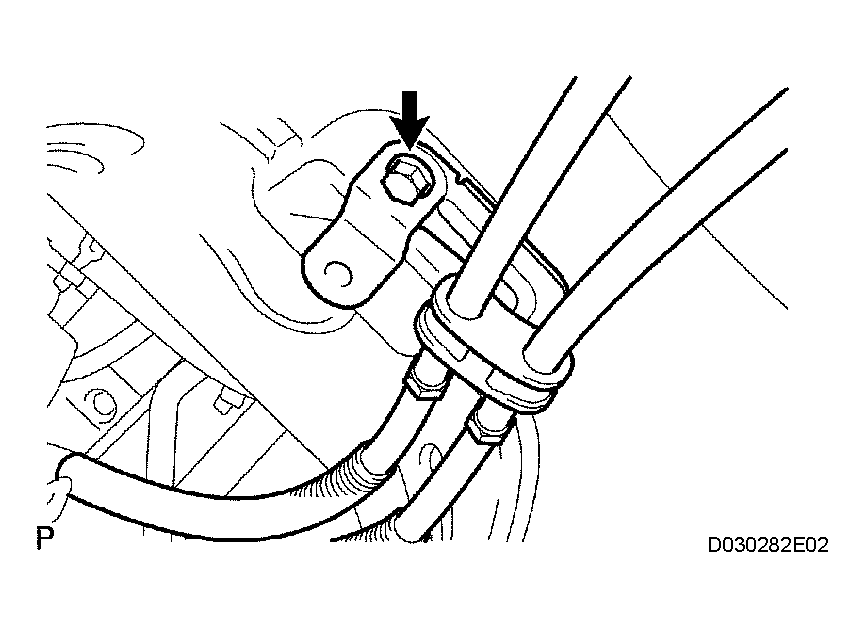

1. Install the clamp with the bolt.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

2. Insert the transmission control select cable and transmission control shift cable through the floor hole and retainer.
3. Install the transmission control select cable to the grommet.
4. Install the retainer on the grommet.
   Fig 1: Installing Retainer On Grommet

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Fit the projections of the grommet into the holes of the retainer.
   Fig 2: Fitting Projections Of Grommet Into Holes Of Retainer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the retainer to the floor with the 2 bolts.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

6. Connect the transmission control cable to the shift lever retainer.
   Fig 3: Connecting Transmission Control Cable To Shift Lever Retainer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the end of the transmission control shift cable to the floor shift lever with the clip.
8. Connect the transmission select cable to the shift lever retainer.
   Fig 4: Connecting End Of Transmission Control Shift Cable To Floor Shift Lever

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

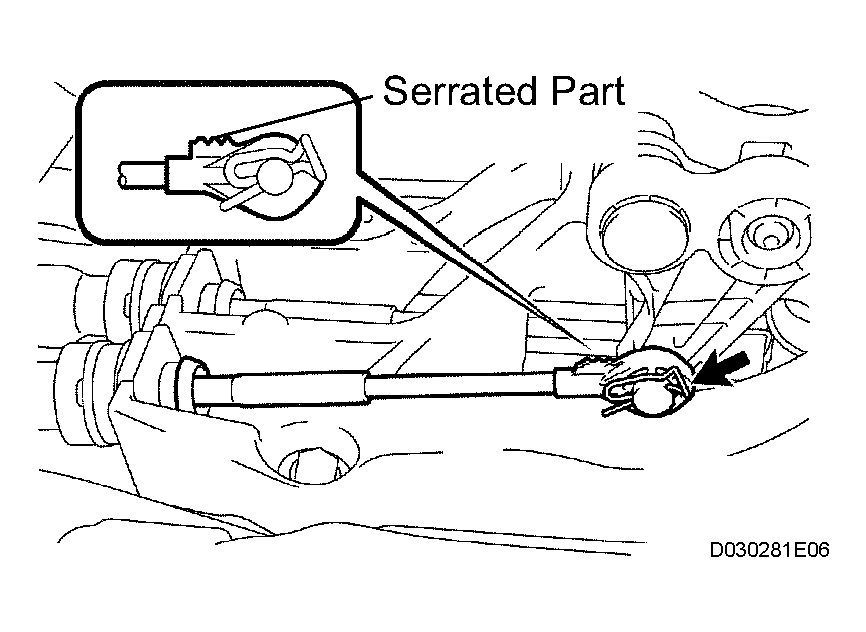

9. Connect the end of the transmission control select cable to the floor shift lever with the clip.
   • The serrated part of the select cable point should face upward when the select cable point is connected.
   • The clip should be inserted in the direction shown in the illustration.
     Fig 5: Installing Clip

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Connect the 2 cable ends to the transaxle with the 2 washers and 2 clips.
11. Install 2 new clips to the control cable bracket.
    Fig 6: Installing Clips To Control Cable Bracket

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

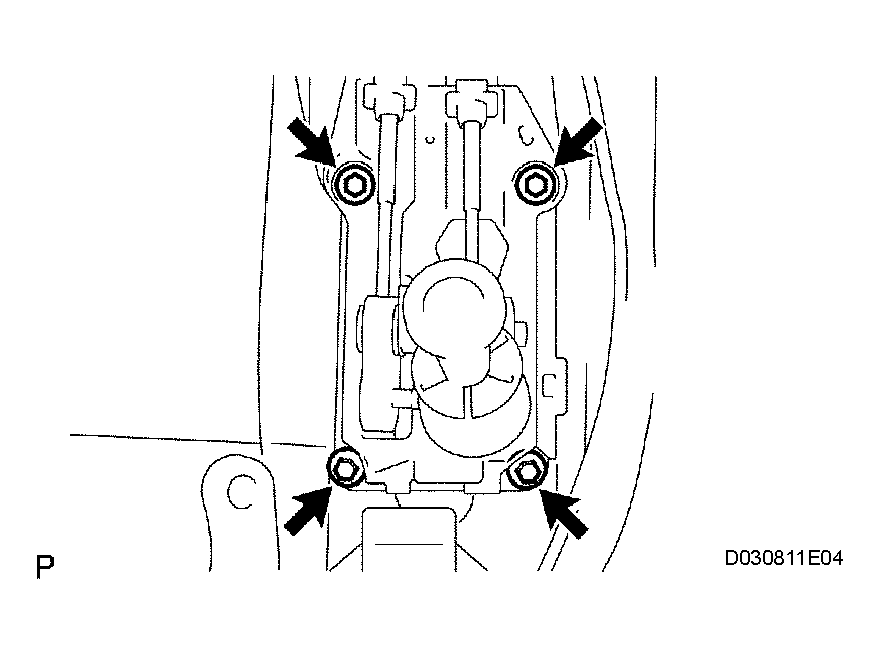

1. Install the floor shift lever with the 4 bolts.

   Torque: 12 N*m (120 kgf*cm, 9 ft.*lbf)

   Fig 7: Installing Floor Shift Lever

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

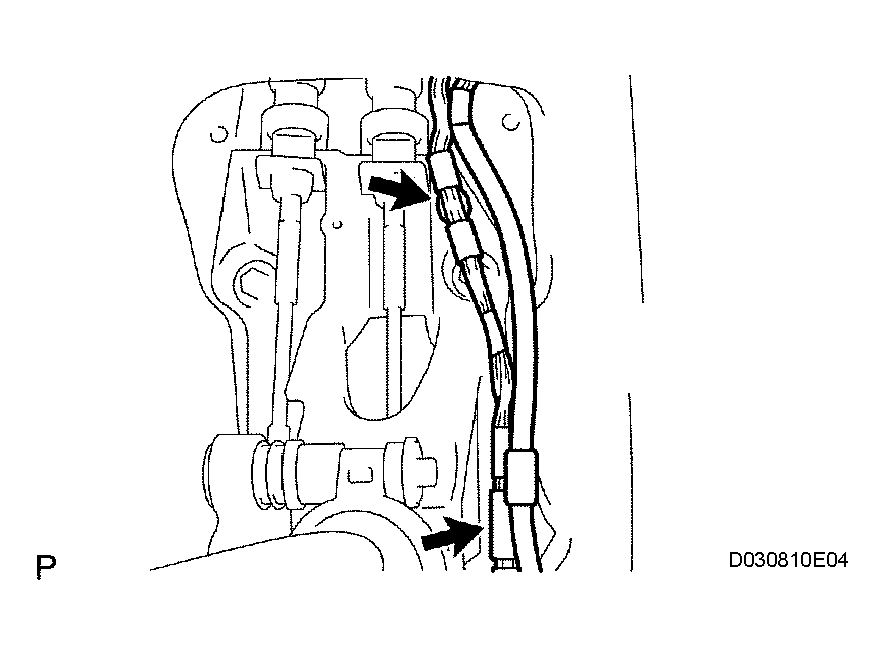

2. Connect the wire harness.

1. Install the rear console box (see INSTALLATION ).

1. Install the shift lever knob (see INSTALLATION ).

Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Fig 8: Connecting Wire Harness

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
