Power Window with Jam Protection: Notes

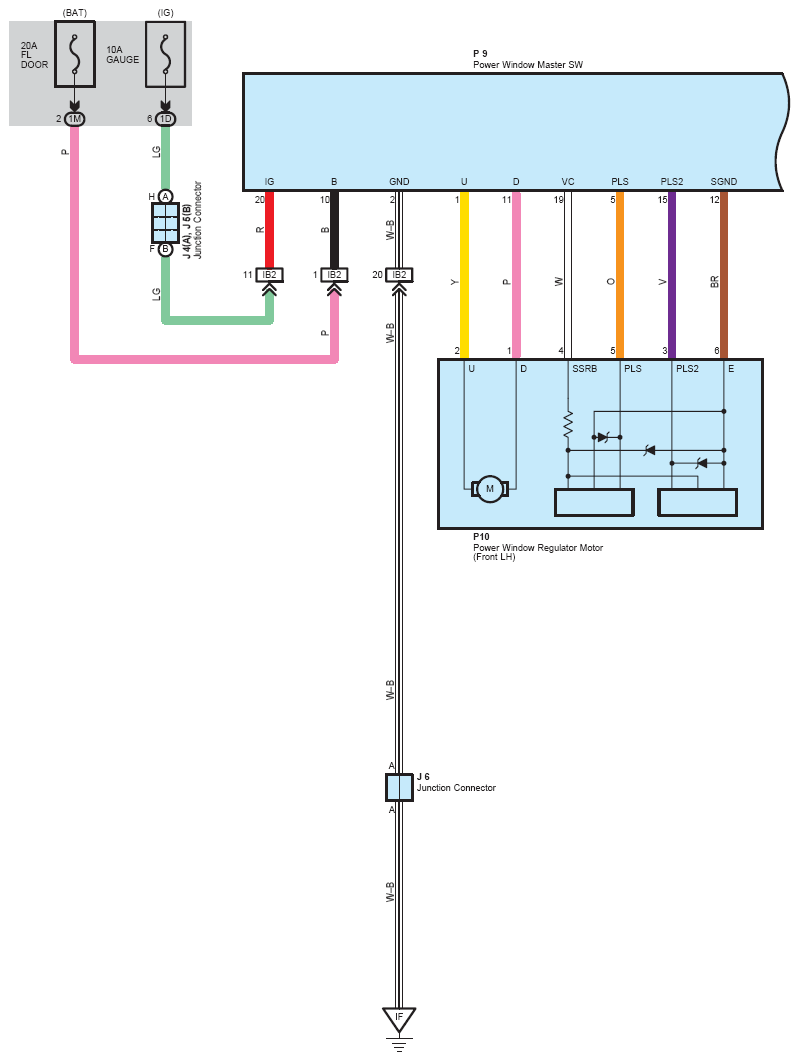

Fig 1: Power Window With Jam Protection System Wiring Diagram (1 Of 3)
G08759393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

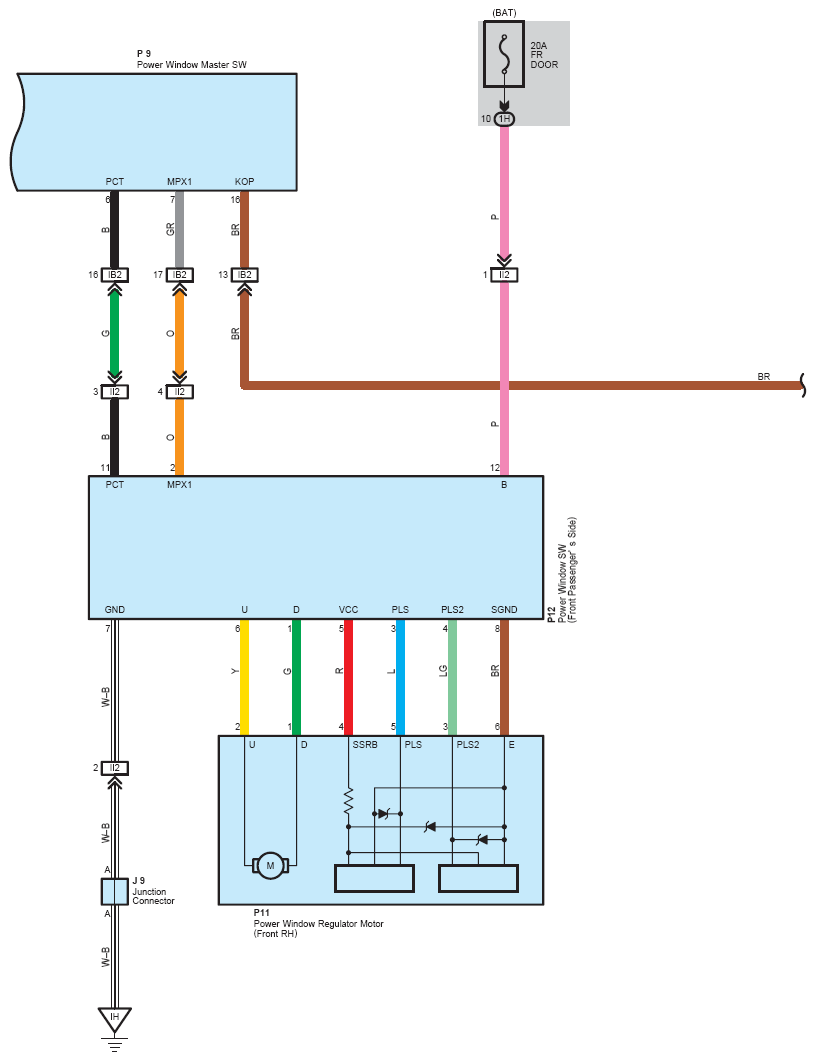

Fig 2: Power Window With Jam Protection System Wiring Diagram (2 Of 3)
G08759394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

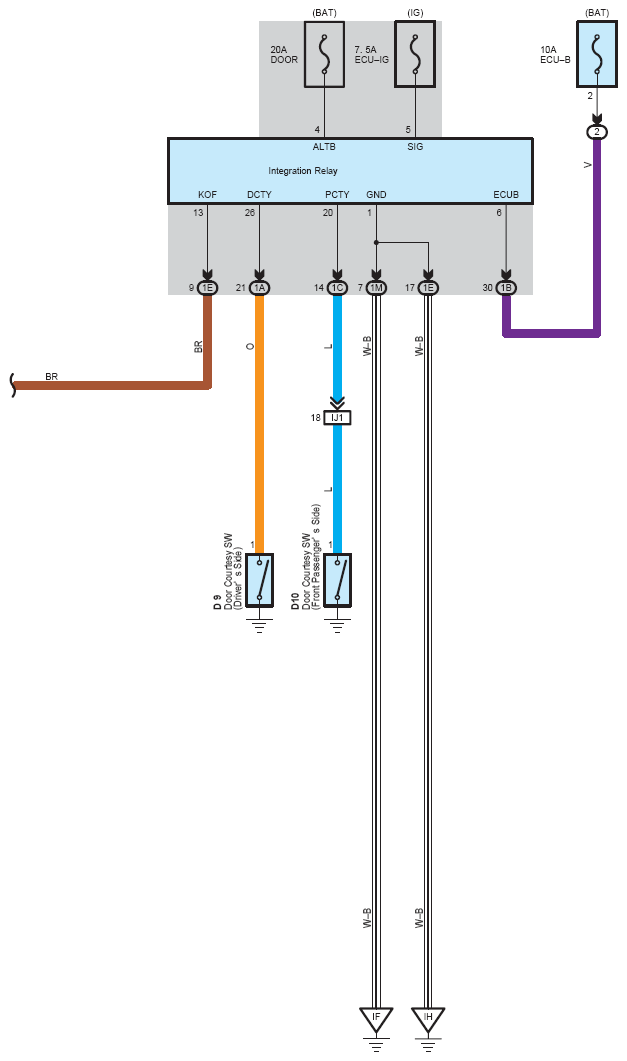

Fig 3: Power Window With Jam Protection System Wiring Diagram (3 Of 3)
G08759395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
