Engine Room Relay Block No. 2 Assembly Front Fender Apron RH

WARNING: This page is about a different car, the 2012 Scion xD. However, it is still accessible from the selected car via links, so may be relevant.

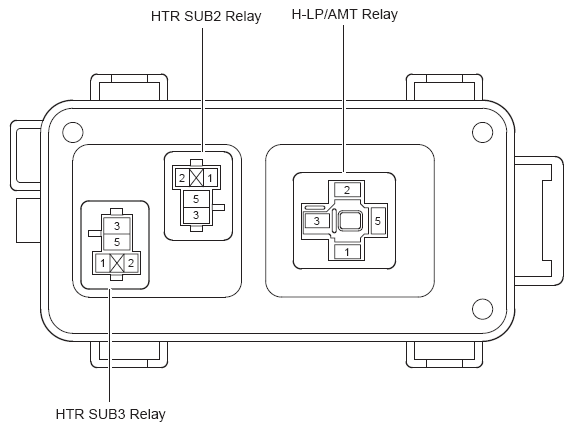

Fig 1: Engine Room R/B No. 2 Assembly Relays
G08761112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B NO. 2 RELAY IDENTIFICATION

RELAY DESCRIPTION
HTR SUB2 Relay
H-LP/AMT Relay
HTR SUB3 Relay
