Steering Linkage: Components

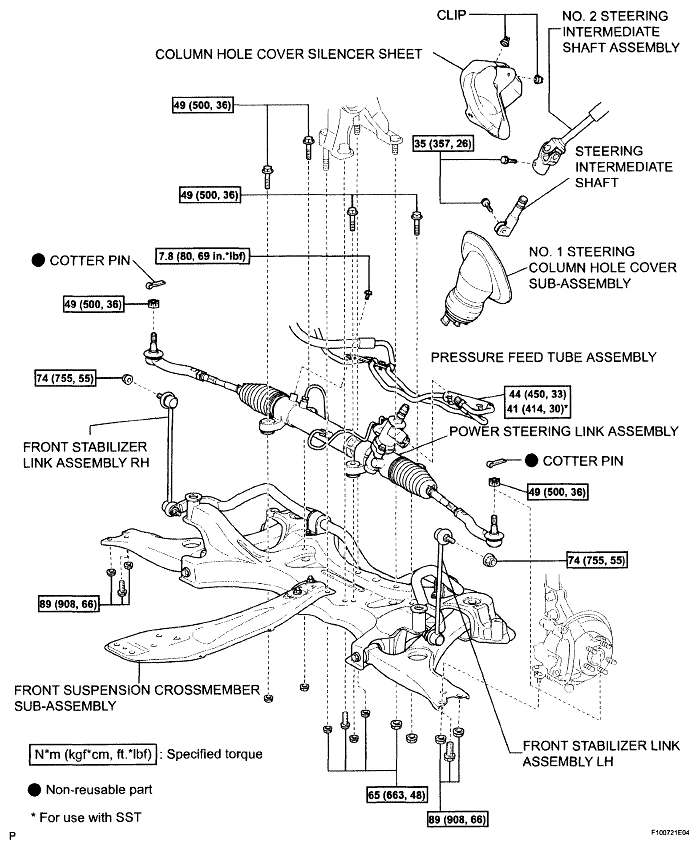

Fig 1: Identifying Steering Linkage Components With Specifications (1 Of 4)
G04868880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

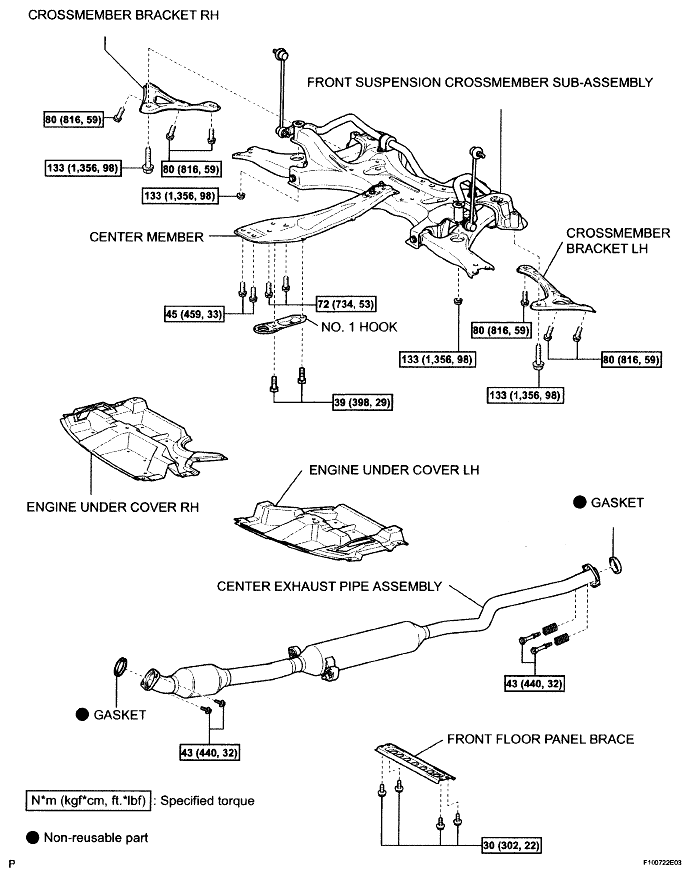

Fig 2: Identifying Steering Linkage Components With Specifications (2 Of 4)
G04868881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Steering Linkage Components With Specifications (3 Of 4)
G04868882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

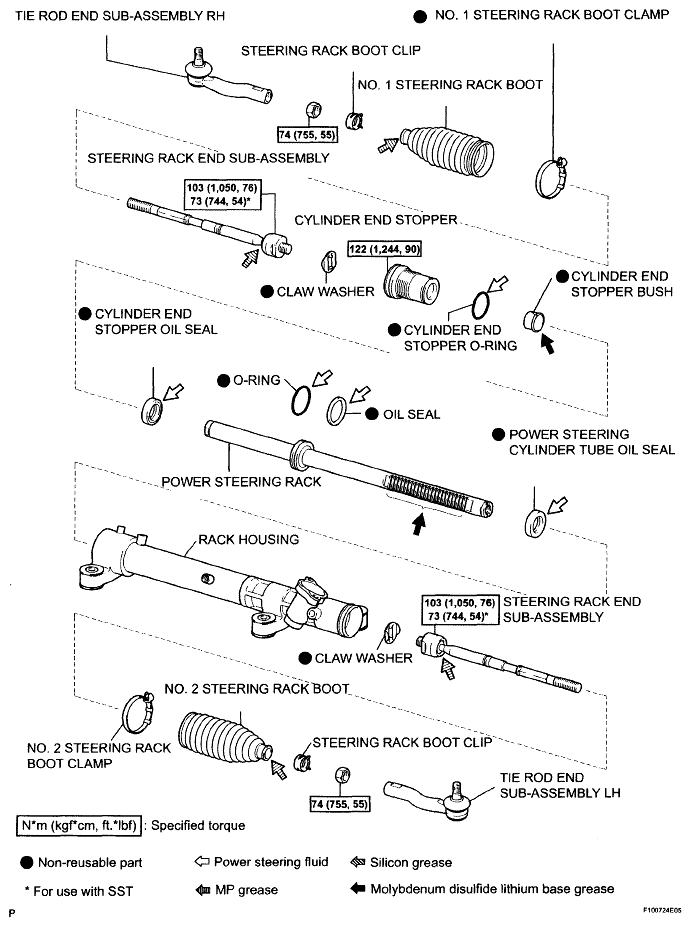

Fig 4: Identifying Steering Linkage Components With Specifications (4 Of 4)
G04868883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
