Inspection Procedure

1. Check that the power window manual UP/DOWN function operates normally.

   NG: OTHER PROBLEM

   OK: GO TO NEXT STEP

1. Turn the ignition switch ON.
2. Operate the power window regulator switch.
3. Check the blinking pattern of the light as shown in the illustration below.

   Result

   POWER WINDOW REGULATOR SWITCH ASSEMBLY RESULT REFERENCE (PASSENGER SIDE)



   Result	Proceed to
   Pattern (1) or (3) Is displayed	A
   Pattern (2) Is displayed	B
   Normal pattern Is displayed	C

   Fig 1: Identifying Auto Light (Passenger Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

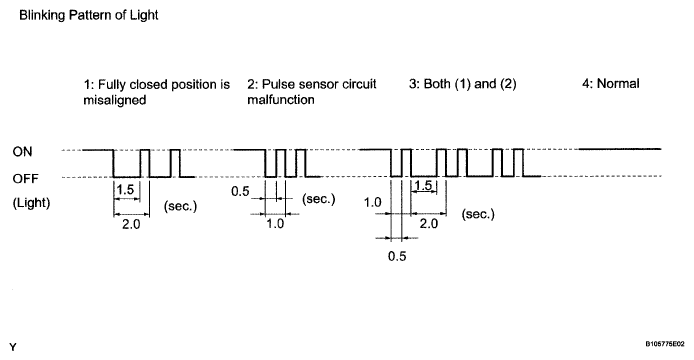

   Fig 2: Identifying Light Blinking Pattern (Passenger Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

B: Go to step   4

C: REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)

A: GO TO NEXT STEP

OK: END

NG: GO TO NEXT STEP

1. Disconnect the P12 regulator switch connector.
2. Disconnect the P11 power window motor connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   WIRE HARNESS STANDARD RESISTANCE SPECIFICATIONS



   Tester Connection	Specified Condition
   P12-S (VCC) - P11-4 (SSRB)	Below 1 Ω
   P12-3(PLS)-P11-5(PLS)	Below 1 Ω
   P12-4 (PLS2) - P11-3 (PLS2)	Below 1 Ω
   P12-8(SGND)-P11-6(E)	Below 1 Ω
   P12-5 (VCC) - Body ground	10 kΩ or higher
   P12-3 (PLS) - Body ground	10 kΩ or higher
   P12-4 (PLS2) - Body ground	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

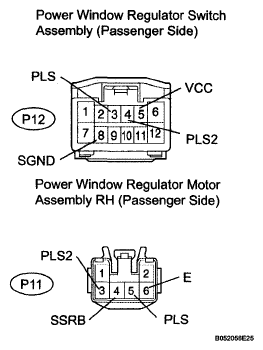

Fig 3: Identifying P12 Regulator Switch Connector And P11 Power Window Motor Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (PASSENGER SIDE)
