Power Windows do not Operate at All: Wiring Diagram

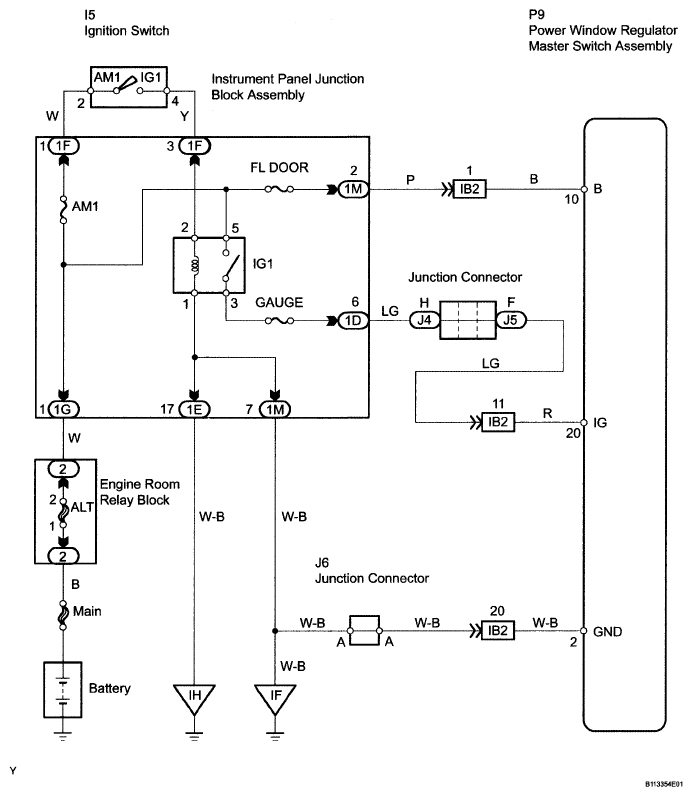

Fig 1: Identifying Power Windows Wiring Diagram
G04867348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
