Remote Up / Down Function does not Operate: Wiring Diagram

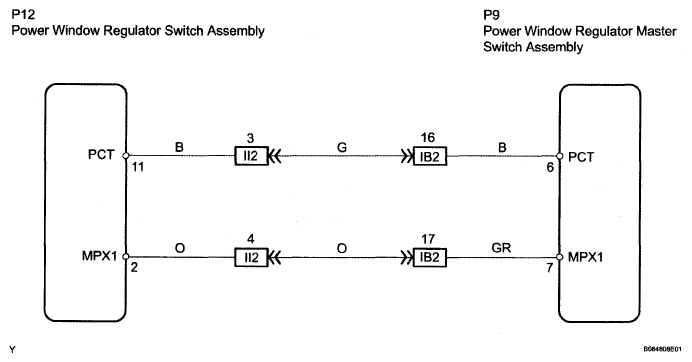

Fig 1: Identifying Remote Up / Down Function Wiring Diagram
G04867326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
