Inspection Procedure

NOTE:
  • When replacing the tire pressure warning ECU, read the IDs stored in the ECU using the intelligent tester and write them down before removal.
  • It is necessary to perform initialization (See INITIALIZATION  ) after registration (See REGISTRATION  ) of the transmitter IDs into the tire pressure warning ECU after the ECU and/or valve and transmitter have been replaced.
  1. CHECK FREQUENCY RECEIVING CONDITION
    1. Check if the vehicle is not located in areas such as described below:
      1. Facilities or devices that use similar radio frequencies are located in the vicinity of the vehicle.

        HINT:

        If the vehicle is located in areas described above, the tire pressure warning light may come on only in a particular area.

      2. Devices using similar radio frequencies are used in the vehicle.

        OK:

        Facilities, or devices that use similar radio frequencies are not located in the vicinity of the vehicle.

        HINT:

        Radio frequency may be interrupted due to surroundings or devices installed by the user.

    NG: CHECK IF ANY DEVICE IS INSTALLED BY USER

    OK: GO TO NEXT STEP

  2. IDENTIFY TRANSMITTER CORRESPONDING TO DTC
    1. Set the tire pressure to the appropriate specified values.

      Cold tire inflation pressure

      COLD TIRE INFLATION PRESSURE

      Tire size Front kPa (kgf/cm2 , psi) Rear kPa (kgf/cm2 , psi)
      215/45ZR17 220 (2.2, 32) 200 (2.0, 29)
      P205/55R16 220 (2.2, 32) 200 (2.0, 29)
    2. Make sure that the ignition switch is off.
    3. Connect the intelligent tester to the DLC3.
    4. Turn the ignition switch to the ON position.
    5. Select "TIREPRESS" by following the prompts displayed on the intelligent tester.

      TIRE PRESSURE:

      TIRE PRESSURE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      TIREPRESS1 ID1 tire inflation pressure/
      min.: -100 kPa (-1 kgf/cm2 , -14 psi),
      max.: 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If -100 kPa (-1 kgf/cm2 , -14 psi) is displayed, the data have not been received.
      TIREPRESS2 ID1 tire inflation pressure/
      min.: -100 kPa (-1 kgf/cm2 , -14 psi),
      max.: 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If -100 kPa (-1 kgf/cm2 , -14 psi) is displayed, the data have not been received.
      TIREPRESS3 ID1 tire inflation pressure/
      min.: -100 kPa (-1 kgf/cm2 , -14 psi),
      max.: 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If-100 kPa (-1 kgf/cm2 , -14 psi) is displayed, the data have not been received.
      TIREPRESS4 ID1 tire inflation pressure/
      min.: -100 kPa (-1 kgf/cm2 , -14 psi),
      max.: 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If -100 kPa (-1 kgf/cm2 , -14 psi) is displayed, the data have not been received.
    6. Rapidly reduce the tire pressure for each wheel at least 40 kPa (0.41 kg/cm2 , 5.8 psi) within 30 seconds.
    7. Check the DATA LIST.
      NOTE:
      • It takes about 2 or 3 minute to display the updated tire pressure data.
      • When "TIREPRESS" data has not changed, reset the tire pressure to the appropriate specified value and rotate the tire 90 to 270 degrees. Then rapidly release the tire pressure and recheck it.
      • Record the transmitter ID of which "TIREPRESS" data corresponds to each tire.
    8. After confirming that one of the "TIREPRESS" data for one tire (ID1 to ID4) has changed, repeat this procedure one by one. Identify the transmitter that corresponds to the DTC.

      Result

      RESULT REFERENCE

      Condition Proceed to
      One or more of transmitters abnormal A
      All normal B
      All abnormal C

    A: Go to step   4

    B: END

    C: GO TO NEXT STEP

  3. CHECK HARNESS AND CONNECTOR (ECU - RECEIVER)
    1. Disconnect the T11 ECU connector.
    2. Disconnect the T12 receiver connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      HARNESS AND CONNECTOR STANDARD RESISTANCE SPECIFICATIONS (ECU - RECEIVER)

      Tester Connection Condition Specified Condition
      T11-12(RDA)-T12-1 (RDA) Always Below 1 Ω
      T11-11(GND2)-T12-4 (GND)
      T11-6(RF5V)-T12-5 (+5V)
      T11-12 (RDA) -Body ground 10 kΩ or higher
      T11-11 (GND2)-Body ground
      T11-6(RF5V)-Body ground

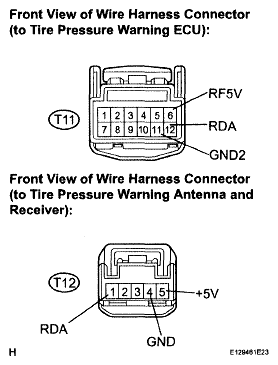

      4. Fig 1: Identifying T12 Receiver Connector And T11 ECU Connector
      G04868549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  4. INSPECT TIRE PRESSURE WARNING VALVE AND TRANSMITTER
    1. Make sure that the ignition switch is off.
    2. Connect the intelligent tester to the DLC3.
    3. Turn the ignition switch to the ON position.
    4. Select REGIT ID CODE by following the prompts displayed on the intelligent tester.

      TIRE PRESSURE:

      TIRE PRESSURE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      REGIT ID1 CODE Registered ID1 code/ min.: 0, max.: FFFFFF* The ID No. registered in the transmitter ID1 is displayed *: Displayed only when the ID No. is not registered.
      REGIT ID2 CODE Registered ID2 code/ min.: 0, max.: FFFFFF* The ID No. registered in the transmitter ID2 is displayed *: Displayed only when the ID No. is not registered.
      REGIT ID3 CODE Registered ID3 code/ min.: 0, max.: FFFFFF* The ID No. registered in the transmitter ID3 is displayed *: Displayed only when the ID No. is not registered.
      REGIT ID4 CODE Registered ID4 code/ min.: 0, max.: FFFFFF* The ID No. registered in the transmitter ID4 is displayed *: Displayed only when the ID No. is not registered.
    5. Check the ID number on the identified transmitter by removing it from the tire and wheel.

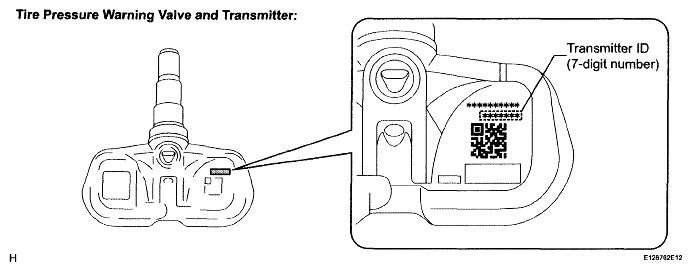

      Fig 2: Identifying Tire Warning Valve And Transmitter
      G04868525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Confirm that the ID number on the transmitter and recorded transmitter ID match.

      Result

      RESULT REFERENCE

      Result Proceed to
      Match A
      Do not match B

    B: Go to step   6

    A: GO TO NEXT STEP

  5. REPLACE TIRE PRESSURE WARNING VALVE AND TRANSMITTER
    1. Replace the tire pressure warning valve and transmitter (See TIRE PRESSURE WARNING VALVE AND TRANSMITTER  ).
  6. REGISTRATION OF TRANSMITTER ID
    1. Perform registration (See REGISTRATION  ).
  7. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION  ).
  8. READ VALUE ON DATA LIST
    1. Make sure that the ignition switch is off.
    2. Connect the intelligent tester to the DLC3.
    3. Turn the ignition switch to the ON position.
    4. Select "TIREPRESS" by following the prompts displayed on the intelligent tester.

      TIRE PRESSURE:

      TIRE PRESSURE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      TIREPRESS1 ID1 tire inflation pressure/
      min.: -100 kPa (-1 kgf/cm2 , -14 psi),
      max.: 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If-100 kPa (-1 kgf/cm2 , -14 psi) is displayed, the data have not been received.
      TIREPRESS2 ID1 tire inflation pressure/
      min.: -100 kPa (-1 kgf/cm2 , -14 psi),
      max.: 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If -100 kPa (-1 kgf/cm2 , -14 psi) is displayed, the data have not been received.
      TIREPRESS3 ID1 tire inflation pressure/
      min.: -100 kPa (-1 kgf/cm2 , -14 psi),
      max.: 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If-100 kPa (-1 kgf/cm2 , -14 psi) is displayed, the data have not been received.
      TIREPRESS4 ID1 tire inflation pressure/
      min.: -100 kPa (-1 kgf/cm2 , -14 psi),
      max.: 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If -100 kPa (-1 kgf/cm2 , -14 psi) is displayed, the data have not been received.

      HINT:

      It may take about 2 or 3 minute until the values are displayed.

      Result

      RESULT REFERENCE

      Condition Proceed to
      All tire pressure readings are equal to specified values. A
      Tire pressure values are not displayed. B

    A: END

    B: GO TO NEXT STEP

  9. REPLACE TIRE PRESSURE WARNING ANTENNA AND RECEIVER
    1. Replace the tire pressure warning antenna and receiver (See TIRE PRESSURE WARNING RECEIVER  ).
  10. READ VALUE ON DATA LIST
    1. Make sure that the ignition switch is off.
    2. Connect the intelligent tester to the DLC3.
    3. Turn the ignition switch to the ON position.
    4. Select "TIREPRESS" by following the prompts displayed on the intelligent tester.

      TIRE PRESSURE:

      TIRE PRESSURE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      TIREPRESS1 ID1 tire inflation pressure/
      min.: -100 kPa (-1 kgf/cm2 , -14 psi),
      max.: 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If-100 kPa (-1 kgf/cm2 , -14 psi) is displayed, the data have not been received.
      TIREPRESS2 ID1 tire inflation pressure/
      min.: -100 kPa (-1 kgf/cm2 , -14 psi),
      max.: 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If-100 kPa (-1 kgf/cm2 , -14 psi) is displayed, the data have not been received.
      TIREPRESS3 ID1 tire inflation pressure/
      min.: -100 kPa (-1 kgf/cm2 , -14 psi),
      max.: 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If -100 kPa (-1 kgf/cm2 , -14 psi) is displayed, the data have not been received.
      TIREPRESS4 ID1 tire inflation pressure/
      min.: -100 kPa (-1 kgf/cm2 , -14 psi),
      max.: 537.5 kPa (5.4 kgf/cm2 , 78 psi)      		 Actual tire inflation pressure If-100 kPa (-1 kgf/cm2 , -14 psi) is displayed, the data have not been received.

      HINT:

      It may take about 2 or 3 minute until the values are displayed.

      Result

      RESULT REFERENCE

      Condition Proceed to
      All tire pressure readings are equal to specified values. A
      Tire pressure values are not displayed. B

    B: REPLACE TIRE PRESSURE WARNING ECU (See  TIRE PRESSURE WARNING ECU  )

    A: END
