Inspection Procedure

1. Disconnect the E5 connector from the ECM
2. Turn the ignition switch on the ON position.
3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   WIRE HARNESS STANDARD VOLTAGE SPECIFICATIONS



   Tester Connection	Condition	Specified Condition
   E5-21 (D) - Body ground	Clutch pedal depressed	Below 1 V
   E5-21 (D) - Body ground	Clutch pedal released	10 to 14 V

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

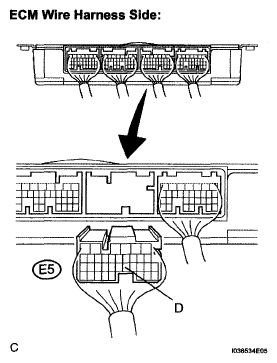

Fig 1: Identifying E5 ECM Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: GO TO NEXT STEP

1. Disconnect the C9 clutch switch connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   CLUTCH SWITCH ASSEMBLY STANDARD RESISTANCE SPECIFICATIONS



   Tester Connection	Condition	Specified Condition
   1-2	Switch pin free (Clutch pedal depressed)	10 kΩ or higher
   1-2	Switch pin pushed in (Clutch pedal depressed)	Below 1 Ω

NG: REPLACE CLUTCH SWITCH ASSEMBLY

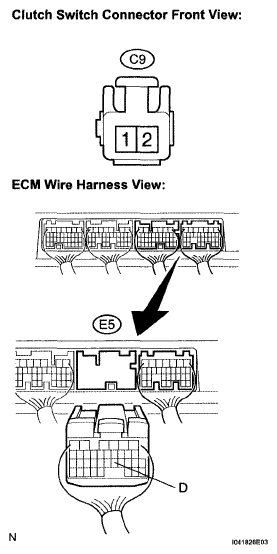

Fig 2: Inspecting Clutch Switch Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   WIRE HARNESS STANDARD RESISTANCE SPECIFICATIONS



   Tester Connection	Condition	Specified Condition
   C9-2 (D) - E5-21 (D)	Always	Below 1 Ω
   E5-21 (D) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

Fig 3: Identifying ECM E5 Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPAIR OR REPLACE HARNESS AND CONNECTOR (CLUTCH SWITCH - BATTERY)
