Fuel Lid Lock Control: Components

Fig 1: Identifying Fuel Lid Lock Control Components With Specifications (1 Of 2)
G04867808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

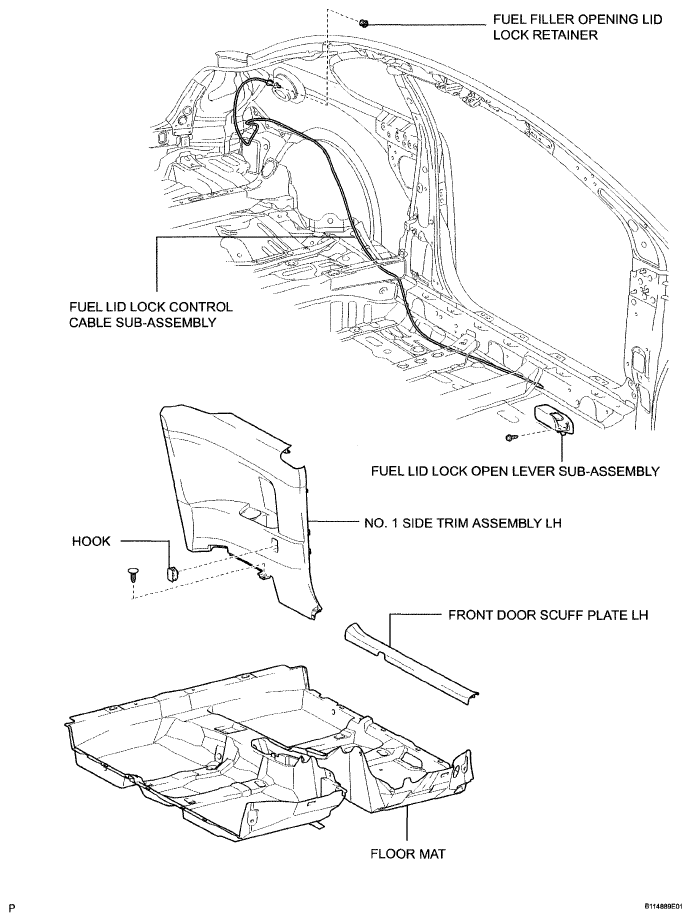

Fig 2: Identifying Fuel Lid Lock Control Components With Specifications (2 Of 2)
G04867809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
