Fuel Lid Lock Control: Installation

  1. INSTALL FUEL FILLER OPENING LID LOCK RETAINER
    1. Install the lock retainer as shown in the illustration.
      Fig 1: Installing Lock Retainer
      G04867814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
    1. Install the cable and turn it clockwise, as shown in the illustration.
      Fig 2: Installing Fuel Lid Lock Control Cable
      G04867815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the cable to the clamps as shown in the illustration.

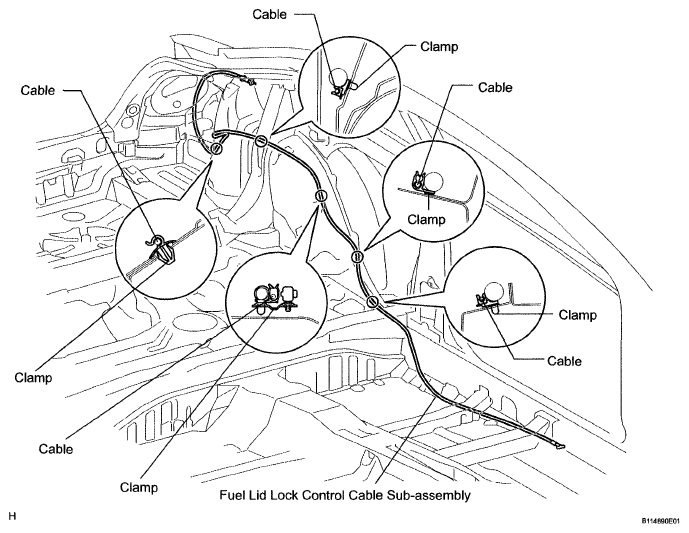

      Fig 3: Identifying Cable Clamps Location
      G04867811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the floor mat.
  3. INSTALL NO. 1 SIDE TRIM ASSEMBLY LH (See  INSTALLATION  )
  4. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
  5. INSTALL REAR SEATBACK ASSEMBLY LH (See  INSTALLATION  )
  6. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION  )
  7. INSTALL REAR NO. 1 FLOOR BOARD (See  INSTALLATION  )
  8. INSTALL NO. 1 DECK BOARD (See  INSTALLATION  )
  9. INSTALL DECK BOARD SUB-ASSEMBLY
  10. INSTALL TONNEAU COVER ASSEMBLY
  11. INSTALL FRONT SEAT ASSEMBLY LH
    1. Install the front seat (see INSTALLATION ).
  12. INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY
    1. Install the cable.
    2. Install the cover in the direction indicated by arrow mark.
    3. Install the screw.
      Fig 4: Locating Cover
      G04867817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
