Driver Side Power Window Does Not Operate With Power Window Master Switch

Driver Side Power Window does not Operate with Power Window Master Switch

DESCRIPTION
If the manual UP/DOWN function does not operate, a malfunction may be present in the power window regulator motor, the power window regulator master switch or the wire harness.

WIRING DIAGRAM

Wiring Diagram:






INSPECTION PROCEDURE

Step 1:

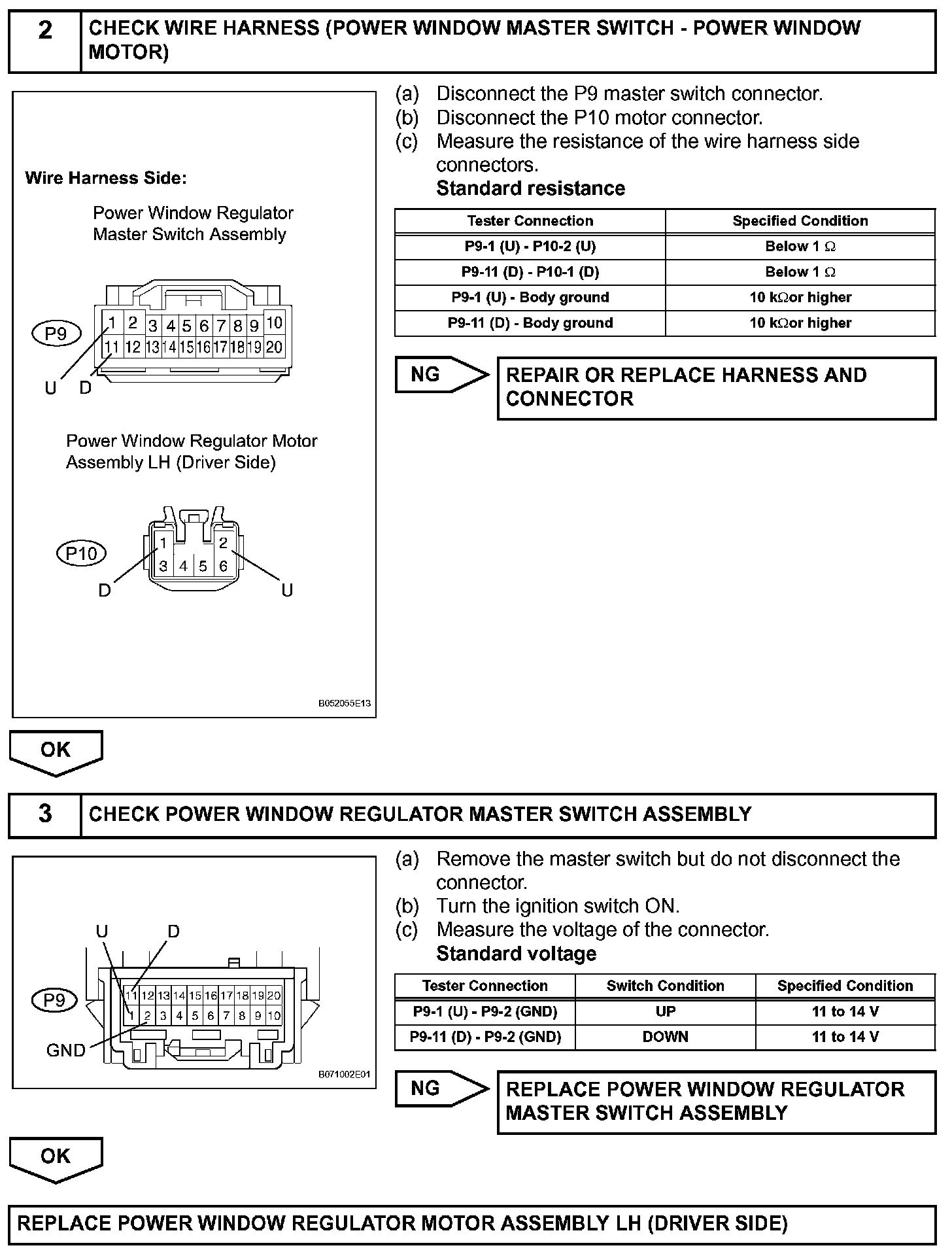

Step 2 - 3:
