Body & Frame
>>
Windows
>>
Windshield/WINDOWGLASS
>>
POWER WINDOW CONTROL SYSTEM (w/o Jam Protection Function)
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

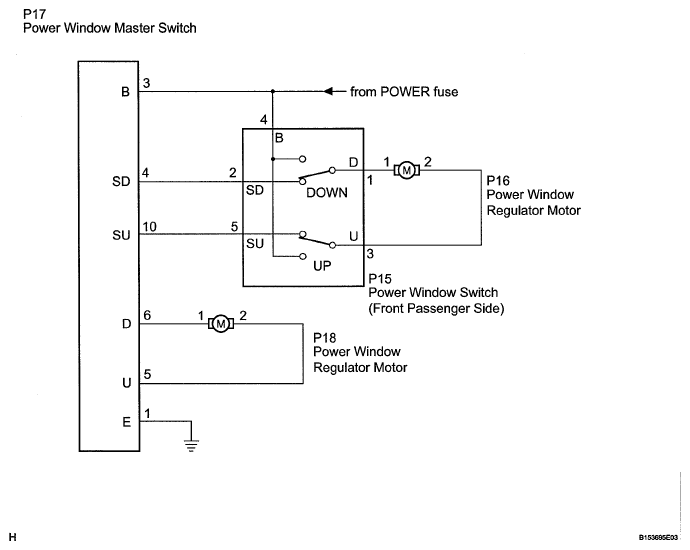

Fig 1: Power Window Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
