Removal

2AZ-FE ENGINE CONTROL SYSTEM: ECM: REMOVAL

ECM: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE GLOVE COMPARTMENT DOOR Removal
3. REMOVE ECM

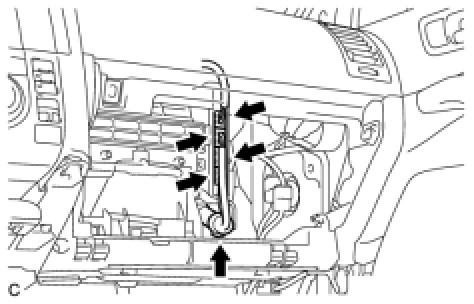

(a) Disconnect the wire harness clamp.
(b) Disconnect the 4 ECM connectors.

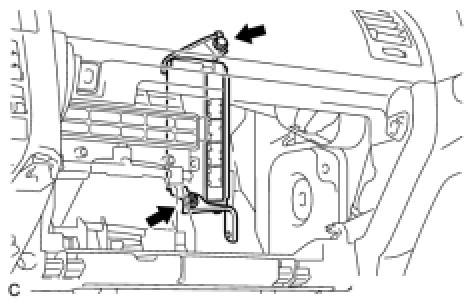

(c) Remove the bolt, screw and ECM.
