Keyless Entry Module: Testing and Inspection

DOOR LOCK: DOOR CONTROL RECEIVER: ON-VEHICLE INSPECTION

DOOR LOCK: DOOR CONTROL RECEIVER: ON-VEHICLE INSPECTION

1. CHECK DOOR CONTROL RECEIVER





(a) Disconnect the D8 receiver connector.

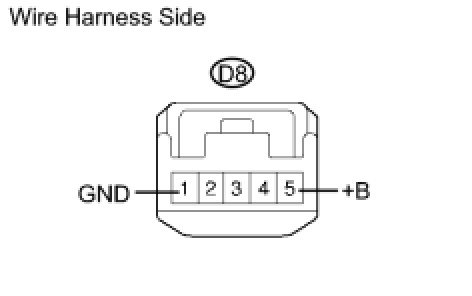

(b) Measure the voltage and resistance of the wire harness side connector.
Standard resistance:





Standard voltage:





If the result is not as specified, the receiver may have a malfunction.

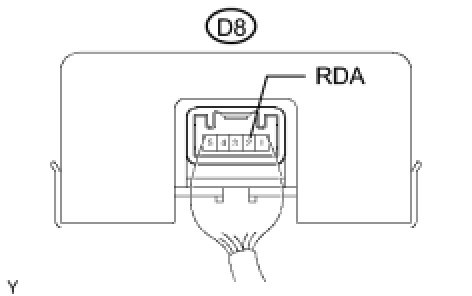

(c) Reconnect the D8 receiver connector.





(d) Measure the voltage of the connector.
Standard voltage:





If the result is not as specified, the receiver may have a malfunction.
