Torque Specifications

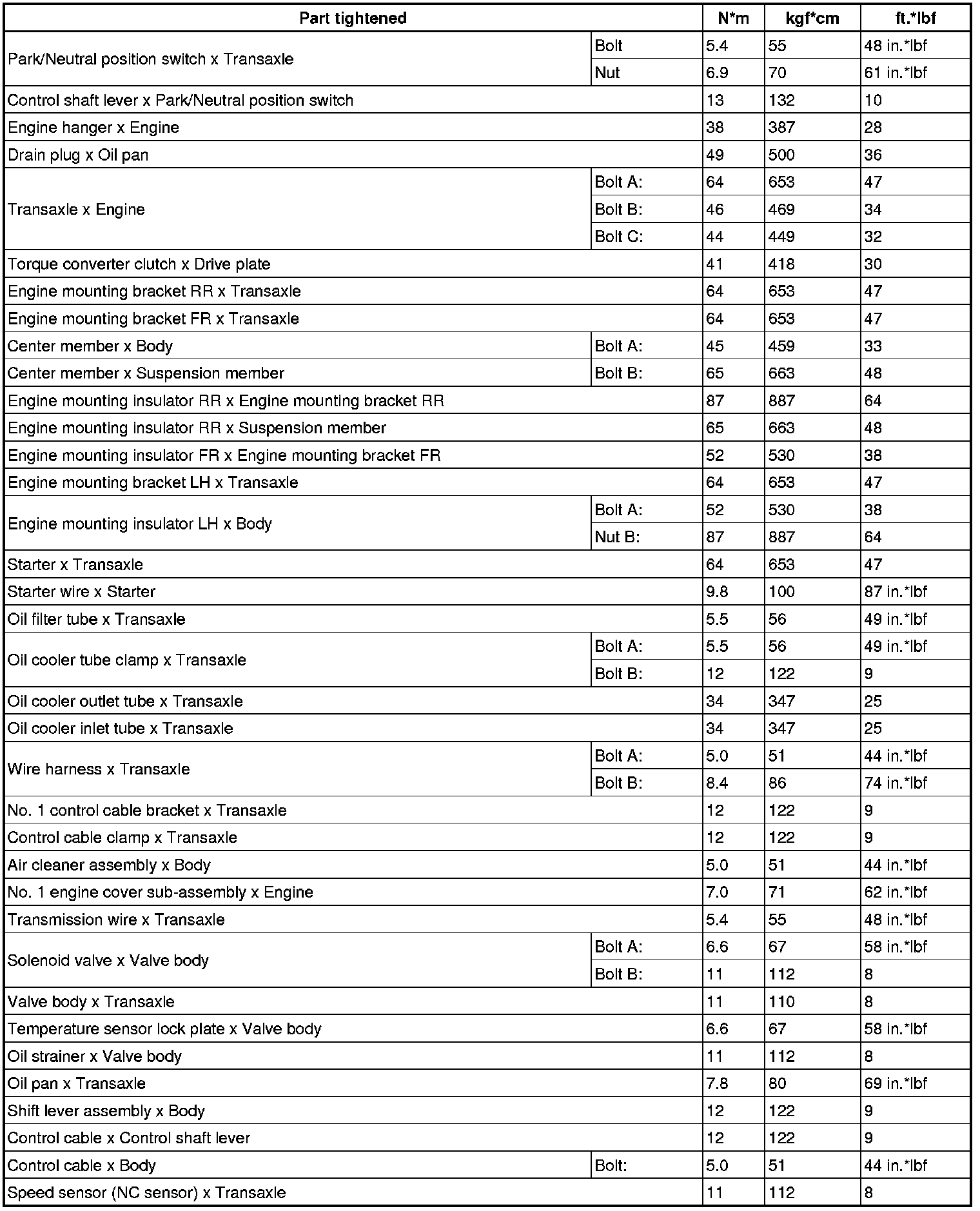

SERVICE SPECIFICATIONS: U241E AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS









DRIVE PLATE SUB-ASSEMBLY

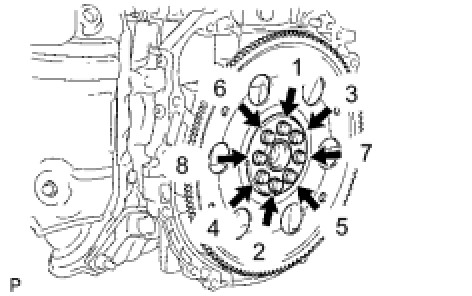

Using several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.

Torque: 98 Nm (1,000 kgf-cm, 72 ft-lbf)
