Manual Transaxle Assembly: Components

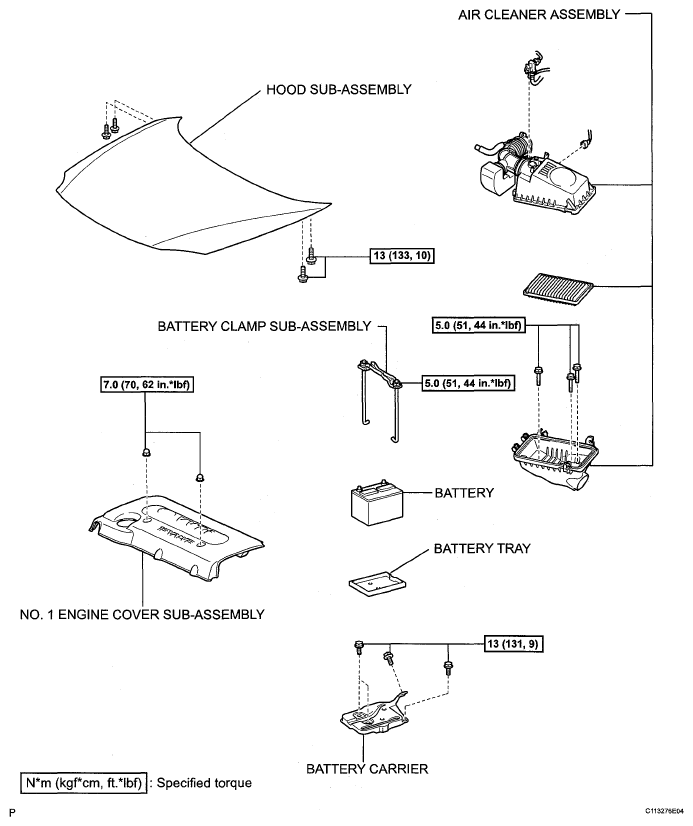

Fig 1: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (1 Of 5)
G05539595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

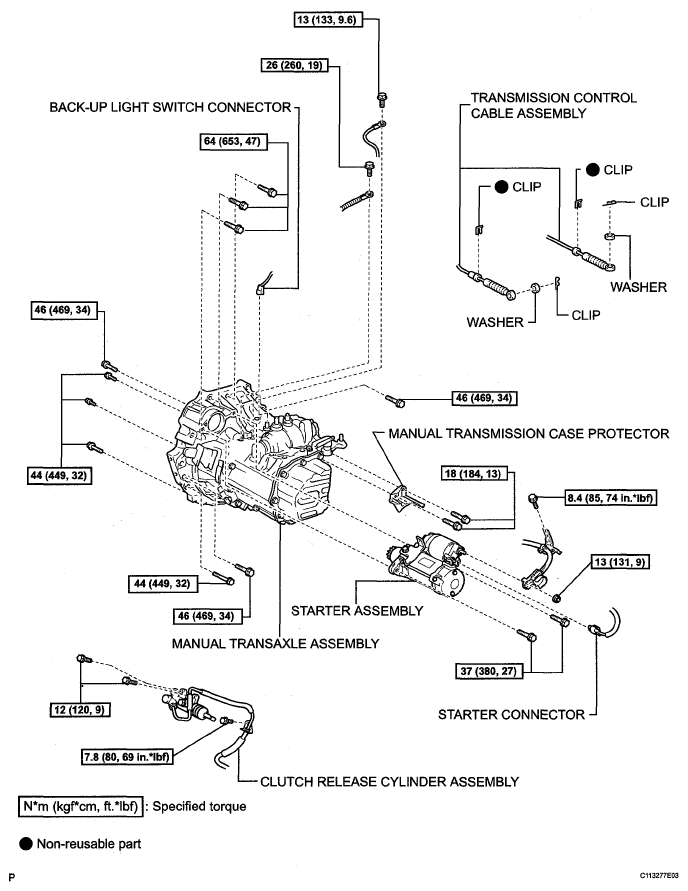

Fig 2: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (2 Of 5)
G05539596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

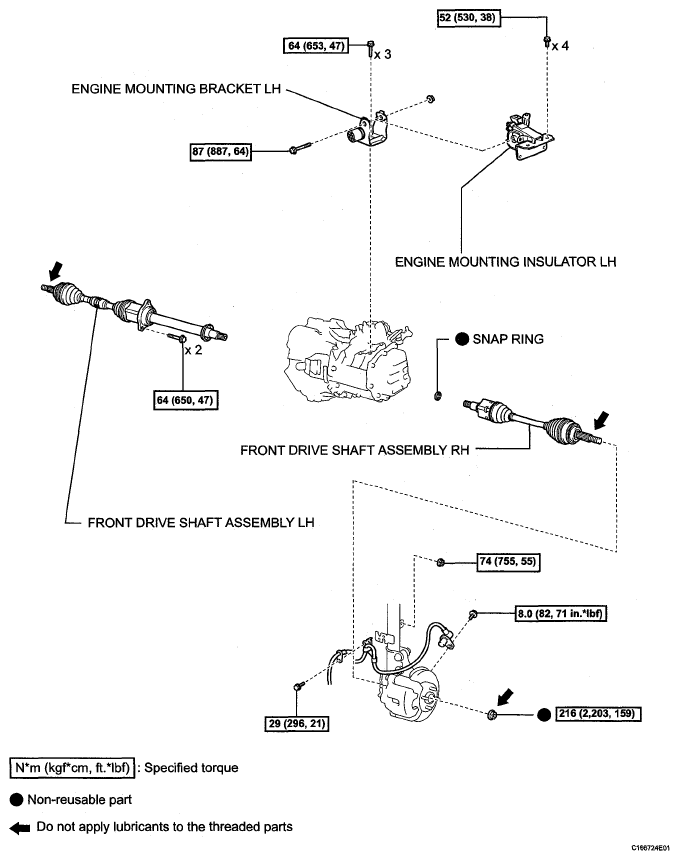

Fig 3: Manual Transaxle Assembly Replacement Replacement Components With Torque Specifications (3 Of 5)
G05539597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (4 Of 5)
G05539598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

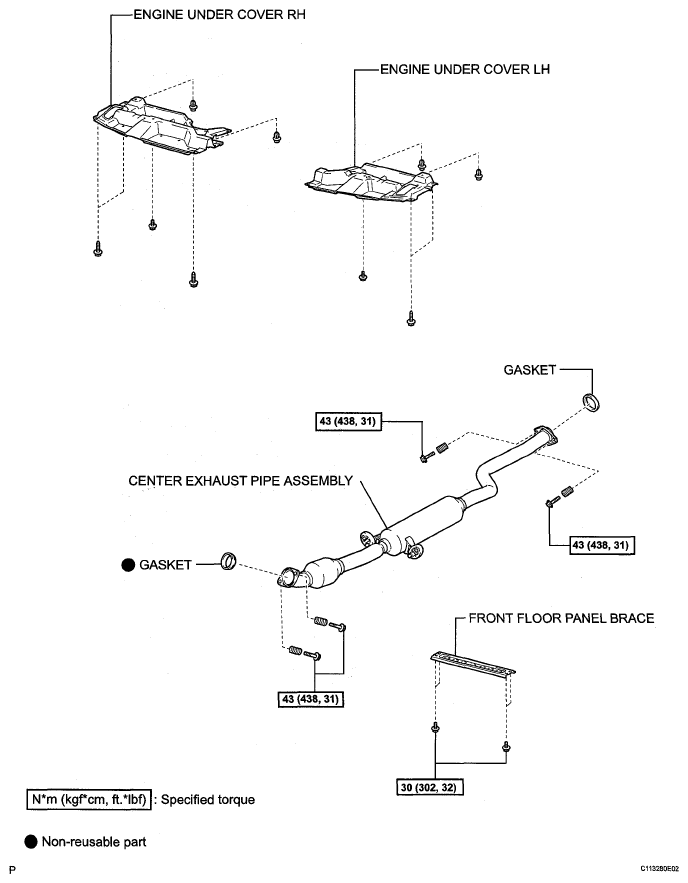

Fig 5: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (5 Of 5)
G05539599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
