DTC B1623/81 Side Airbag Sensor Assembly RH Initialization Incomplete; DTC B1628/82 Side Airbag Sensor Assembly LH Initialization Incomplete; DTC B1643/81 Side Satellite Sensor Bus RH Initialization Incomplete; DTC B1648/82 Side Satellite Sensor Bus LH Initialization Incomplete: Wiring Diagram

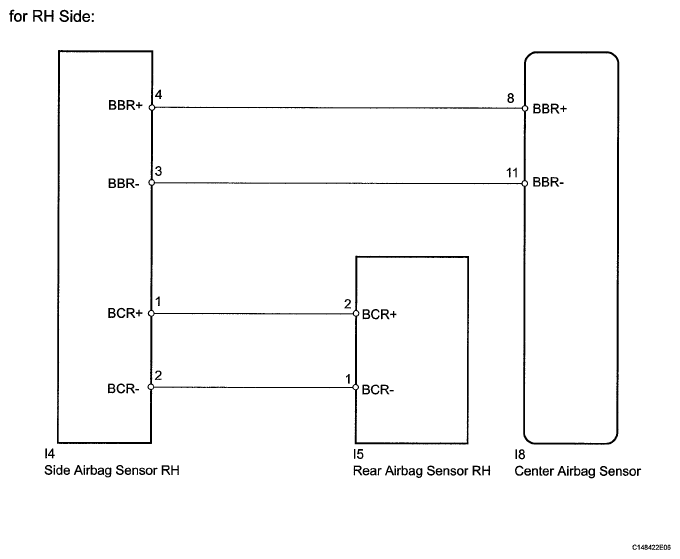

Fig 1: Side Airbag Sensor Assembly RH Side - Wiring Diagram
G05390230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

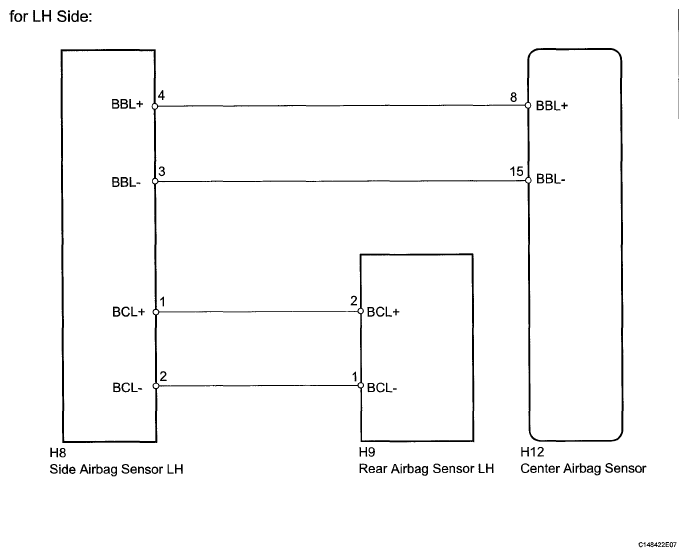

Fig 2: Side Airbag Sensor LH Side - Wiring Diagram
G05390231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
