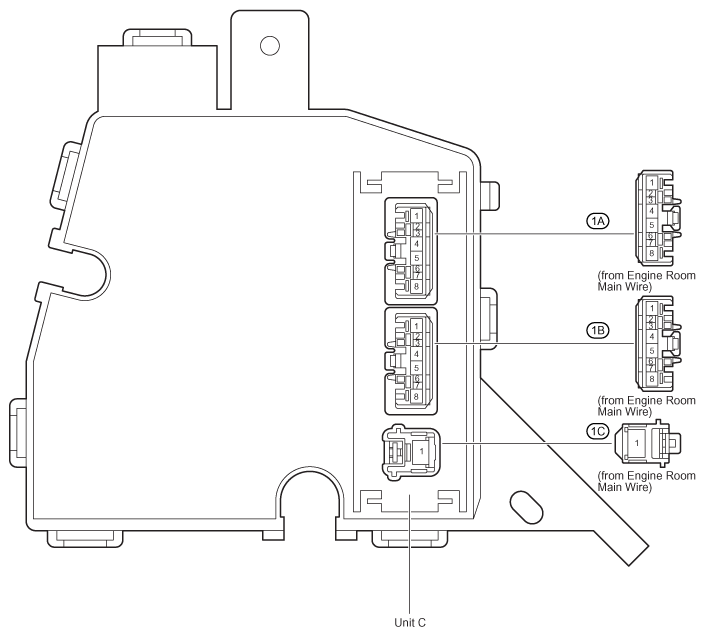

Engine Room Relay Block Assembly And Engine Room Junction Block Assembly

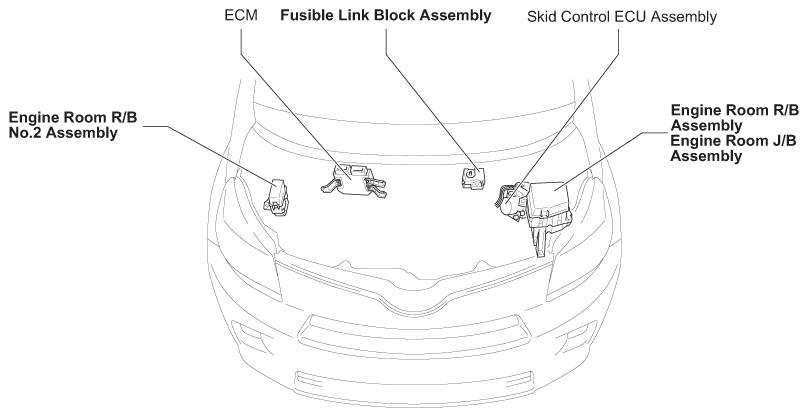

Front Fender Apron LH (See Figure)

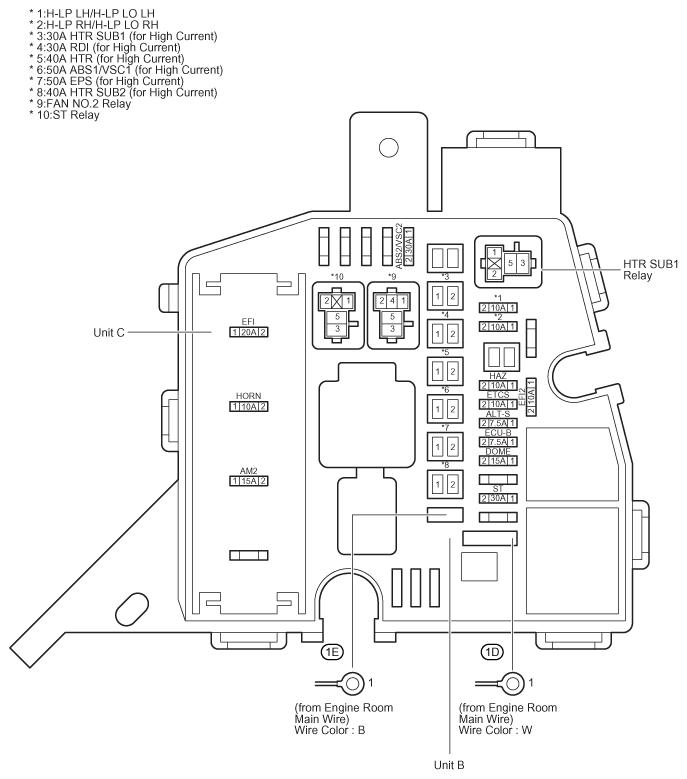

ENGINE ROOM R/B AND J/B RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| *9 | Fan No.2 Relay |
| *10 | ST Relay |
| - | HTR SUB1 Relay |
ENGINE ROOM R/B AND J/B FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | ALT-S | Charging |
| 7.5A | ECU-B | ABS (w/ VSC), TRAC and VSC |
| ABS (w/o VSC) | ||
| Back Door Opener | ||
| Combination Meter | ||
| Cruise Control | ||
| Door Lock Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| EPS | ||
| Headlight | ||
| Interior Light | ||
| Key Reminder and Light Reminder | ||
| Power Window | ||
| Seat Belt Warning | ||
| SRS | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control | ||
| 10A | EFI2 | Engine Control |
| 10A | ETCS | Cruise Control |
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| 10A | HAZ | Turn Signal and Hazard Warning Light |
| 10A | H-LP LH/H-LP LO LH | Headlight |
| Wireless Door Lock Control | ||
| 10A | H-LP RH/H-LP LO RH | Headlight |
| 10A | HORN | Horn |
| Wireless Door Lock Control | ||
| 15A | AM2 | Engine Control |
| Ignition | ||
| Starting | ||
| 15A | DOME | Audio System |
| Clock | ||
| Interior Light | ||
| Starting | ||
| Wireless Door Lock Control | ||
| 20A | EFI | Cruise Control |
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| 30A | ABS2/VSC2 | ABS (w/ VSC), TRAC and VSC |
| ABS (w/o VSC) | ||
| 30A | HTR SUB1 | Air Conditioning |
| 30A | RDI | Cooling Fan |
| 30A | ST | Starting |
| 40A | HTR | Air Conditioning |
| 40A | HTR SUB2 | Air Conditioning |
| 50A | ABS1/VSC1 | ABS (w/ VSC), TRAC and VSC |
| ABS (w/o VSC) | ||
| 50A | EPS | EPS |
