Instrument Panel Junction Block Assembly Inner Circuit

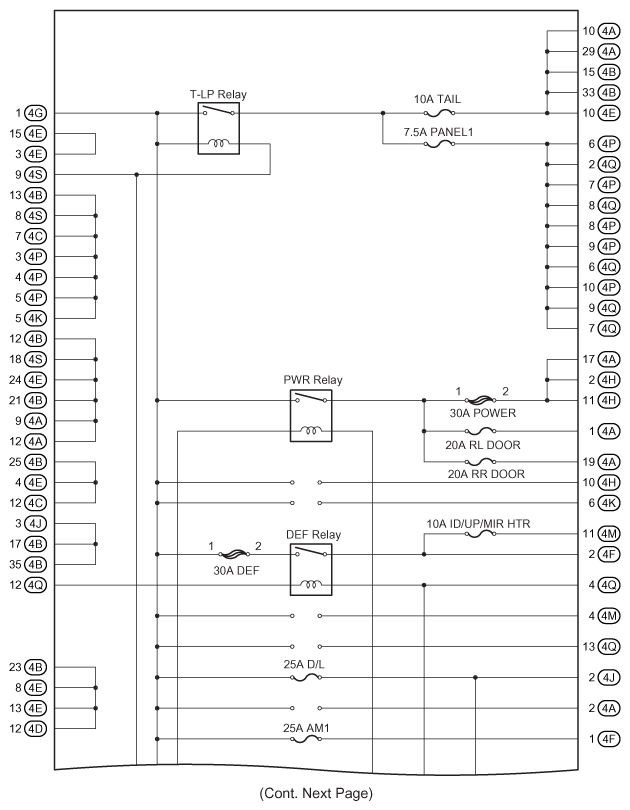

Fig 1: Instrument Panel J/B Inner Circuit Diagram (1 Of 4) With Relays
G07618305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
T-LP Relay
PWR Relay
DEF Relay

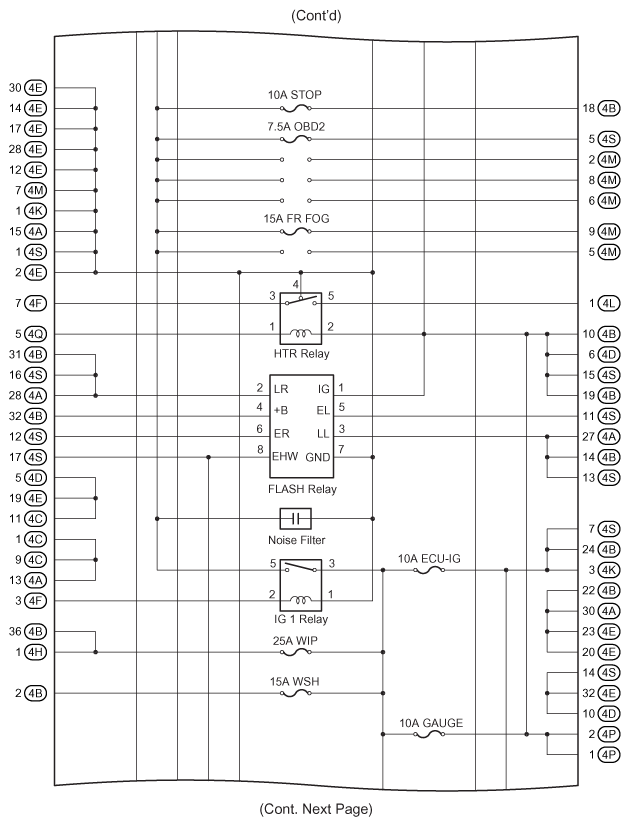

Fig 2: Instrument Panel J/B Inner Circuit Diagram (2 Of 4)
G07618306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

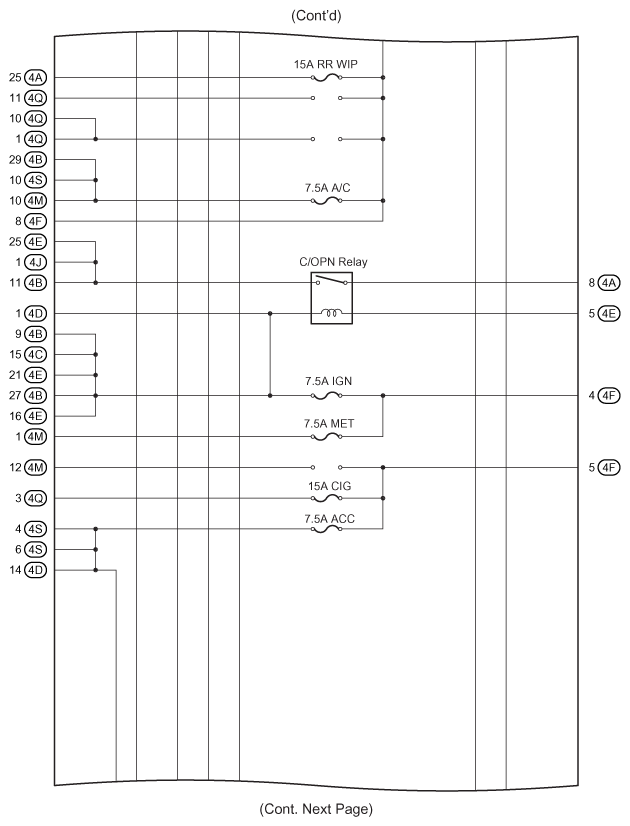

Fig 3: Instrument Panel J/B Inner Circuit Diagram (3 Of 4) With Relays
G07618307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
C/OPN Relay

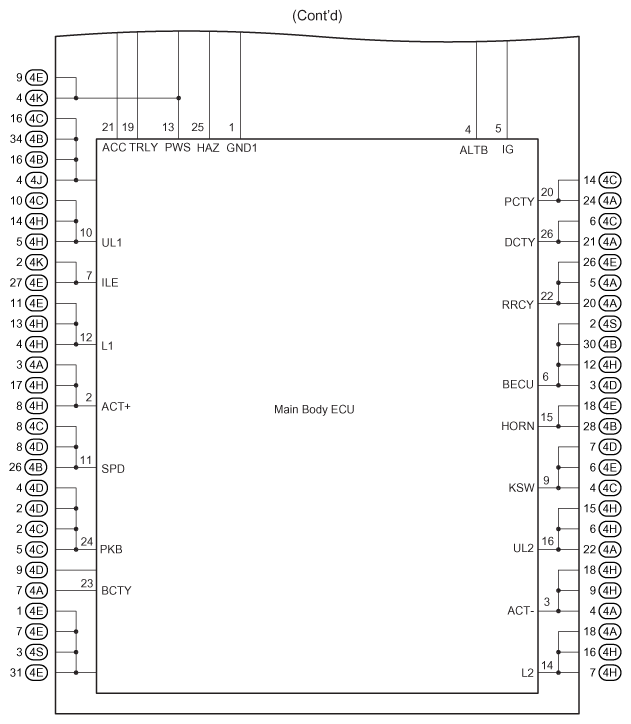

Fig 4: Instrument Panel J/B Inner Circuit Diagram (4 Of 4)
G07618308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
