Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Procedure
- CHECK AUTO UP/DOWN FUNCTION (PASSENGER SIDE)
- Check that the power window AUTO UP/DOWN function operates normally.
OK → REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)
NG: Go to next step
- INSPECT FUSE (FR DOOR)
- Disconnect the FR DOOR fuse from the instrument panel junction block.
- Measure the resistance of the fuse.
Standard resistance
Below 1 Ω
NG → REPLACE FUSE
OK: Go to next step

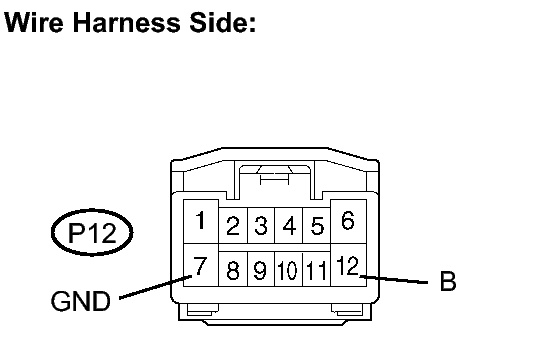

- CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE) - BATTERY AND BODY GROUND)
- Disconnect the P12 regulator switch connector.
- Measure the voltage and resistance of the wire harness side connector.
Standard voltage
Tester Connection Specified Condition P12-12 (B) - Body ground 11 to 14 V Standard resistance
Tester Connection Specified Condition P12-7 (GND) - Body ground Below 1 Ω
NG → REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step

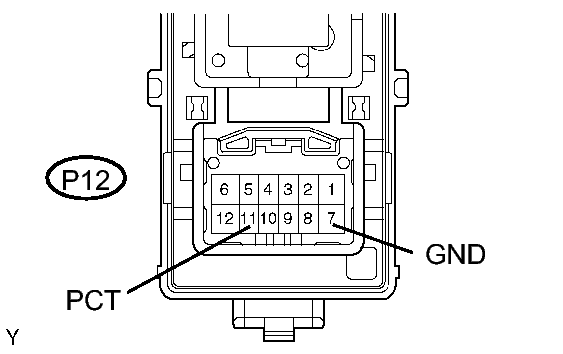

- CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY (WINDOW LOCK SWITCH SIGNAL)
- Remove the regulator switch but do not disconnect the connector.
- Turn the ignition switch ON.
- Measure the voltage of the connector.
Standard voltage
Tester Connection Condition Specified Condition P12-11 (PCT) - P11-7 (GND) Window LOCK switch OFF (Normal) 11 to 14 V P12-11 (PCT) - P11-7 (GND) Window LOCK switch ON (Lock) Below 1 V
OK → See step 6
NG: Go to next step

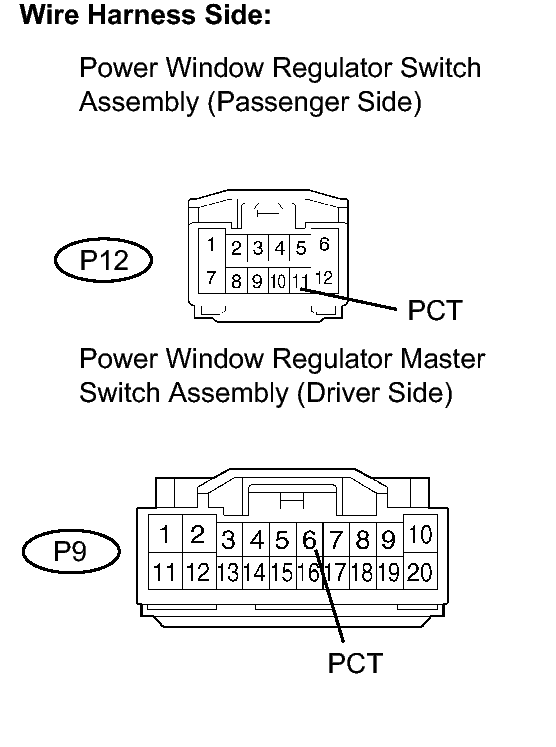

- CHECK WIRE HARNESS (POWER WINDOW REGULATOR SWITCH ASSEMBLY - POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY)
- Disconnect the P12 regulator switch connector.
- Disconnect the P9 master switch connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
Tester Connection Specified Condition P12-11 (PCT) - P9-6 (PCT) Below 1 Ω P12-11 (PCT) - Body ground 10 kΩor higher
NG → REPAIR OR REPLACE HARNESS AND CONNECTOR
OK → REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

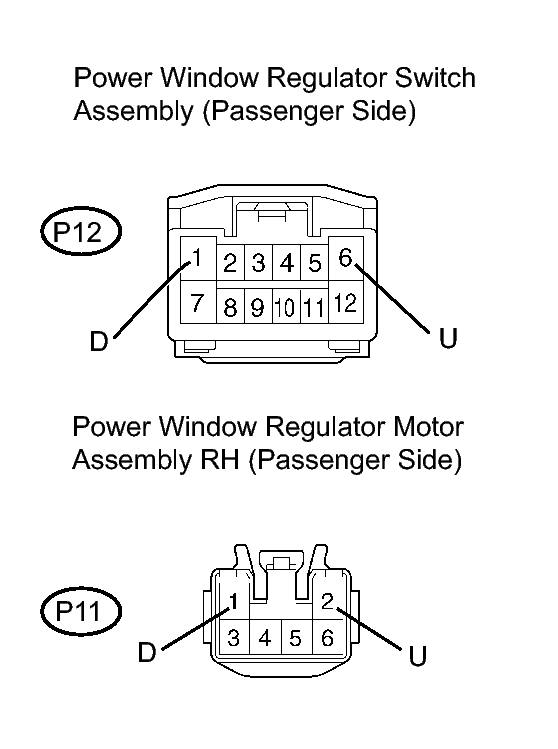

- CHECK WIRE HARNESS (REGULATOR SWITCH ASSEMBLY - POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)
- Disconnect the P12 regulator switch connector.
- Disconnect the P11 power window motor connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
Tester Connection Specified Condition P12-1 (D) - P11-1 (D) Below 1 Ω P12-6 (U) - P11-2 (U) Below 1 Ω P12-1 (D) - Body ground 10 kΩor higher P12-6 (U) - Body ground 10 kΩor higher
NG → REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step

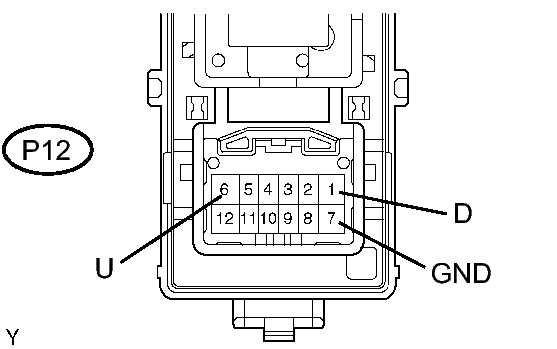

- CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)
- Remove the regulator switch but do not disconnect the connector.
- Turn the ignition switch ON.
- Measure the voltage of the connector.
Standard voltage
Tester Connection Condition Specified Condition P12-6 (U) - P12-7 (GND) UP 11 to 14 V P12-1 (D) - P12-7 (GND) DOWN 11 to 14 V
NG → REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)
OK → REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (PASSENGER SIDE)
