Remote Up / Down Function does not Operate: Procedure

1. Turn the window lock switch OFF and operate the passenger side power window switch on the power window regulator master switch. Check that the remote UP/DOWN function operates normally.

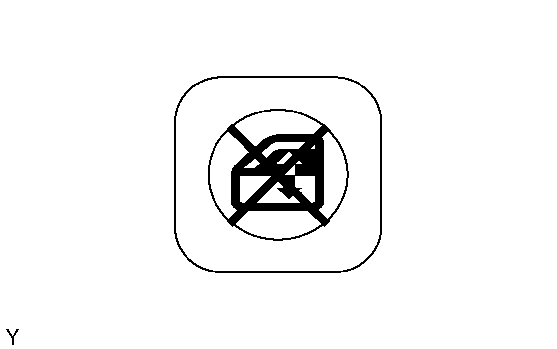

   Fig 1: Identifying Power Window Regulator Master Switch (Window Lock Switch)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Remote UP/DOWN function operates normally.

OK → END

NG: Go to next step

1. Check that the power window can be operated with the power window regulator switch.

   OK

   Manual UP/DOWN function operates normally.

NG → GO TO PROBLEM SYMPTOMS TABLE

OK: Go to next step

1. Check that the power window can be operated with the power window regulator switch.

   OK

   AUTO UP/DOWN function operates normally.

NG → GO TO PROBLEM SYMPTOMS TABLE

OK: Go to next step

1. Disconnect the P12 regulator switch connector.

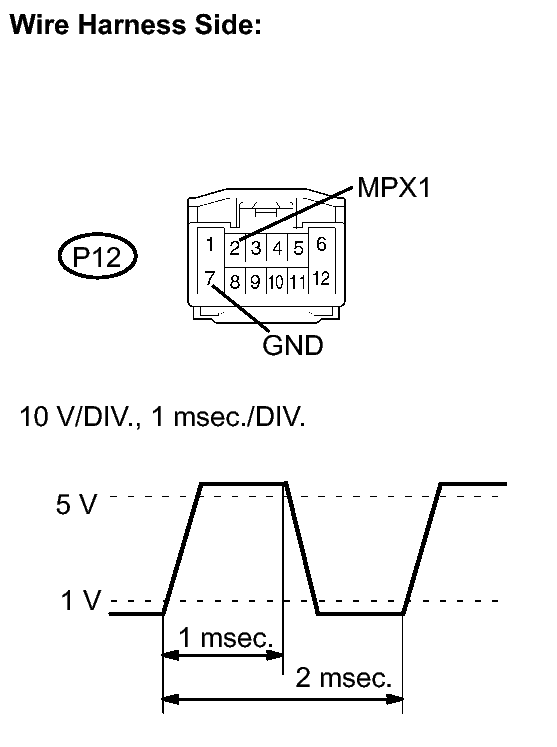

   Fig 2: Identifying P12 Regulator Switch Connector Terminals With Waveform

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch ON.
3. Using an oscilloscope, check the waveform of the connector.

   Standard

   The waveform is as shown in the illustration.

   Tester Connection	Tool Setting	Condition
   P12-2 (MPX1) - P12-7 (GND)	10 V/DIV., 1 msec./DIV.	Operating passenger side switch on master switch

OK → REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)

NG: Go to next step

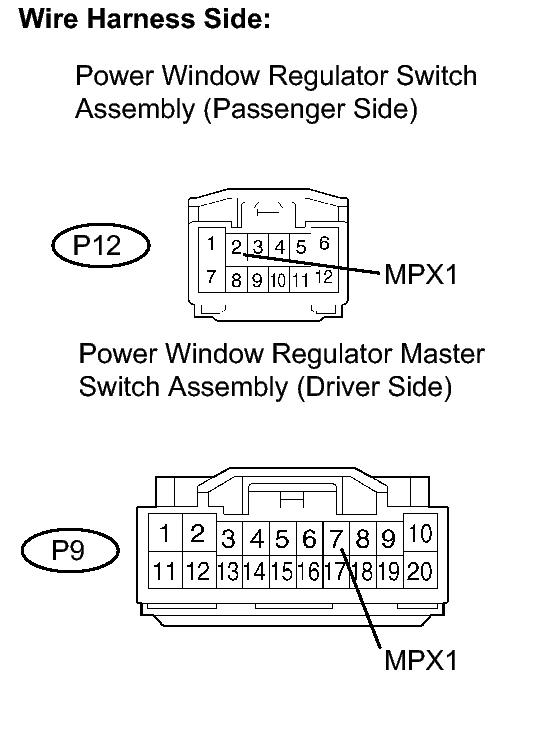

Fig 3: Identifying P12 Regulator Switch And P9 Regulator Master Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the P12 regulator switch connector.
2. Disconnect the P9 regulator master switch connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   Tester Connection	Specified Condition
   P12-2 (MPX1) - P9-7 (MPX1)	Below 1 Ω
   P12-2 (MPX1) - Body ground	10 kΩor higher

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

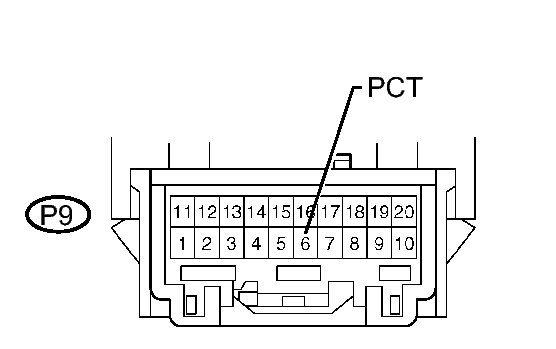

Fig 4: Identifying Power Window Regulator Master Switch Connector Terminals (Window Lock Switch)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the master switch but do not disconnect the connector.
2. Turn the ignition switch ON.
3. Measure the voltage of the connector.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   P9-6 (PCT) - Body ground	Window LOCK switch OFF (Normal)	11 to 14 V
   P9-6 (PCT) - Body ground	Window LOCK switch ON (Lock)	Below 1 V

NG → REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

OK → REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY
