DTC P0365: Camshaft Position Sensor "B" Circuit (Bank 1); DTC P0367: Camshaft Position Sensor "B" Circuit Low Input (Bank 1); DTC P0368: Camshaft Position Sensor "B" Circuit High Input (Bank 1): Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
5. Read DTCs.

   Result

   Result	Proceed to
   P0365, P0367 or P0368	A
   P0365, P0367 or P0368 and other DTCs	B

   HINT:

   If any DTCs other than P0365, P0367 or P0368 are output, troubleshoot those DTCs first.

B → See step   11

A: Go to next step

1. Disconnect the camshaft position sensor (for exhaust camshaft) connector.
   Fig 1: Identifying Camshaft Position Sensor Connector Terminals (For Exhaust Camshaft)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch to ON.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   C25-3 (VC2) - Body ground	Ignition switch ON	4.5 to 5.5 V

4. Reconnect the camshaft position sensor (for exhaust camshaft) connector.

NG → See step   10

OK: Go to next step

1. Disconnect the camshaft position sensor (for exhaust camshaft) connector.

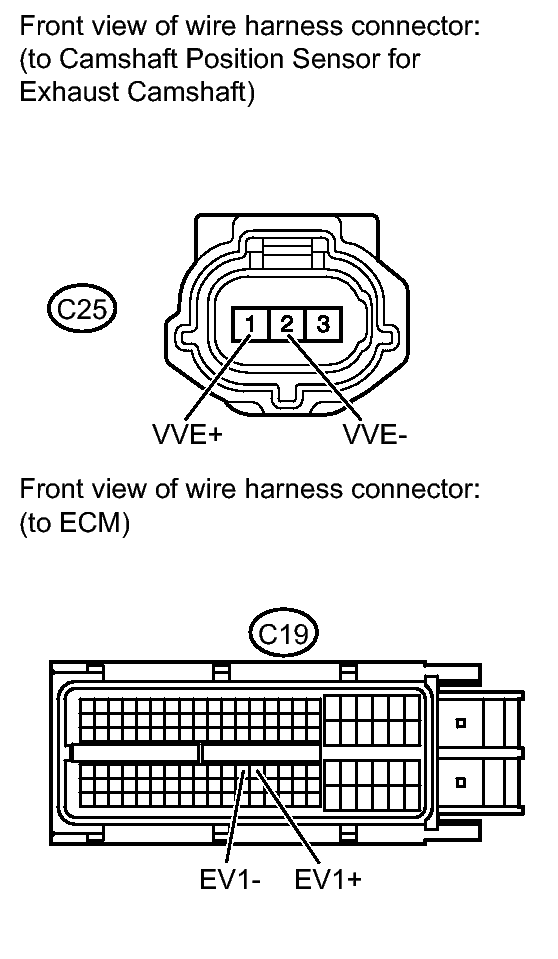

   Fig 2: Identifying Camshaft Position Sensor And ECM Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for Open)

   Tester Connection	Condition	Specified Condition
   C25-1 (VVE+) - C19-76 (EV1+)	Always	Below 1 Ω
   C25-2 (VVE-) - C19-75 (EV1-)	Always	Below 1 Ω

   Standard Resistance (Check for Short)

   Tester Connection	Condition	Specified Condition
   C25-1 (VVE+) or C19-76 (EV1+) - Body ground	Always	10 kΩ or higher
   C25-2 (VVE-) or C19-75 (EV1-) - Body ground	Always	10 kΩ or higher

4. Reconnect the camshaft position sensor (for exhaust camshaft) connector.
5. Reconnect the ECM connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Check the camshaft position sensor (for exhaust camshaft) installation.
   Fig 3: Checking Sensor Installation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Sensor is installed correctly.

NG → SECURELY REINSTALL SENSOR

OK: Go to next step

1. Check the timing rotor of the exhaust camshaft.

   OK

   Camshaft timing rotor does not have any cracks or deformation.

NG → REPLACE EXHAUST CAMSHAFT

OK: Go to next step

NEXT: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Clear DTCs. Refer to DTC CHECK / CLEAR .
5. Start the engine.
6. Refer to the confirmation driving pattern for P0365, P0367 and P0368.
7. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
8. Read DTCs.

   Result

   Result	Proceed to
   No output	A
   P0365, P0367 or P0368	B

   HINT:

   If the engine does not start, replace the ECM.

B → See step   12

A: Go to next step

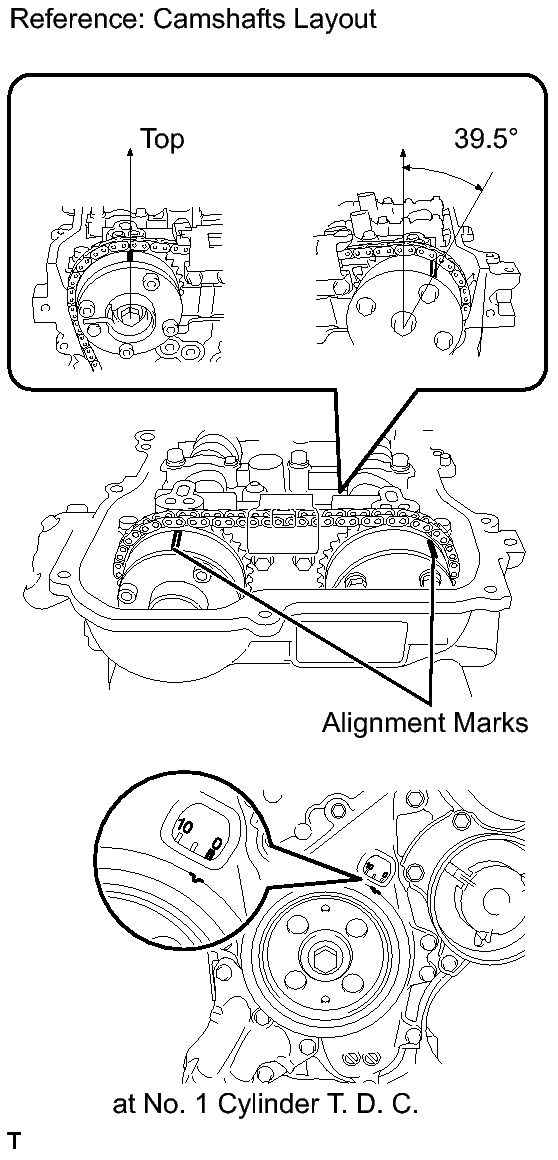

Fig 4: Identifying Valve Timing Marks

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

There are no marks on the cylinder head to match-up for the purpose of checking valve timing. Valve timing can only be inspected by lining up the colored plates on the timing chain with the marks on the pulleys. It may be necessary to remove and re-install the chain to match up the alignment marks. Refer to REASSEMBLY - Step 25 .

NEXT: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Clear DTCs. Refer to DTC CHECK / CLEAR .
5. Start the engine.
6. Turn the ignition switch to OFF.
7. Refer to the confirmation driving pattern for P0365, P0367 and P0368.
8. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
9. Read DTCs.

   Result

   Result	Proceed to
   No output	A
   P0365, P0367 or P0368	B

   HINT:

   If the engine does not start, replace the ECM.

B → See step   12

A → END

1. Disconnect the camshaft position sensor (for exhaust camshaft) connector.

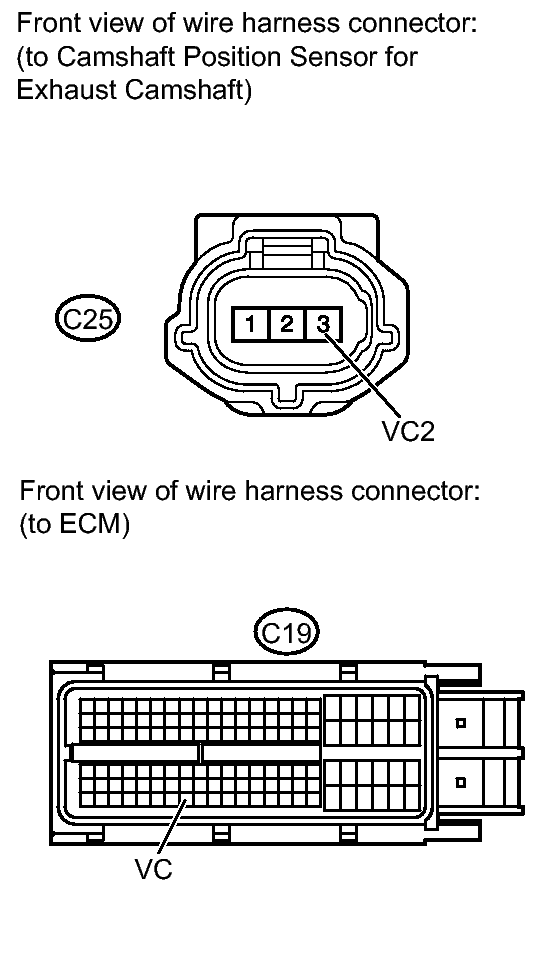

   Fig 5: Identifying Camshaft Position Sensor And ECM Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for Open)

   Tester Connection	Condition	Specified Condition
   C25-3 (VC2) - C19-117 (VC)	Always	Below 1 Ω

   Standard Resistance (Check for Short)

   Tester Connection	Condition	Specified Condition
   C25-3 (VC2) or C19-117 (VC) - Body ground	Always	10 kΩ or higher

4. Reconnect the camshaft position sensor (for exhaust camshaft) connector.
5. Reconnect the ECM connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   12
