Service Data





SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: SERVICE DATA

Engine

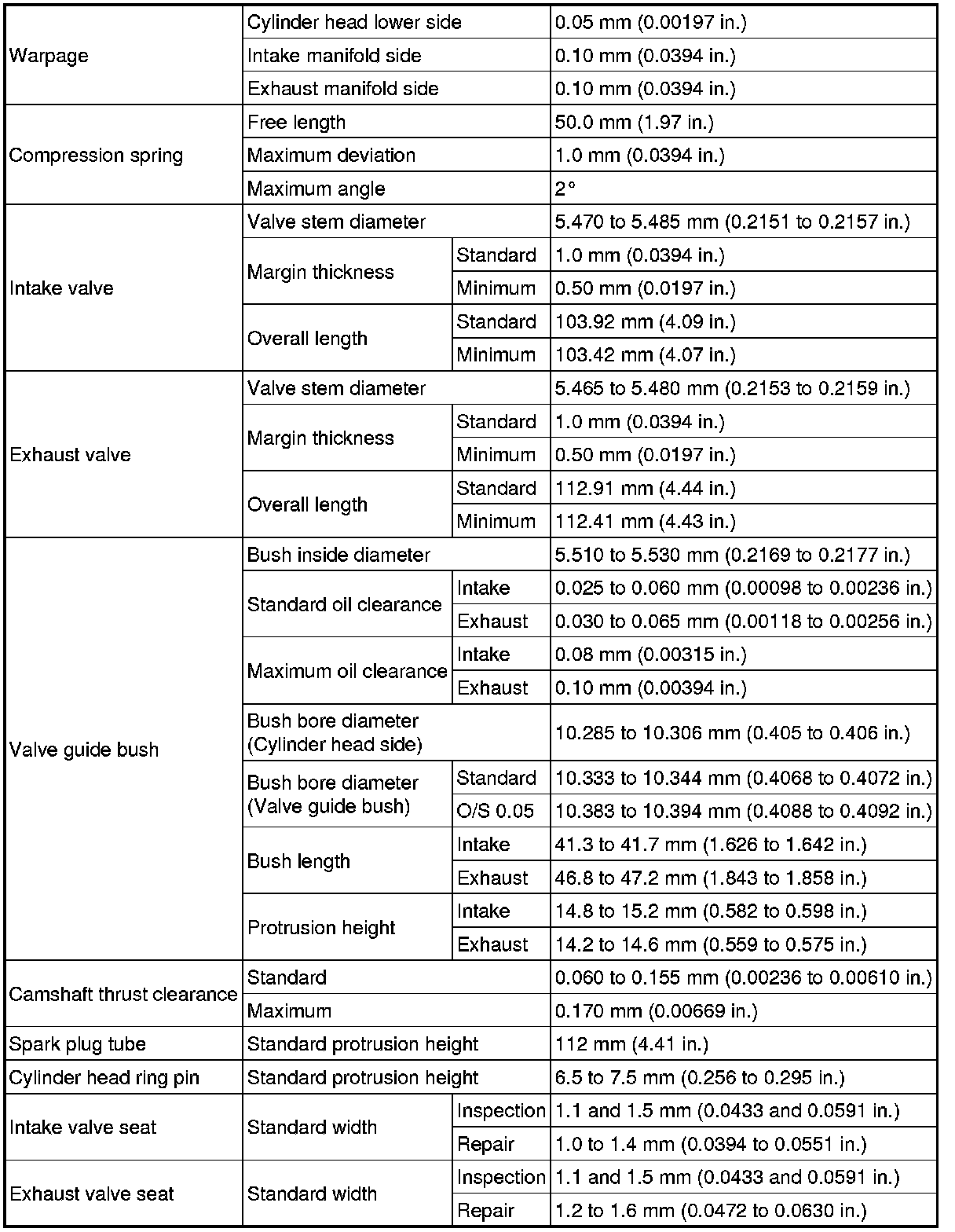

Cylinder Head

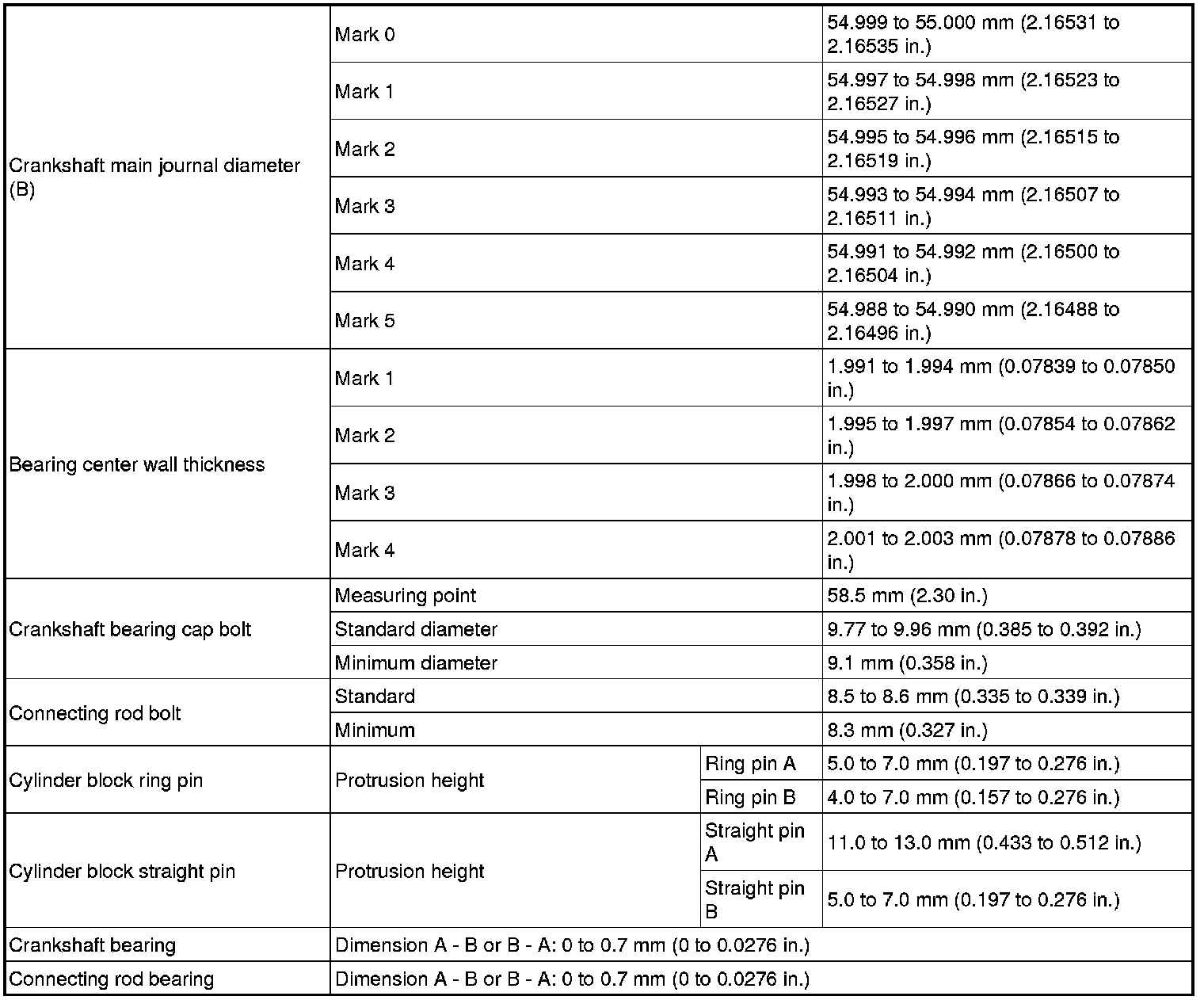

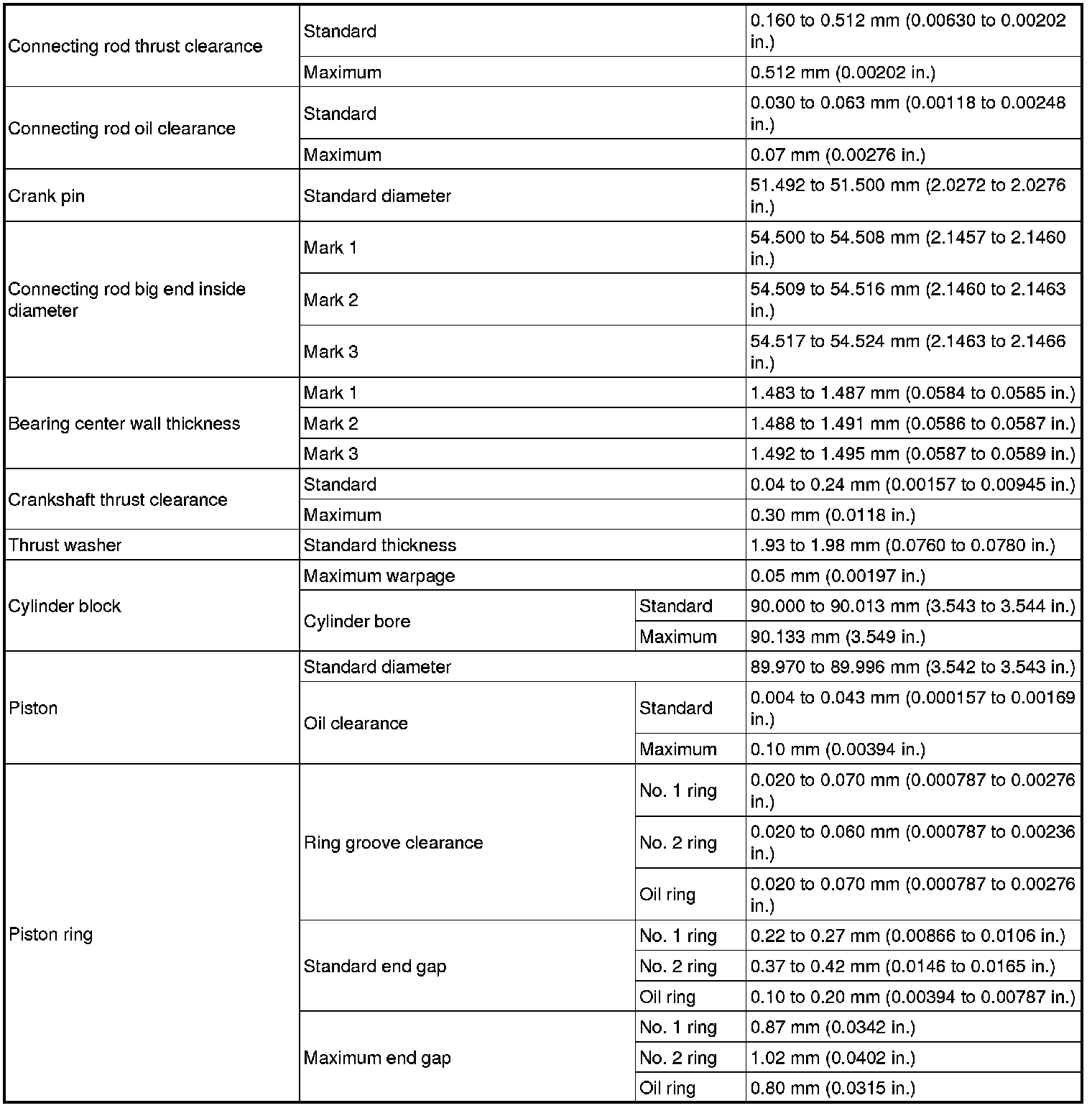

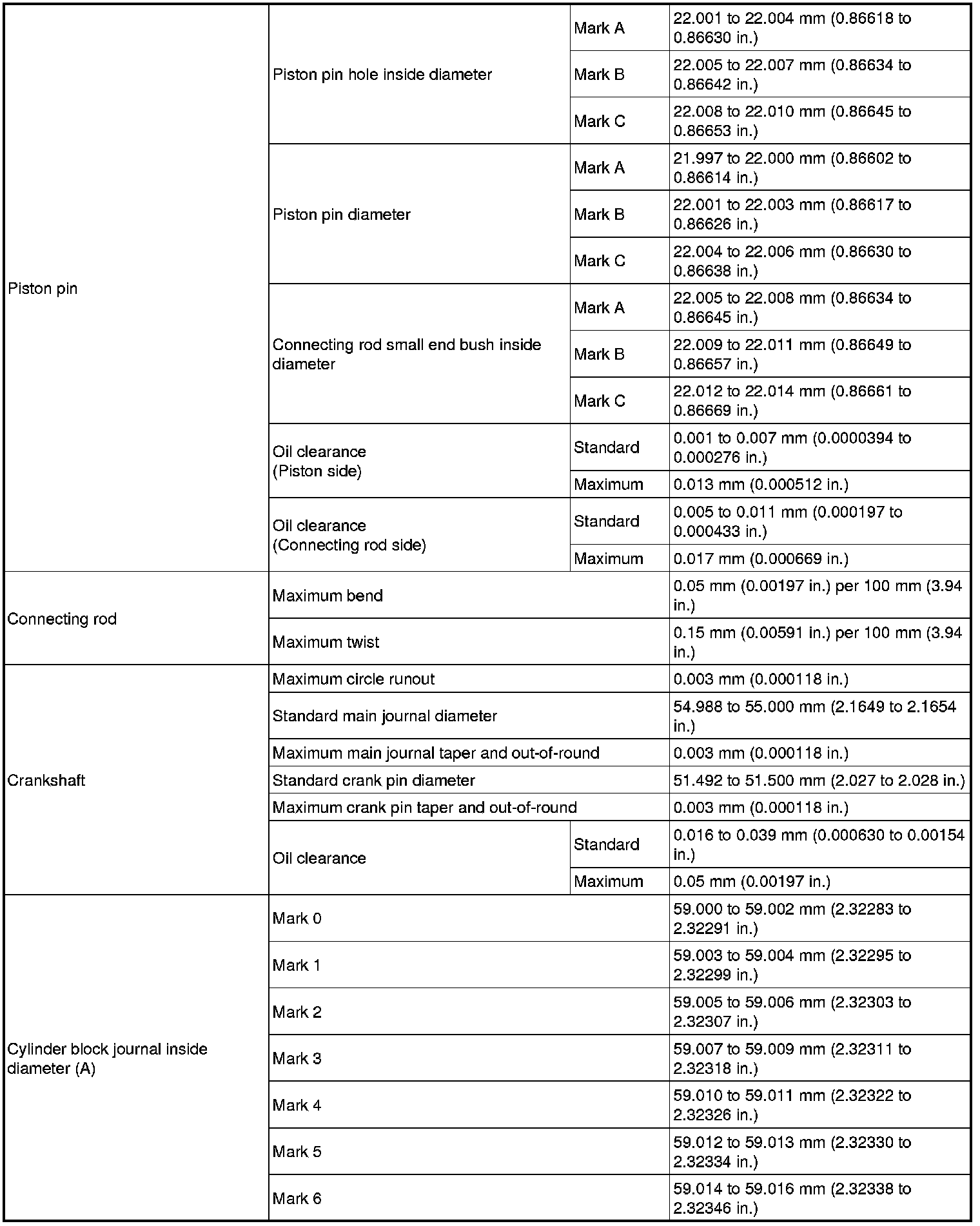

Cylinder Block

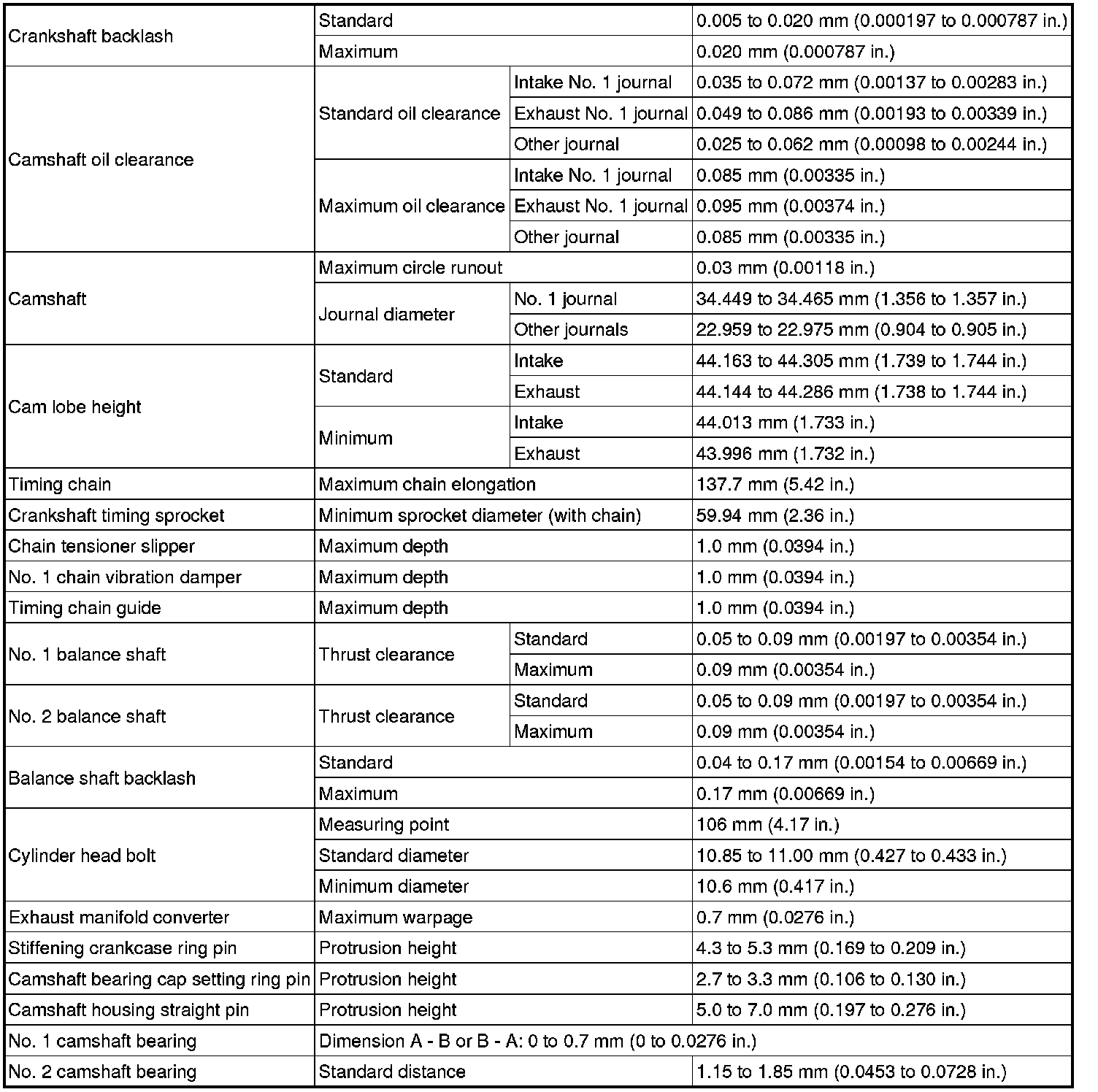

Engine Unit
