Torque Specifications





SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

Camshaft





Cylinder Head Gasket





Engine Rear Oil Seal

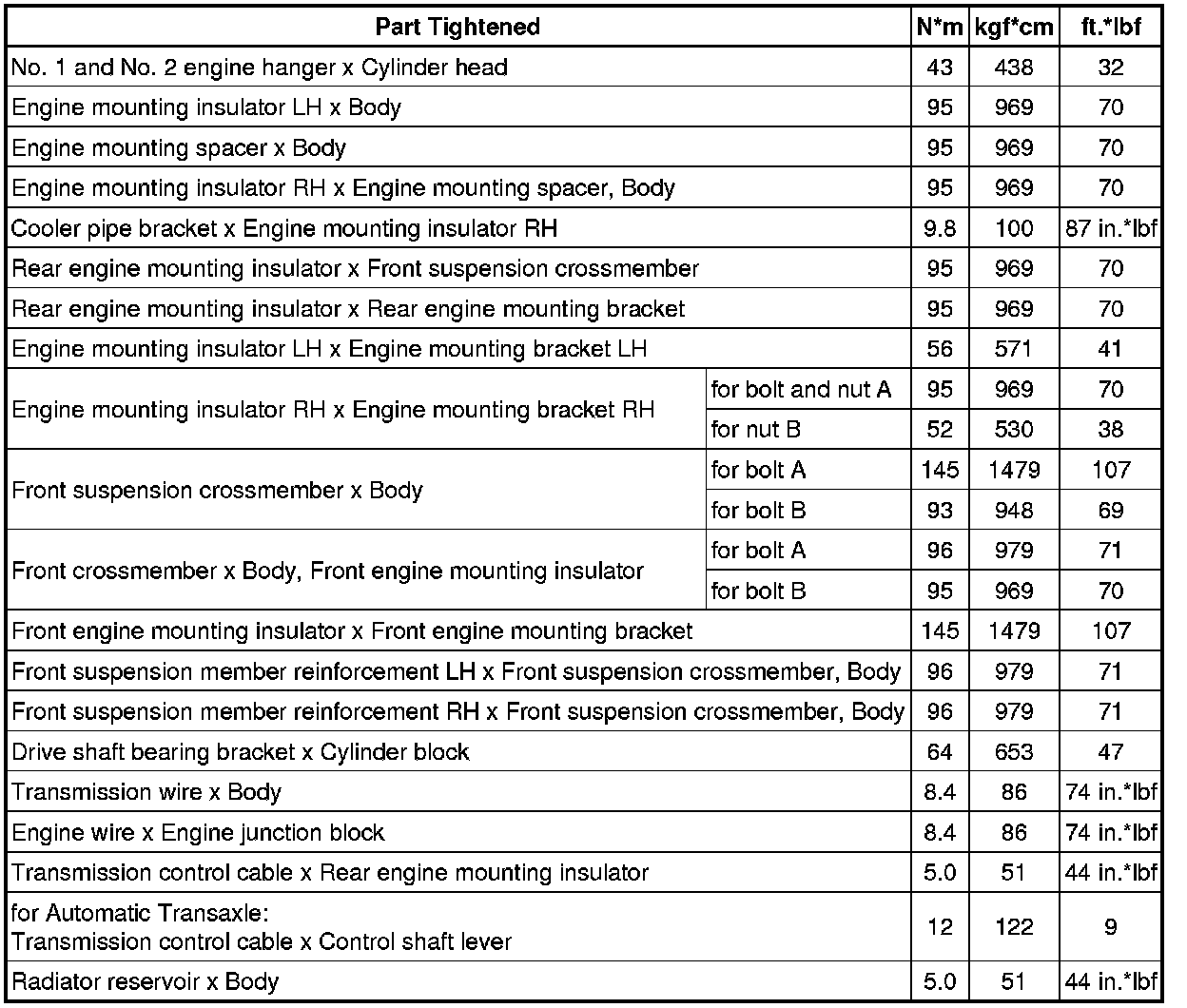

Engine Assembly





Engine Unit





Cylinder Head

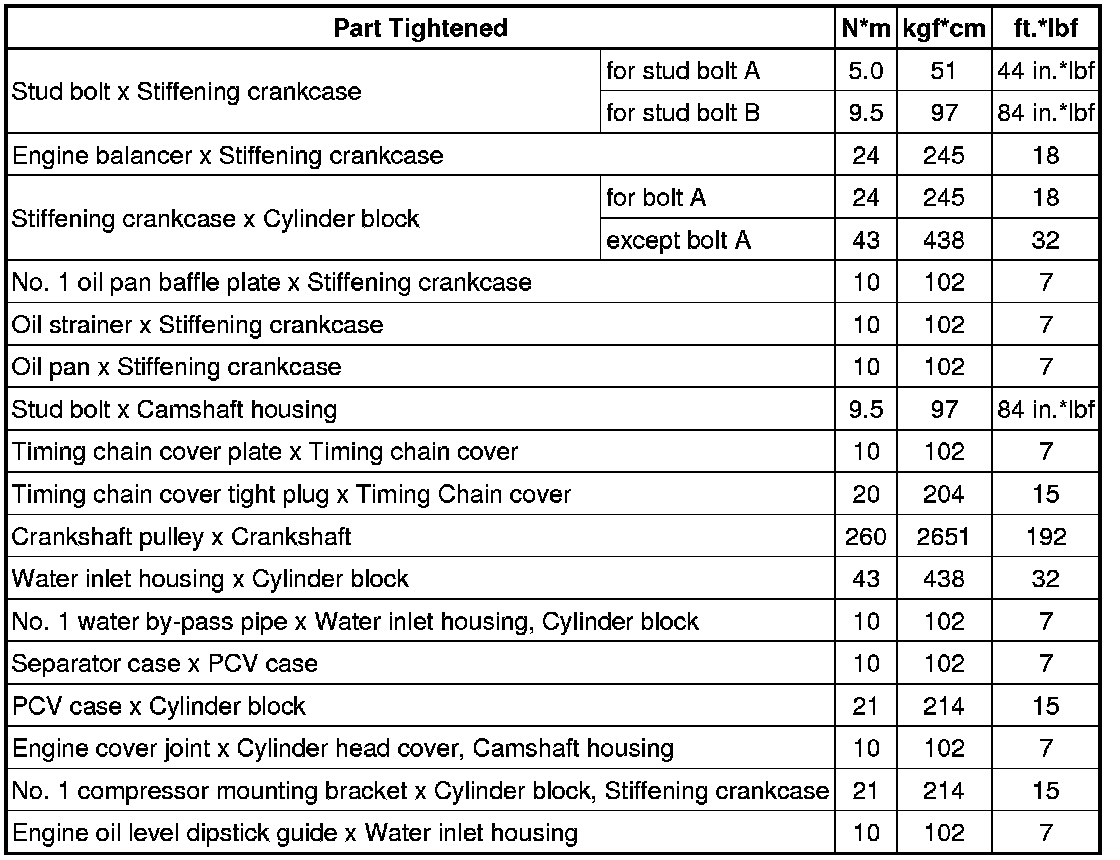

Cylinder Block
