System Diagram

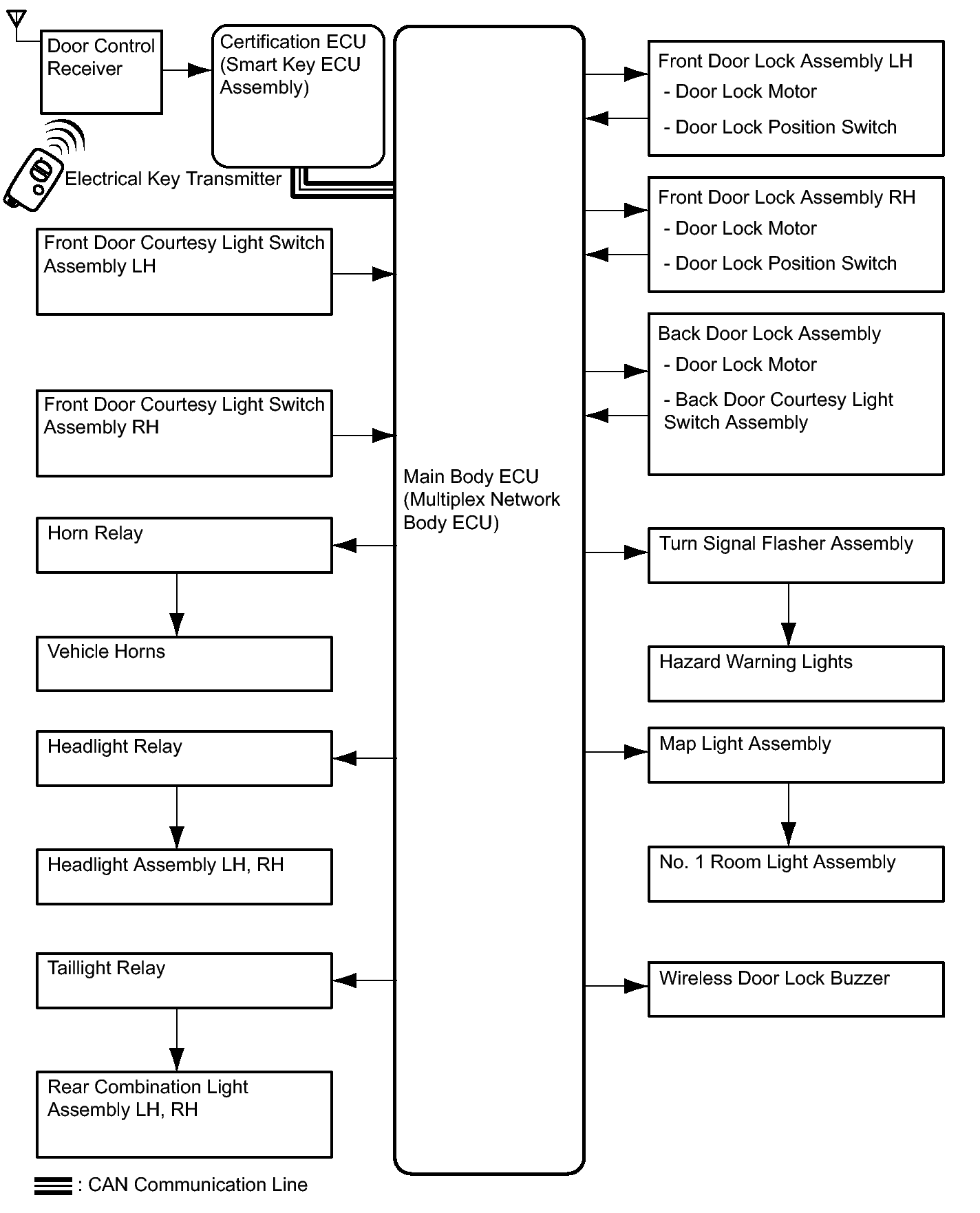

Fig 1: Wireless Door Lock Control (W/ Smart Key) - System Diagram
GTY312807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Certification ECU (Smart key ECU assembly) Main body ECU (Multiplex network body ECU)
  • Door unlock standby control signal
  • Door lock/unlock output request signal
 CAN
Main body ECU (Multiplex network body ECU) Certification ECU (Smart key ECU assembly)
  • Door courtesy light switch signal
  • Door lock position signal
