Bus Buffer ECU Communication Stop Mode: Procedure

1. Turn the ignition switch off.

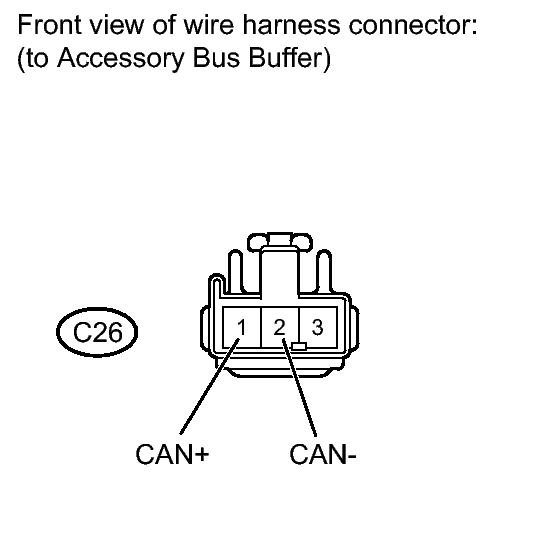

   Fig 1: Checking CAN BUS Line For Disconnection (Accessory Bus Buffer Branch Wire)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the C26 accessory bus buffer connector.
3. Measure the resistance according to the value in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   C26-1 (CAN+) - C26-2 (CAN-)	Ignition switch off	54 to 69 Ω

NG → REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO ACCESSORY BUS BUFFER ((CAN-H, CAN-L))

OK → CHECK ACCESSORY CIRCUIT
