Installation

DOOR LOCK: DOOR CONTROL RECEIVER: INSTALLATION

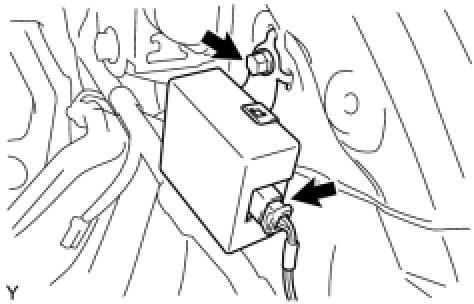

1. INSTALL DOOR CONTROL RECEIVER





(a) Install the door control receiver with the bolt.

Torque : 7.4 Nm (75 kgf-cm, 65 in-lbf)

(b) Connect the connector.

2. INSTALL DECK TRIM SIDE BOARD LH Installation

3. INSTALL ROOM LIGHT ASSEMBLY Installation

4. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY Installation

5. INSTALL REAR SEAT ASSEMBLY LH Installation

6. INSTALL NO. 1 SEAT LEG COVER Installation

7. INSTALL NO. 2 SEAT LEG COVER Installation

8. INSTALL REAR DECK TRIM COVER Installation

9. INSTALL DECK BOARD ASSEMBLY Installation

10. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

HINT
Use the same procedure as for the RH side Installation.

11. INSTALL REAR DOOR SCUFF PLATE LH

HINT
Use the same procedure as for the RH side Installation.
