Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

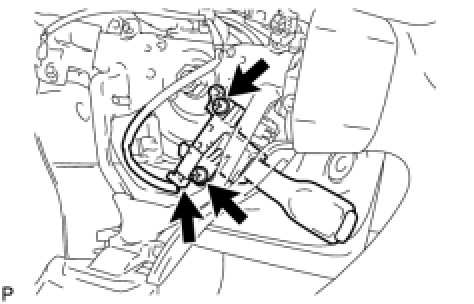

1. INSTALL CRUISE CONTROL MAIN SWITCH

(a) Install the cruise control main switch with the 2 screws.





Torque : 2.4 Nm (24 kgf-cm, 21 in-lbf)

(b) Connect the connector.

2. INSTALL STEERING PAD Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

4. INSPECT SRS WARNING LIGHT

Diagnosis System
