Removal

AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: REMOVAL

1. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

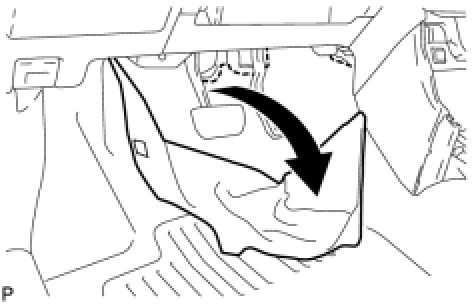

(a) Pull back the floor carpet.

(b) Disconnect the 2 connectors.





(c) Remove the screw.

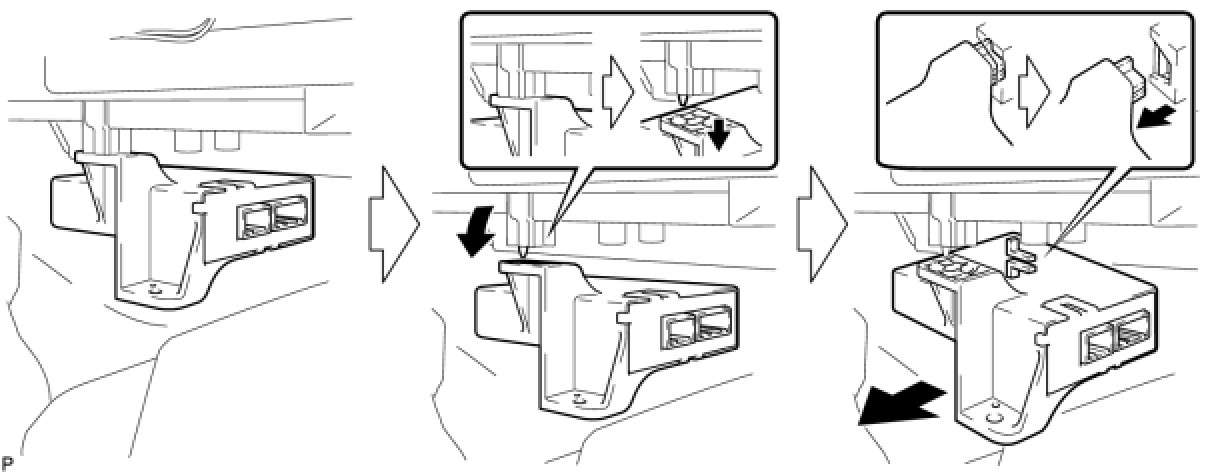

(d) Remove the air conditioning amplifier as shown in the illustration.
