Removal

2ZR-FE ENGINE CONTROL SYSTEM: MASS AIR FLOW METER: REMOVAL

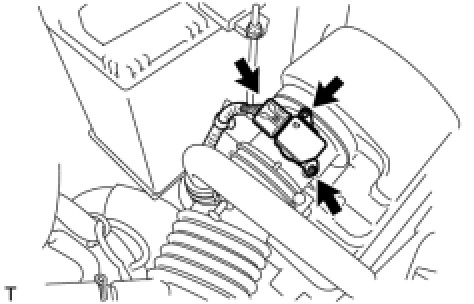

1. REMOVE MASS AIR FLOW METER





(a) Disconnect the mass air flow meter connector.

(b) Remove the 2 screws and the mass air flow meter.
