2ZR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSTALLATION

1. INSTALL CRANKSHAFT POSITION SENSOR

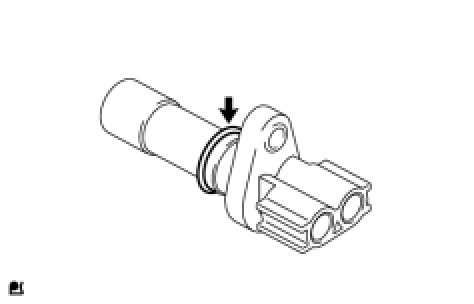

(a) Apply a light coat of engine oil to the O-ring on the crankshaft position sensor.

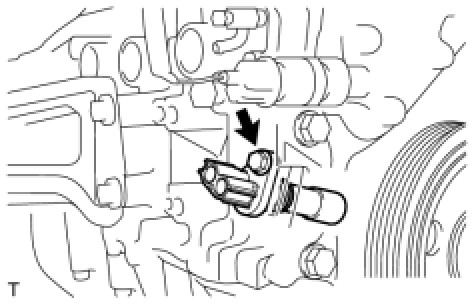

(b) Install the crankshaft position sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(c) Connect the crankshaft position sensor connector.

2. INSPECT FOR OIL LEAK

3. INSTALL ENGINE UNDER COVER RH

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)
