Torque Specifications





SERVICE SPECIFICATIONS: U341E AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS

Speed Sensor





Park/Neutral Position Switch





Transmission Wire





Valve Body Assembly





Shift Lever





Transmission Control Cable Assembly





Differential Oil Seal

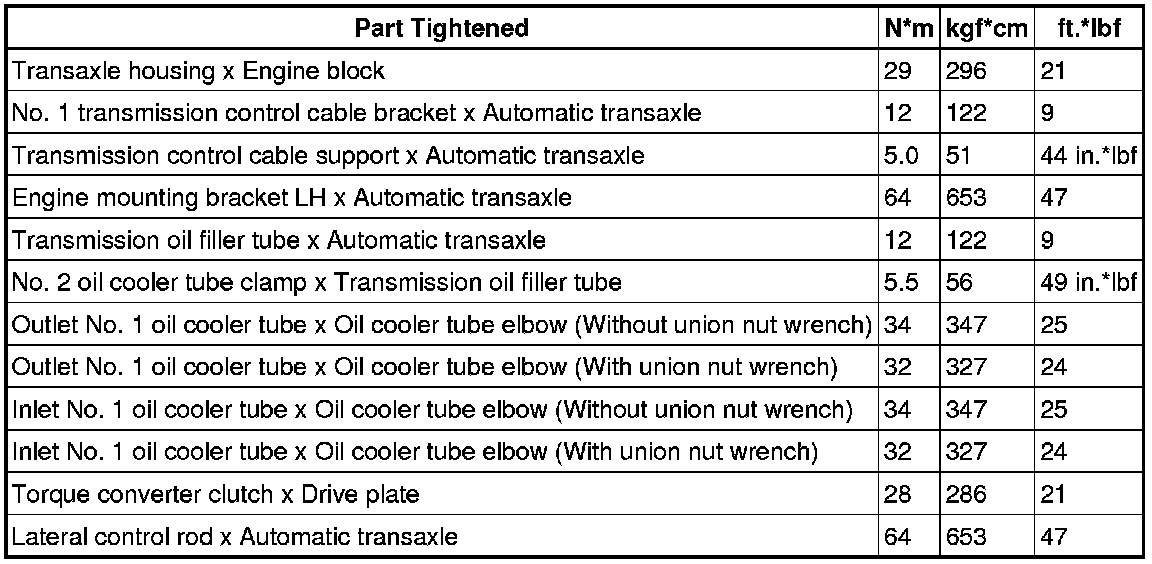

Automatic Transaxle Assembly





Automatic Transaxle Unit





Transaxle Rear Cover





Valve Body





Differential Case
