Timing Cover

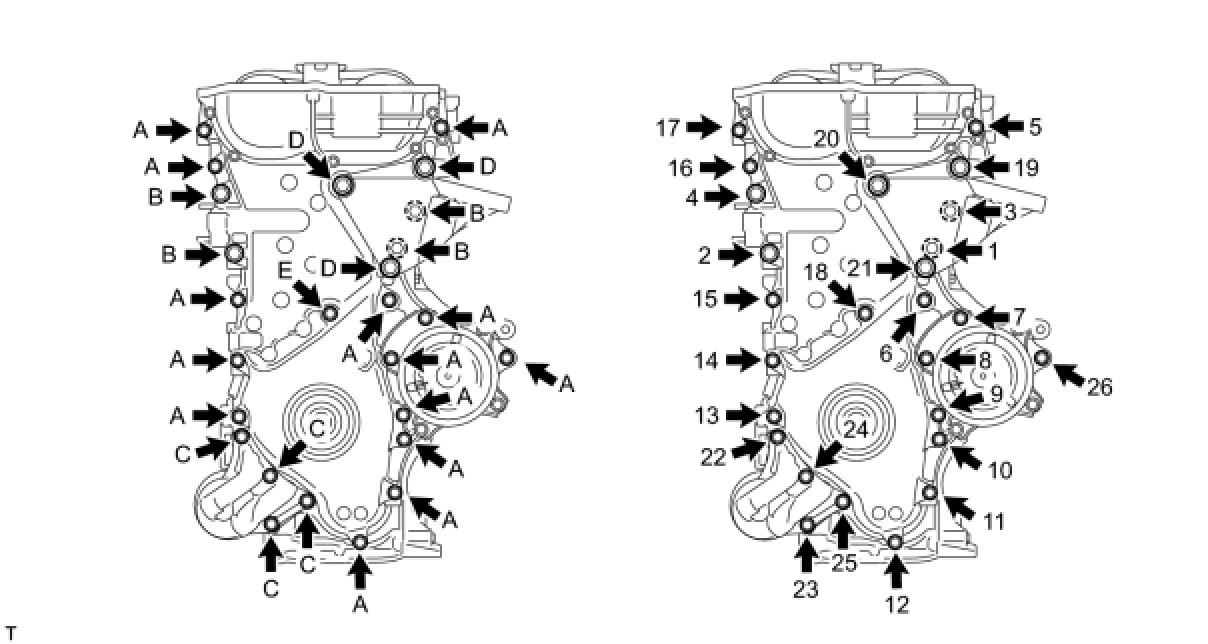

TIMING CHAIN OR BELT COVER SUB-ASSEMBLYInstall the timing chain cover with the 19 bolts as shown in the illustration.
Bolt A and C - Torque 26 Nm (260 kgf-cm, 19 ft-lbf)
Bolt B and D - Torque 51 Nm (520 kgf-cm, 38 ft-lbf)
Bolt E - Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
Bolt length:
