EVAP System: Procedure

CONFIRM DTC
1. Turn the ignition switch off and wait for 10 seconds.
2. Turn the ignition switch to ON.
3. Turn the ignition switch off and wait for 10 seconds.
4. Connect the Techstream to the DLC3.
5. Turn the ignition switch to ON.
6. Turn the Techstream on.
7. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
8. Confirm DTCs and freeze frame data.
  If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.

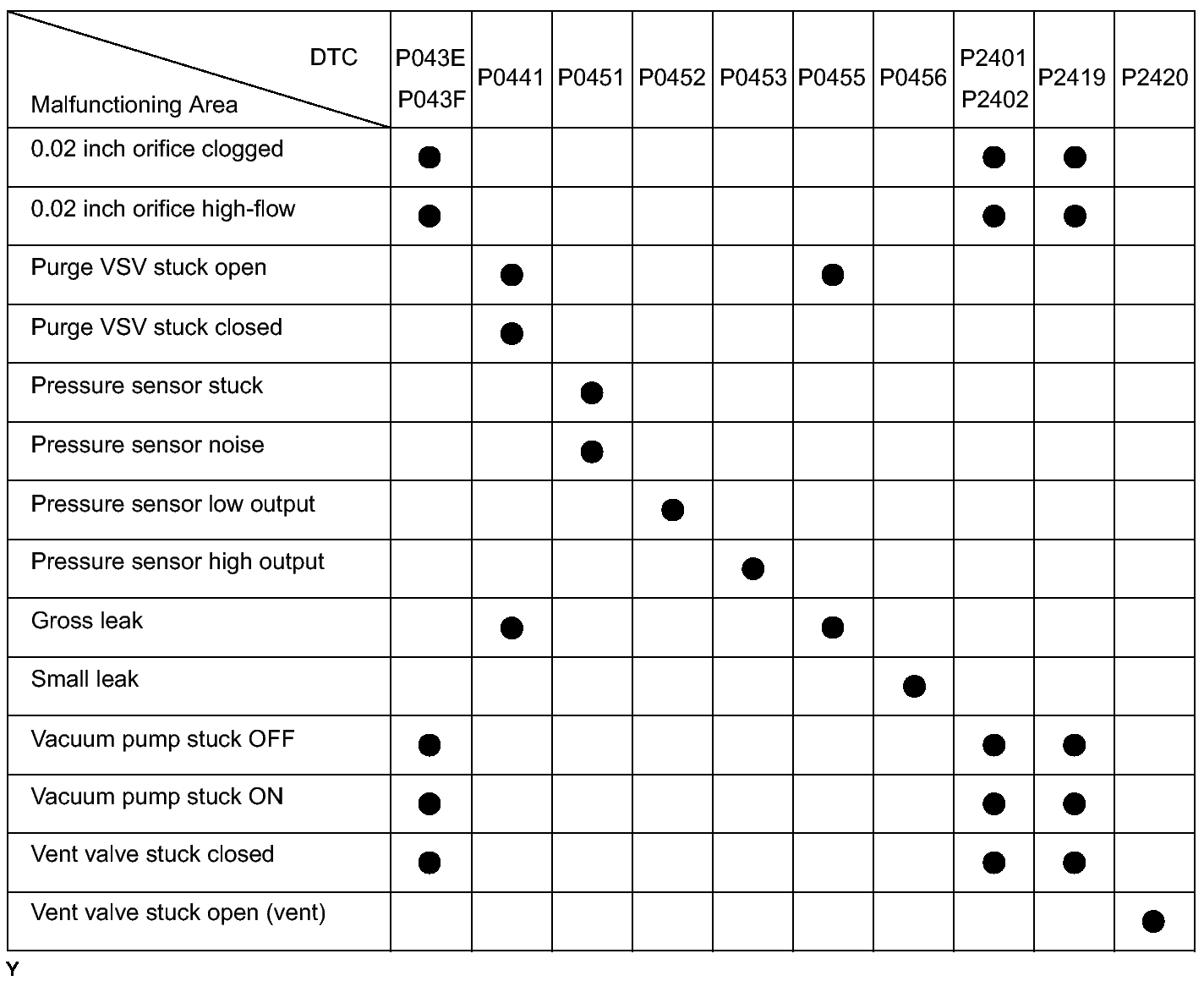

  Fig 1: DTC And Malfunction Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NEXT: Refer to next step
PERFORM EVAPORATIVE SYSTEM CHECK (AUTOMATIC MODE)
NOTE:
- The Evaporative System Check (Automatic Mode) consists of five steps performed automatically by the Techstream. It takes a maximum of approximately 19 minutes.
- Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed. If the cut-off valve is closed, the fuel tank leak check is not possible.
- Do not run the engine during this operation.
- When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the temperature below 35°C (95°F).
1. Clear DTCs. Refer to DTC CHECK / CLEAR .
2. Enter the following menus: Powertrain / Engine and ECT / Utility / Evaporative System Check / Automatic Mode.
3. After the Evaporative System Check is completed, check for pending DTCs by selecting the following menu items: Powertrain / Engine and ECT / Trouble Codes / Pending.
  HINT:

  If no pending DTCs are displayed, perform the CONFIRMATION DRIVING PATTERN. After this confirmation, check for pending DTCs. If no DTCs are displayed, the EVAP system is normal.
NEXT: Refer to next step
PERFORM EVAPORATIVE SYSTEM CHECK (MANUAL MODE)

Fig 2: Identifying Evaporative System Pressure Check (Manual Mode)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- In the Evaporative System Check (Manual Mode), perform the series of 5 Evaporative System Check steps manually using the Techstream.
- Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed. If the cut-off valve is closed, the fuel tank leak check is not possible.
- Do not run the engine during this operation.
- When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the temperature below 35°C (95°F).
1. Clear DTCs. Refer to DTC CHECK / CLEAR .
2. Enter the following menus: Powertrain / Engine and ECT / Utility / Evaporative System Check / Manual Mode.
NEXT: Refer to next step

PERFORM EVAPORATIVE SYSTEM CHECK (STEP 1/5)

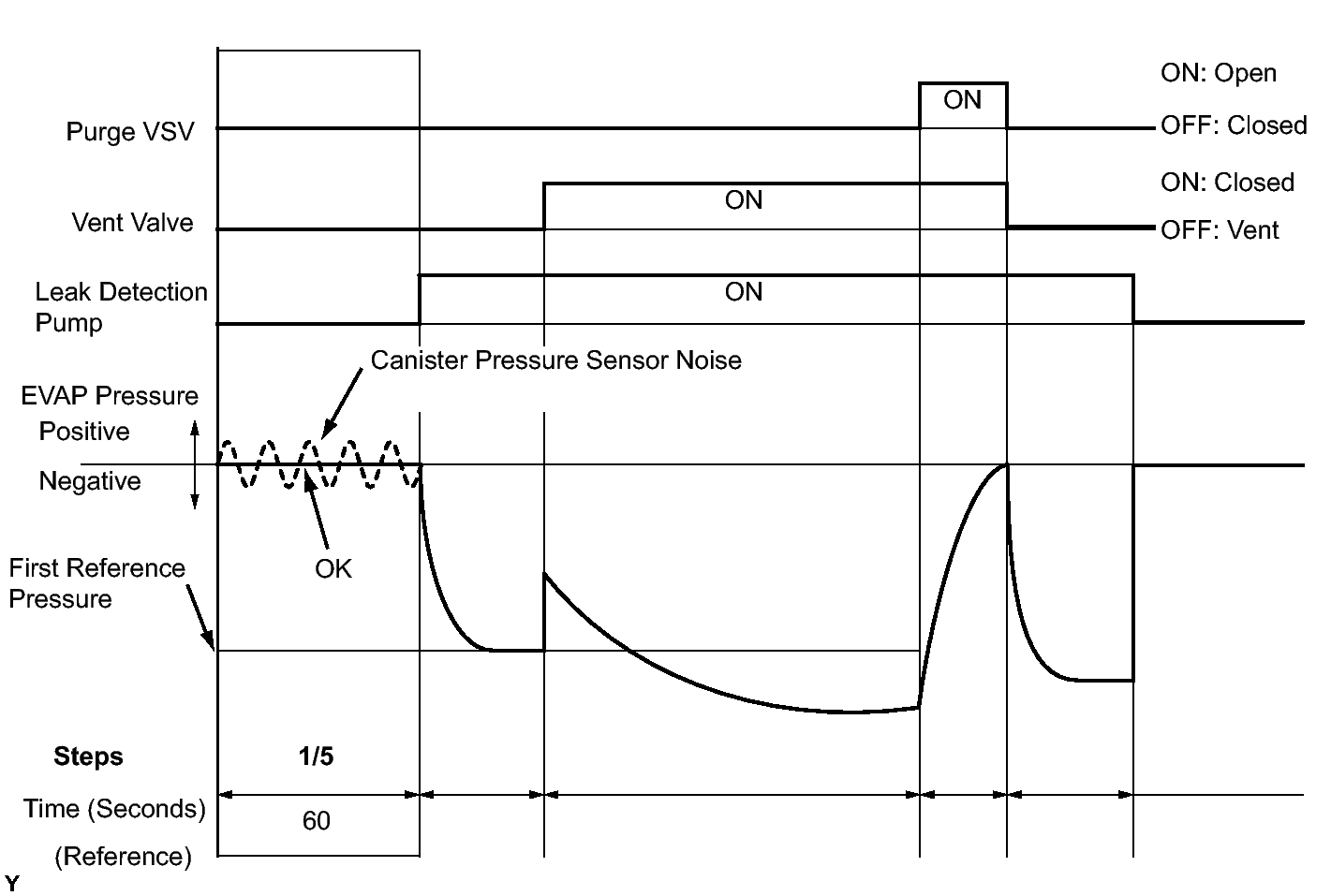

Fig 3: Identifying Evaporative System Pressure Check (Step 1/5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the EVAP pressure in step 1/5.

RESULT

DTCs*	Result	Suspected Trouble Area	Refer to
-	Virtually no variation in EVAP pressure	Not yet determined	A
P0451	EVAP pressure fluctuates by +/-0.3 kPa-g (+/-2.25 mmHg-g) or more	Canister pressure sensor noise	B

*: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

B → Refer to step 29

A: Refer to next step

PERFORM EVAPORATIVE SYSTEM CHECK (STEP 1/5 TO 2/5)

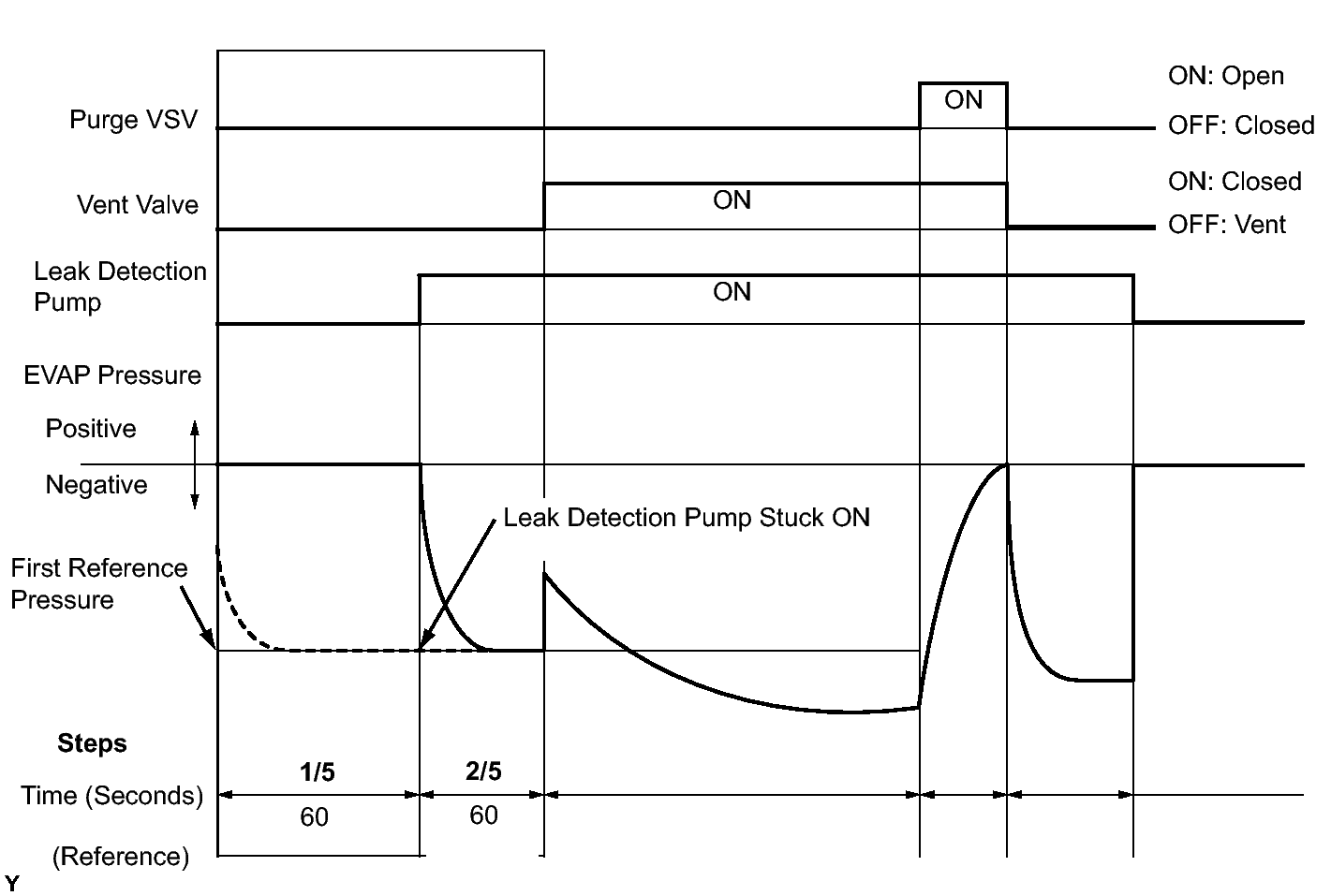

Fig 4: Identifying Evaporative System Pressure Check (Step 1/5 To 2/5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the EVAP pressure in steps 1/5 and 2/5.

RESULT

DTCs*	Result	Suspected Trouble Area	Refer to
-	Virtually no variation in EVAP pressure during step 1/5. Then decreases to reference pressure	Not yet determined	A
P2402	Small difference between EVAP pressures during steps 1/5 and 2/5	Leak detection pump stuck ON	B

*: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

HINT:

The first reference pressure is the value determined in step 2/5.

B → Refer to step 22

A: Refer to next step

PERFORM EVAPORATIVE SYSTEM CHECK (STEP 2/5)

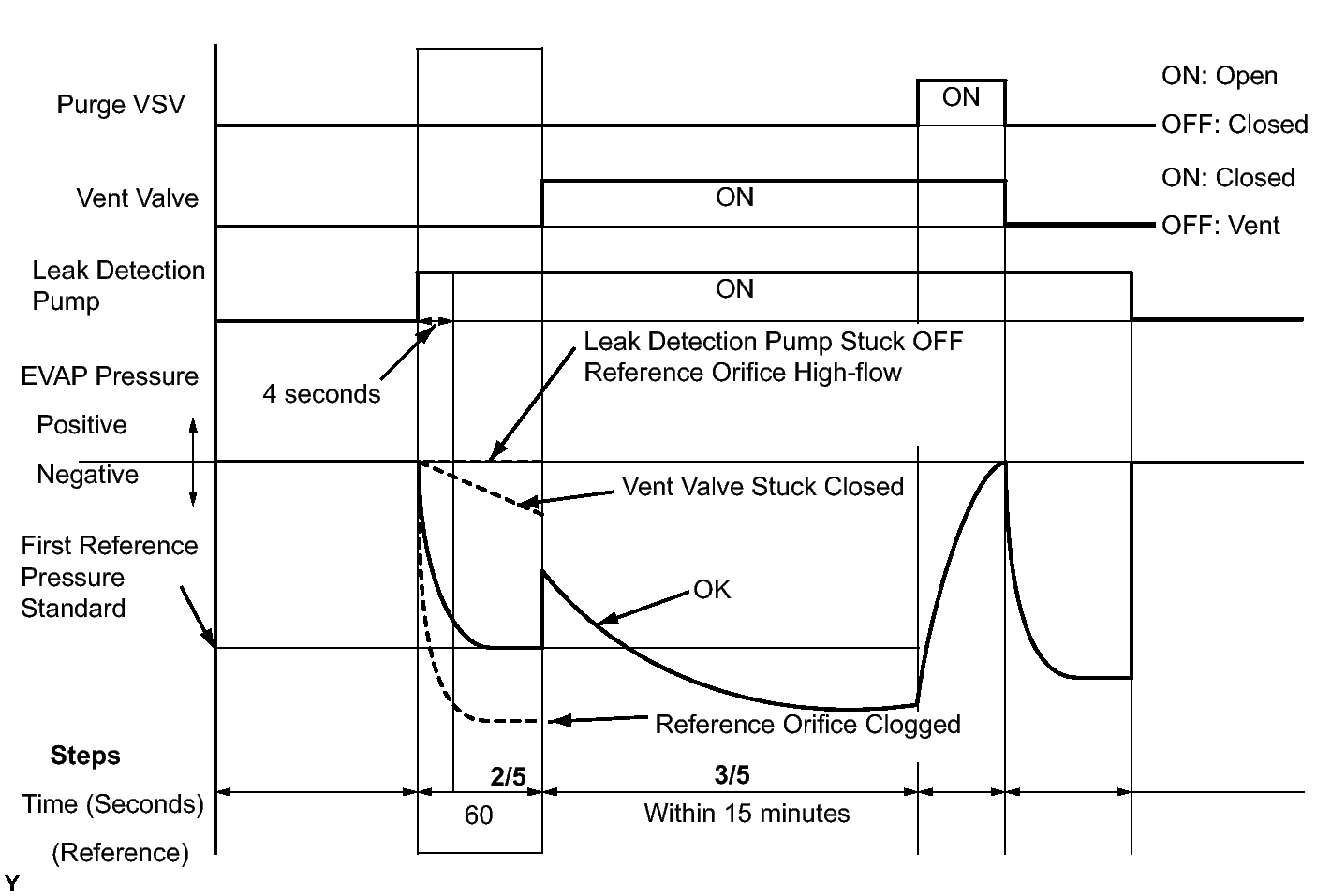

Fig 5: Evaporative System Pressure Check (Step 2/5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Make a note of the pressures checked in steps (a) and (b) below.

(a) Check the EVAP pressure 4 seconds after the leak detection pump is activated*.
*: The leak detection pump begins to operate as step 1/5 finishes and step 2/5 starts.

(b) Check the EVAP pressure again when it has stabilized. This pressure is the reference pressure.

RESULT

DTCs*	Result	Suspected Trouble Area	Refer to
-	EVAP pressure in step (b) between -4.85 kPa-g and -1.057 kPa-g (-36.4 mmHg-g and -7.93 mmHg-g)	Not yet determined	A
P043F and P2401	EVAP pressure in step (b) -1.057 kPa-g (-7.93 mmHg-g) or more	Reference orifice high-flow Leak detection pump stuck OFF	B
P043E	EVAP pressure in step (b) below -4.85 kPa-g (-36.4 mmHg-g)	Reference orifice clogged	C
P2419	EVAP pressure in step (a) more than -1 kPa-g (-7.93 mmHg-g)	Vent valve stuck closed	D

*: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

B → Refer to step 11

C → Refer to step 29

D → Refer to step 20

A: Refer to next step

PERFORM EVAPORATIVE SYSTEM CHECK (STEP 2/5 TO 3/5)

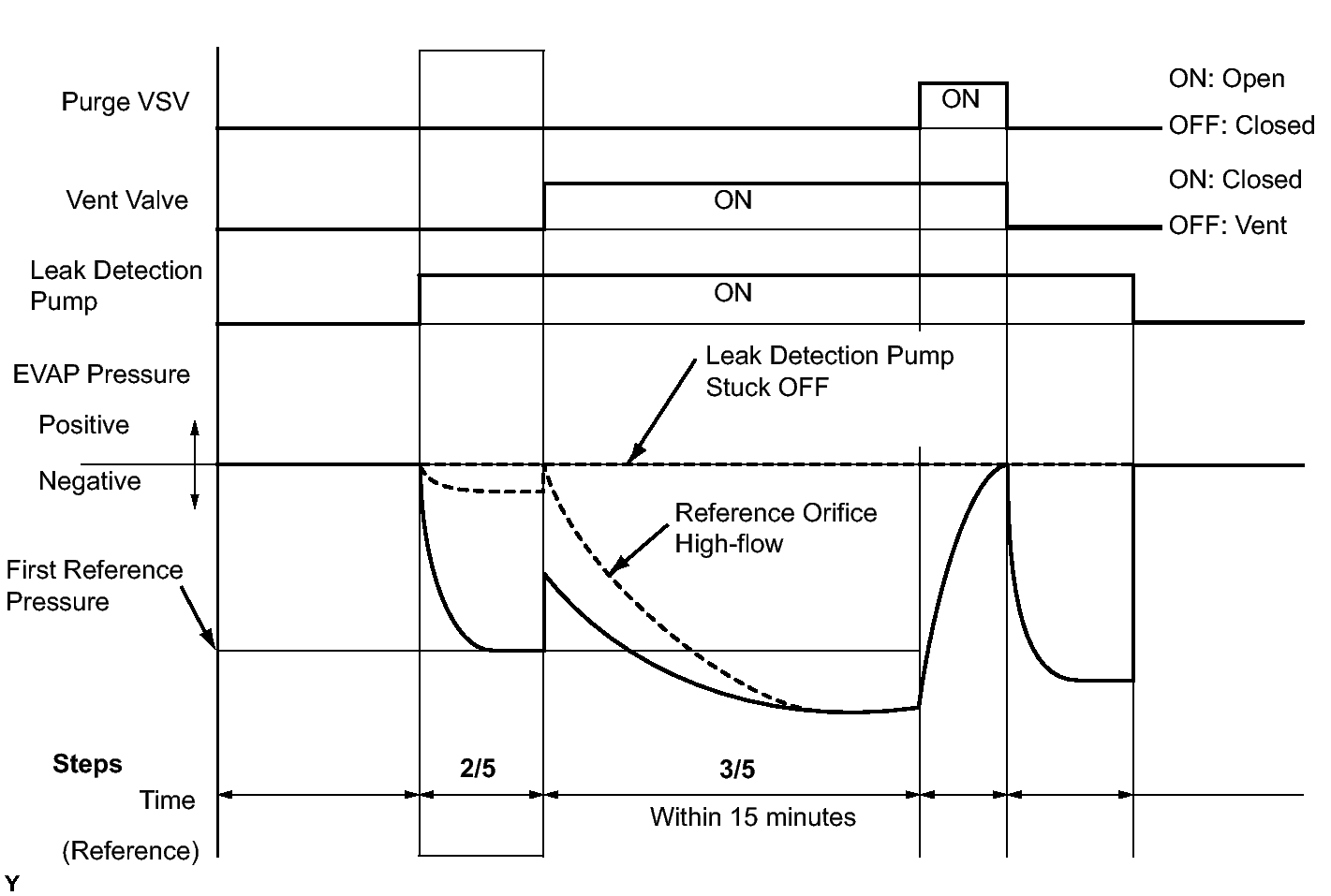

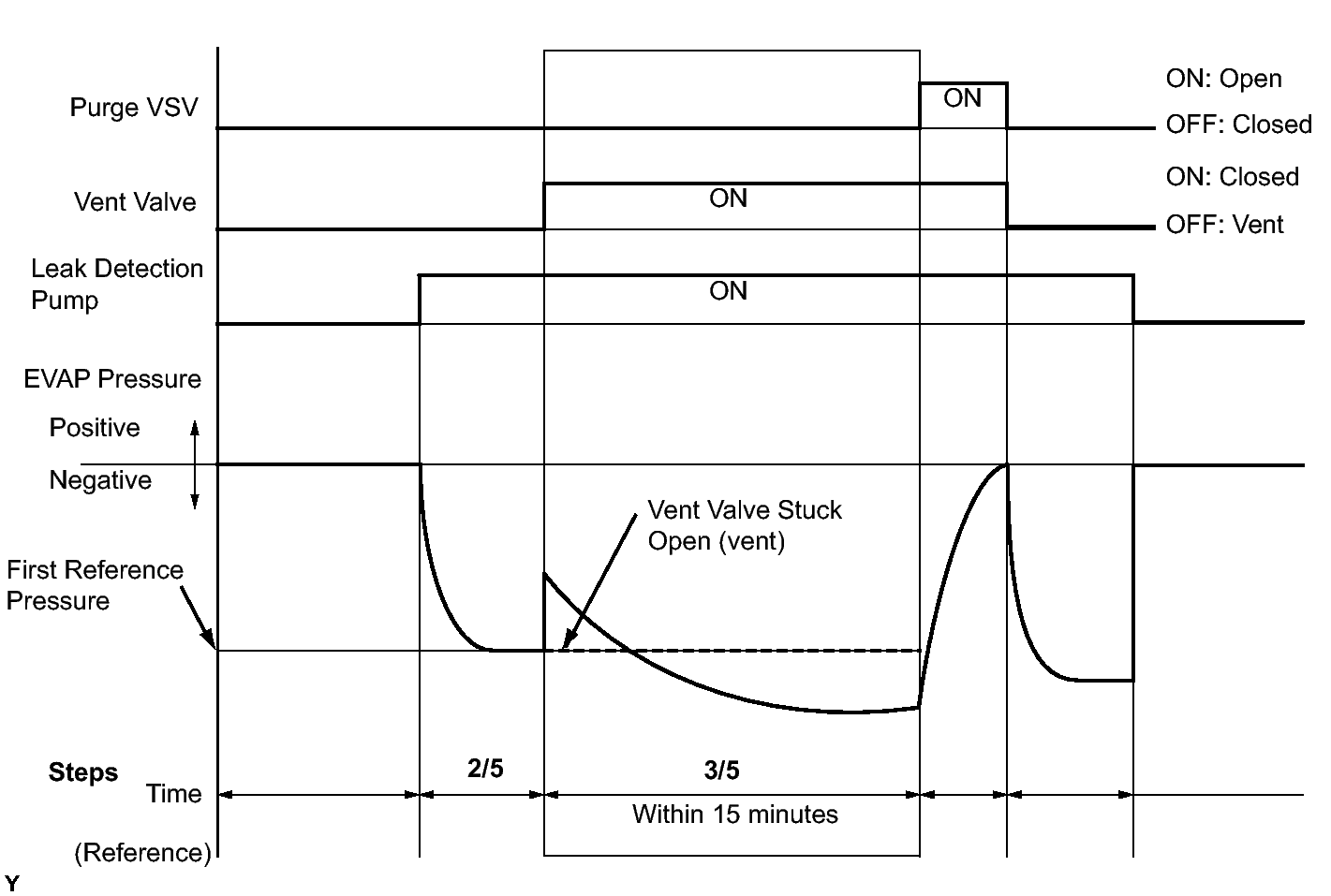

Fig 6: Evaporative System Pressure Check (Step 2/5 To 3/5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the EVAP pressure increase in step 3/5.

RESULT

DTCs*	Result	Suspected Trouble Area	Refer to
-	EVAP pressure increases by 0.3 kPa-g (2.25 mmHg-g) or more within 10 seconds of proceeding from step 2/5 to step 3/5	Not yet determined	A
P2420	No variation in EVAP pressure despite proceeding from step 2/5 to step 3/5	Vent valve stuck open (vent)	B
P0451	No variation in EVAP pressure during steps 1/5 through 3/5	Canister pressure sensor output value stuck	C

*: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

B → Refer to step 19

C → Refer to step 29

A: Refer to next step

PERFORM EVAPORATIVE SYSTEM CHECK (STEP 3/5)

Fig 7: Evaporative System Pressure Check (Step 3/5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Wait until the EVAP pressure change is less than 0.1 kPa-g (0.75 mmHg-g) for 30 seconds.
2. Measure the EVAP pressure and record it.
  HINT:

  A few minutes are required for the EVAP pressure to become saturated. When there is little fuel in the fuel tank, it takes up to 15 minutes.
NEXT: Refer to next step

PERFORM EVAPORATIVE SYSTEM CHECK (STEP 4/5)

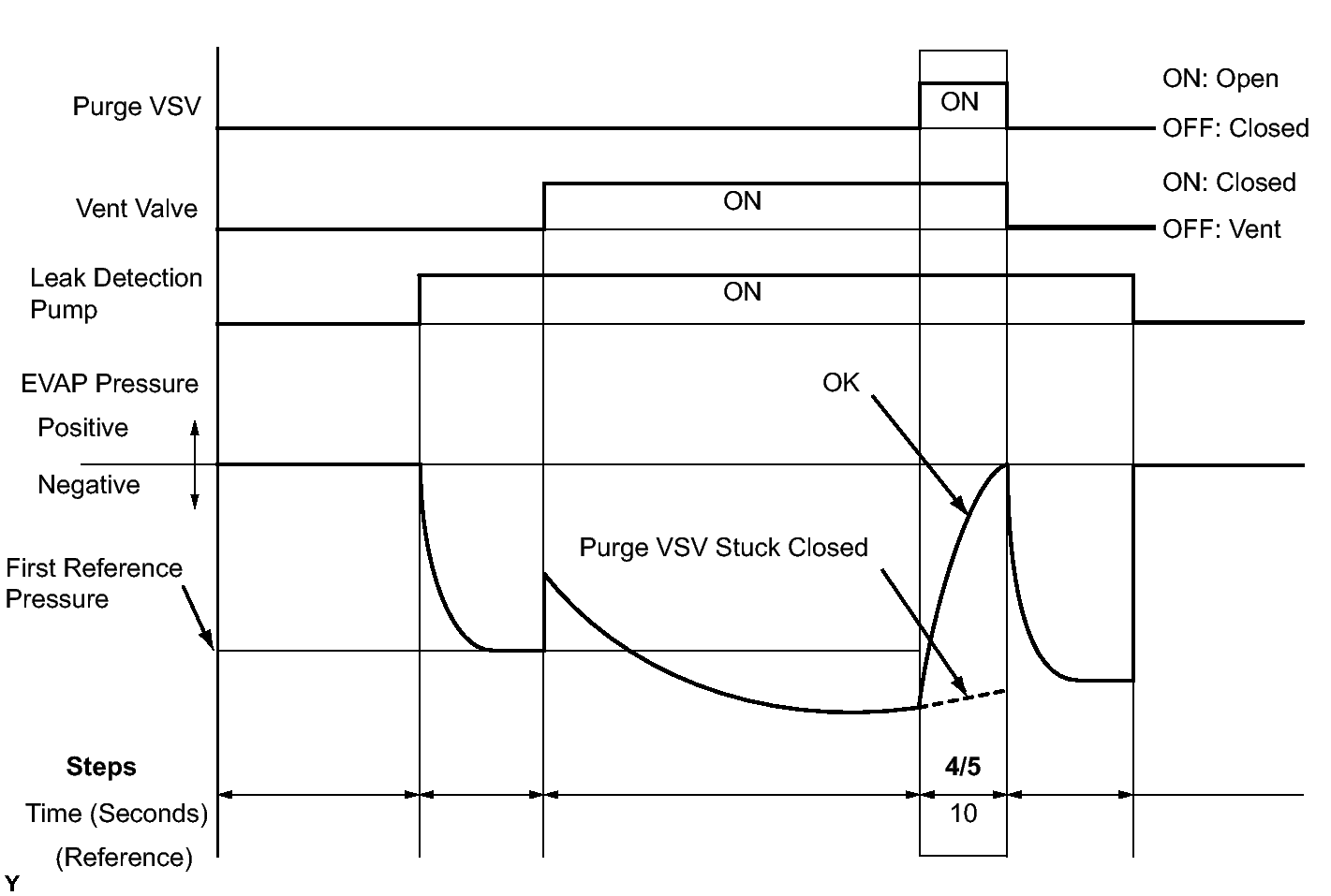

Fig 8: Evaporative System Pressure Check (Step 4/5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the EVAP pressure in step 4/5.

RESULT

DTCs*	Result	Suspected Trouble Area	Refer to
-	EVAP pressure increases by 0.3 kPa-g (2.25 mmHg-g) or more within 10 seconds of proceeding from step 3/5 to step 4/5	Not yet determined	A
P0441	EVAP pressure increases by 0.3 kPa-g (2.25 mmHg-g) or more within 10 seconds of proceeding from step 3/5 to step 4/5	Problems in EVAP hose between purge VSV and intake manifold	B
P0441	Variation in EVAP pressure less than 0.3 kPa-g (2.25 mmHg-g) for 10 seconds, after proceeding from step 3/5 to step 4/5	Purge VSV stuck closed	C

*: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

B → Refer to step 15

C → Refer to step 12

A: Refer to next step

PERFORM EVAPORATIVE SYSTEM CHECK (STEP 5/5)

Fig 9: Evaporative System Pressure Check (Step 5/5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the EVAP pressure in step 5/5.

Compare the EVAP pressure in step 3/5 and the second reference pressure (step 5/5).

RESULT

DTCs*	Result	Suspected Trouble Area	Refer to
-	EVAP pressure (step 3/5) lower than second reference pressure (step 5/5)	Not yet determined (no leak from EVAP system)	A
P0455	EVAP pressure (step 3/5) higher than [second reference pressure (step 5/5) x 0.2]	EVAP gross leak	B
P0441	EVAP pressure (step 3/5) higher than [second reference pressure (step 5/5) x 0.2]	Purge VSV stuck open	B
P0456	EVAP pressure (step 3/5) higher than second reference pressure (step 5/5)	EVAP small leak	B

*: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

A → Refer to step 35

B → Refer to step 12

PERFORM EVAPORATIVE SYSTEM CHECK (STEP 3/5)

Fig 10: Evaporative System Pressure Check (Step 3/5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the EVAP pressure in step 3/5.

RESULT

DTCs*	Result	Suspected Trouble Area	Refer to
P043F	EVAP pressure less than [reference pressure] measured at 2/5	Reference orifice high-flow	A
P2401	EVAP pressure almost same as [reference pressure] measured at 2/5	Leak detection pump stuck OFF	B

*: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

HINT:

The first reference pressure is the value determined in step 2/5.

A → Refer to step 29

B → Refer to step 22

PERFORM ACTIVE TEST USING TECHSTREAM (PURGE VSV)

Fig 11: Identifying Purge VSV

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the VSV for EVAP Control.
Disconnect the hose (connected to the canister) from the purge VSV.
Start the engine.
Using the tester, turn off the purge VSV (Activate the VSV for EVAP Control: OFF).
Use your finger to confirm that the purge VSV has no suction.
Using the tester, turn on the purge VSV (Activate the VSV for EVAP Control: ON).

Use your finger to confirm that the purge VSV has suction.

RESULT

Result	Suspected Trouble Area	Refer to
No suction when purge VSV turned OFF, and suction applied when turned ON	Purge VSV normal	A
Suction applied when purge VSV turned OFF	Purge VSV stuck open	B
No suction when purge VSV turned ON	Purge VSV stuck closed Problems with EVAP hose between purge VSV and intake manifold	C

Reconnect the hose.

B → Refer to step 14

C → Refer to step 15

A: Refer to next step

CHECK FUEL CAP ASSEMBLY

Check that the fuel cap is correctly installed and confirm that the fuel cap meets OEM specifications.

Tighten the fuel cap until a few click sounds are heard.

HINT:

If an EVAP tester is available, check the fuel cap using the tester.

Remove the fuel cap and install it onto a fuel cap adapter.
Connect an EVAP tester pump hose to the adapter, and pressurize the cap to 3.2 to 3.7 kPa (24 to 28 mmHg) using an EVAP tester pump.
Seal the adapter and wait for 2 minutes.
Check the pressure. If the pressure is 2 kPa (15 mmHg) or more, the fuel cap is normal.

RESULT

Result	Suspected Trouble Area	Refer to
Fuel cap correctly installed	-	A
Fuel cap loose	Fuel cap improperly installed Defective fuel cap Fuel cap does not meet OEM specifications	B
Defective fuel cap	-	B
No fuel cap	-	C

A → Refer to step 28

B → Refer to step 26

C → Refer to step 27

INSPECT PURGE VSV

Fig 12: Identifying Purge VSV

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Turn the ignition switch off.
Disconnect the purge VSV connector.
Disconnect the hose (connected to the canister) from the purge VSV.
Start the engine.

Use your finger to confirm that the purge VSV has no suction.

RESULT

Result	Suspected Trouble Area	Refer to
No suction	ECM	A
Suction applied	Purge VSV	B

Reconnect the purge VSV connector.
Reconnect the hose.

A → Refer to step 34

B → Refer to step 30

CHECK EVAP HOSE (PURGE VSV - INTAKE MANIFOLD)

Fig 13: Identifying Purge VSV And Hose

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the hose (connected to the intake manifold) from the purge VSV.
Start the engine.

Use your finger to confirm that the hose has suction.

RESULT

Result	Suspected Trouble Area	Refer to
Suction applied	EVAP hose between purge VSV and intake manifold normal	A
No suction	Intake manifold port EVAP hose between purge VSV and intake manifold	B

Reconnect the hose.

B → Refer to step 25

A: Refer to next step

INSPECT PURGE VSV

Fig 14: Inspecting Purge VSV

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the purge VSV.
Apply the battery voltage to the terminals of the purge VSV.

Confirm that air flows from port A to port B.

RESULT

Result	Condition	Suspected Trouble Area	Refer to
Air flows	Apply battery voltage to purge VSV terminals	-	A
No air flow	Apply battery voltage to purge VSV terminals	Purge VSV	B

Reinstall the purge VSV.

B → Refer to step 30

A: Refer to next step

CHECK HARNESS AND CONNECTOR (POWER SOURCE OF PURGE VSV)

Fig 15: Identifying Purge VSV Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the purge VSV connector.
Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

RESULT

Tester Connection	Switch Condition	Specified Condition	Suspected Trouble Area	Refer to
C3-2 - Body ground	Ignition Switch ON	11 to 14 V	Normal	A
C3-2 - Body ground	Ignition Switch ON	Other than result above	Wire harness or connectors between purge VSV and battery	B

Reconnect the purge VSV connector.

B → Refer to step 31

A: Refer to next step

CHECK HARNESS AND CONNECTOR (PURGE VSV - ECM)

Fig 16: Identifying Purge VSV And ECM Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the ECM connector.
Disconnect the purge VSV connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open)

Tester Connection	Condition	Specified Condition
C19-49 (PRG) - C3-1	Always	Below 1 Ω

Standard Resistance (Check for Short)

Tester Connection	Condition	Specified Condition
C19-49 (PRG) or C3-1 - Body ground	Always	10 kΩ or higher

Reconnect the ECM connector.
Reconnect the purge VSV connector.

OK → Refer to step 34

NG → Refer to step 31

INSPECT CANISTER PUMP MODULE (POWER SOURCE FOR VENT VALVE)

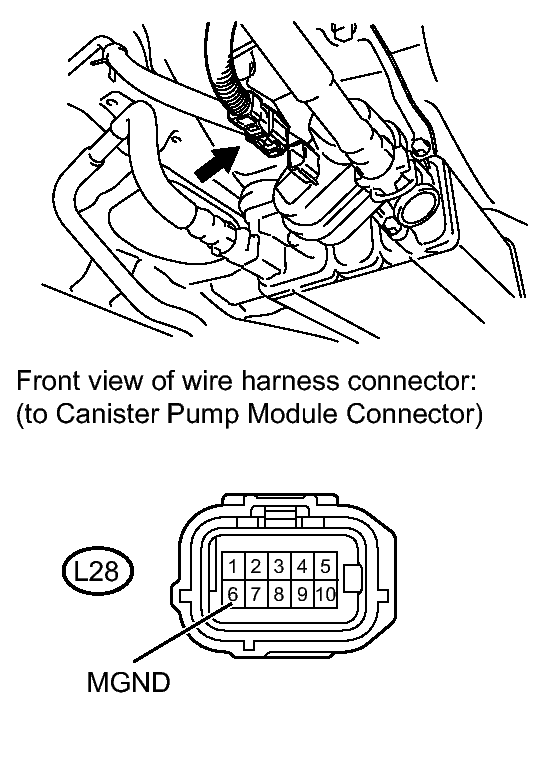

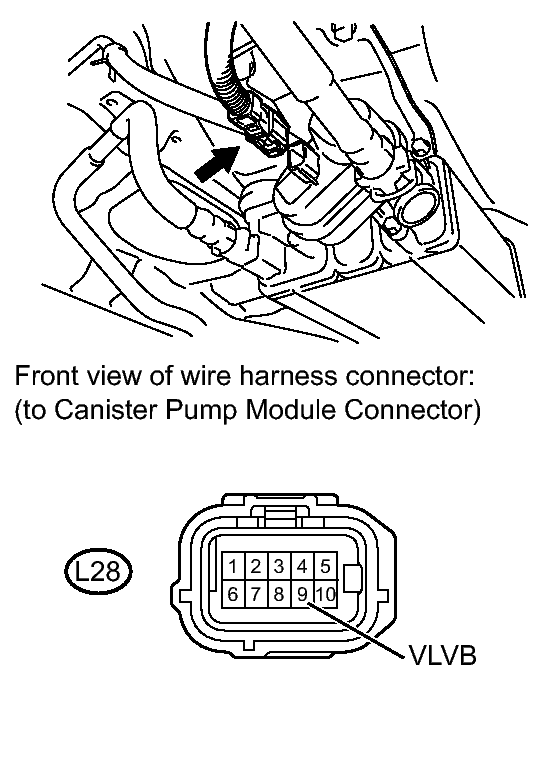

Fig 17: Identifying Canister Pump Module Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Turn the ignition switch off.
Disconnect the canister pump module connector.
Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

RESULT

Tester Connection	Switch Condition	Specified Condition	Suspected Trouble Area	Refer to
L28-9 (VLVB) - Body ground	Ignition switch ON	11 to 14 V	Wire harness between vent valve and ECM Vent valve ECM	A
Below 3 V	Power source wire harness of vent valve	B

Tester Connection

Switch Condition

Specified Condition

Suspected Trouble Area

Refer to

L28-9 (VLVB) - Body ground

Ignition switch ON

11 to 14 V

Wire harness between vent valve and ECM

Vent valve

Below 3 V

Power source wire harness of vent valve

Reconnect the canister pump module connector.

B → Refer to step 31

A: Refer to next step

INSPECT CANISTER PUMP MODULE (VENT VALVE OPERATION)

Fig 18: Identifying Canister Pump Module Connector Terminals

Turn the ignition switch off.
Disconnect the canister pump module connector.
Apply the battery voltage to VLVB and VGND terminals of the canister pump module.

Touch the canister pump module to confirm the vent valve operation.

RESULT

Result	Suspected Trouble Area	Refer to
Operating	Wire harness between vent valve and ECM ECM	A
Not operating	Vent valve	B

Reconnect the canister pump module connector.

B → Refer to step 29

A: Refer to next step

CHECK HARNESS AND CONNECTOR (ECM - CANISTER PUMP MODULE)

Fig 19: Identifying Canister Pump Module And ECM Connector Terminals

Disconnect the ECM connector.
Disconnect the canister pump module connector.

Measure the resistance according to the value(s) in the table below.

RESULT

Tester Connection	Condition	Specified Condition	Suspected Trouble Area	Refer to
A21-42 (VPMP) - L28-8 (VGND)	Always	Below 1 Ω	ECM	A
A21-42 (VPMP) - L28-8 (VGND)	Always	10 kΩ or higher	Wire harness between ECM and canister pump module	B

Reconnect the ECM connector.
Reconnect the canister pump module connector.

A → Refer to step 34

B → Refer to step 31

PERFORM ACTIVE TEST USING TECHSTREAM (FOR LEAK DETECTION PUMP)

Fig 20: Identifying Canister Pump Module Connector Terminals

Turn the ignition switch off.
Disconnect the canister pump module connector.
Turn the ignition switch to ON.
Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the Vacuum Pump.

Measure the voltage according to the value(s) in the table below.

RESULT

Tester Connection	Condition	Specified Condition	Suspected Trouble Area	Refer to
L28-1 (MTRB) - Body ground	Leak detection pump ON and OFF (Active Test ON and OFF)	Below 3 V when OFF 11 to 14 V when ON	Wire harness between leak detection pump and body ground Leak detection pump	A
Below 3 V when OFF and ON or 11 to 14 V when OFF and ON	Wire harness between leak detection pump and ECM ECM	B

Tester Connection

Condition

Specified Condition

Suspected Trouble Area

Refer to

L28-1 (MTRB) - Body ground

Leak detection pump ON and OFF
(Active Test ON and OFF)

Below 3 V when OFF
11 to 14 V when ON

Wire harness between leak detection pump and body ground

Leak detection pump

Below 3 V when OFF and ON
or
11 to 14 V when OFF and ON

Wire harness between leak detection pump and ECM

Reconnect the canister pump module connector.

B → Refer to step 24

A: Refer to next step

CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - BODY GROUND)

Fig 21: Identifying Canister Pump Module Connector Terminals

Turn the ignition switch off.
Disconnect the canister pump module connector.

Measure the resistance according to the value(s) in the table below.

RESULT

Tester Connection	Condition	Specified Condition	Suspected Trouble Area	Refer to
L28-6 (MGND) - Body ground	Always	Below 1 Ω	Leak detection pump	A
L28-6 (MGND) - Body ground	Always	10 kΩ or higher	Wire harness between canister pump module and body ground	B

Reconnect the canister pump module connector.

A → Refer to step 29

B → Refer to step 31

CHECK HARNESS AND CONNECTOR (ECM - CANISTER PUMP MODULE)

Fig 22: Identifying Canister Pump Module And ECM Connector Terminals

Turn the ignition switch off.
Disconnect the ECM connector.
Disconnect the canister pump module connector.

Measure the resistance according to the value(s) in the table below.

RESULT

Tester Connection	Condition	Specified Condition	Suspected Trouble Area	Refer to
A21-34 (MPMP) - L28-1 (MTRB)	Always	Below 1 Ω	ECM	A
A21-34 (MPMP) - L28-1 (MTRB)	Always	10 kΩ or higher	Wire harness between ECM and canister pump module	B

Reconnect the ECM connector.
Reconnect the canister pump module connector.

A → Refer to step 34

B → Refer to step 31

INSPECT INTAKE MANIFOLD (EVAP PURGE PORT)

Stop the engine.
Disconnect the EVAP hose from the intake manifold.
Start the engine.

Use your finger to confirm that the port of the intake manifold has suction.

RESULT

Result	Suspected Trouble Area	Refer to
Suction applied	EVAP hose between intake manifold and purge VSV	A
No suction	Intake manifold	B

Reconnect the EVAP hose.

A → Refer to step 32

B → Refer to step 33

CORRECTLY REINSTALL OR REPLACE FUEL TANK CAP
HINT:
- When reinstalling the fuel tank cap, tighten it until a few click sounds are heard.
- When replacing the fuel tank cap, use a fuel tank cap that meets OEM specifications, and install it until a few click sounds are heard.
NEXT → Refer to step 36
REPLACE FUEL TANK CAP
HINT:

When replacing the fuel cap, use a fuel cap that meets OEM specifications, and install it until a few click sounds are heard.

NEXT → Refer to step 36
LOCATE EVAP LEAK PART

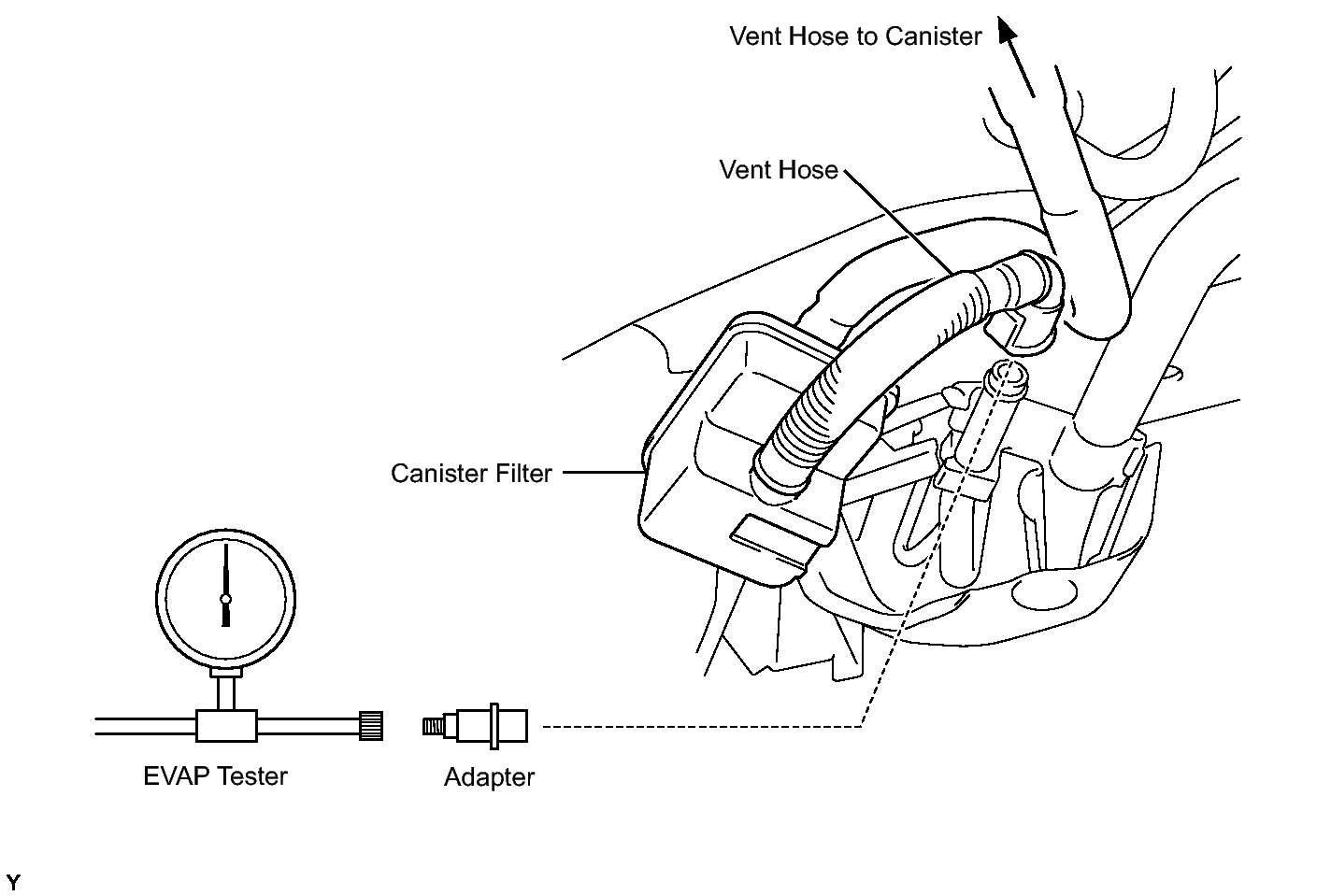

Fig 23: Identifying Vent Hose, Canister Filter And EVAP Tester
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the vent hose.
2. Connect an EVAP tester to the canister pump module with the adapter.
3. Pressurize the EVAP system to 3.2 to 3.7 kPa (24 to 28 mmHg).
4. Apply soapy water to the piping and connecting parts of the EVAP system.
5. Look for areas where bubbles appear. This indicates a leak point.
6. Repair or replace the leak point.
  HINT:

  Disconnect the hose between the canister and the fuel tank from the canister. Block the canister side and conduct an inspection. In this way, the fuel tank can be excluded as an area suspected of causing fuel leaks.
NEXT → Refer to step 36
REPLACE CANISTER ASSEMBLY
1. Replace the canister assembly. Refer to REMOVAL .
  NOTE:
  When replacing the canister, check the canister pump module interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; and 3) the fuel tank vent hose.

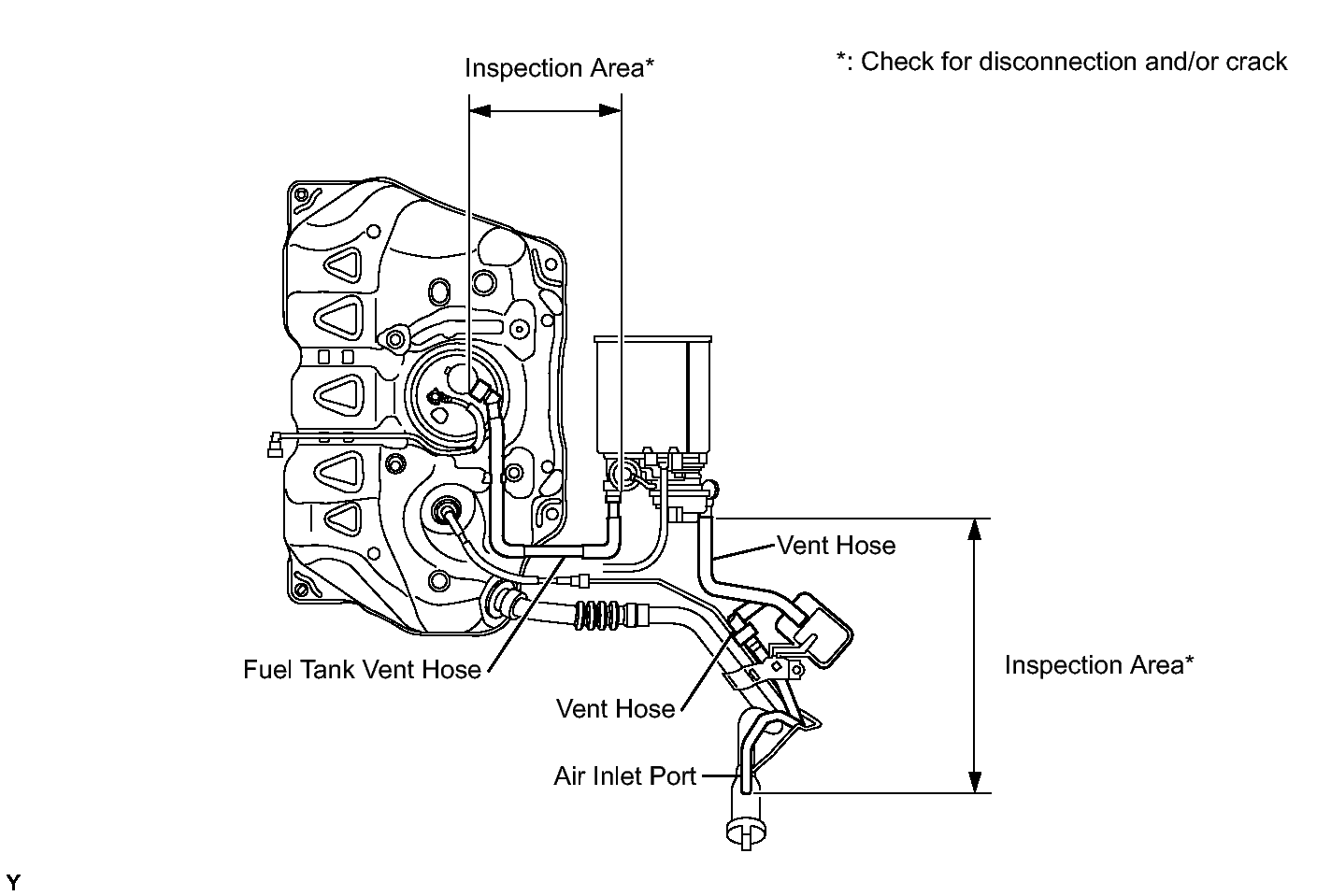

  Fig 24: Identifying Canister Assembly Inspection Area
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NEXT → Refer to step 36
REPLACE PURGE VSV

Fig 25: Identifying Purge VSV
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the connector and the hoses from the purge VSV.
2. Remove the purge VSV.
3. Install a new purge VSV.
4. Reconnect the connector and hoses.
NEXT → Refer to step 36
REPAIR OR REPLACE HARNESS OR CONNECTOR
NEXT → Refer to step 36
REPLACE PURGE LINE HOSE (INTAKE MANIFOLD - PURGE VSV)
NEXT → Refer to step 36
INSPECT INTAKE MANIFOLD (EVAP PURGE PORT)
1. Check that the EVAP purge port of the intake manifold is not clogged. If necessary, replace the intake manifold.
NEXT → Refer to step 36
REPLACE ECM
1. Replace the ECM. Refer to REMOVAL .
NEXT → Refer to step 36
REPAIR OR REPLACE PARTS AND COMPONENTS INDICATED BY OUTPUT DTCS
1. Repair the malfunctioning areas indicated by the DTCs that had been confirmed when the vehicle was brought in.
NEXT → Refer to step 36
PERFORM EVAPORATIVE SYSTEM CHECK (AUTOMATIC MODE)
NOTE:
- The Evaporative System Check (Automatic Mode) consists of five steps performed automatically by the Techstream. It takes a maximum of approximately 19 minutes.
- Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed. If the cut-off valve is closed, the fuel tank leak check is not possible.
- Do not run the engine during this operation.
- When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing an Evaporative System Check, keep the temperature below 35°C (95°F).
1. Clear DTCs. Refer to DTC CHECK / CLEAR .
2. Enter the following menus: Powertrain / Engine and ECT / Utility / Evaporative System Check / Automatic Mode.
3. After the Evaporative System Check is completed, check for pending DTCs by selecting the following menu items: Powertrain / Engine and ECT / Trouble Codes / Pending.
  HINT:

  If no pending DTCs are found, the repair has been successfully completed.
NEXT → END
