Section 107 (OEM System Circuits): Starting: Notes

WARNING: This page is about a different car, the 2010 Scion xD. However, it is still accessible from the selected car via links, so may be relevant.

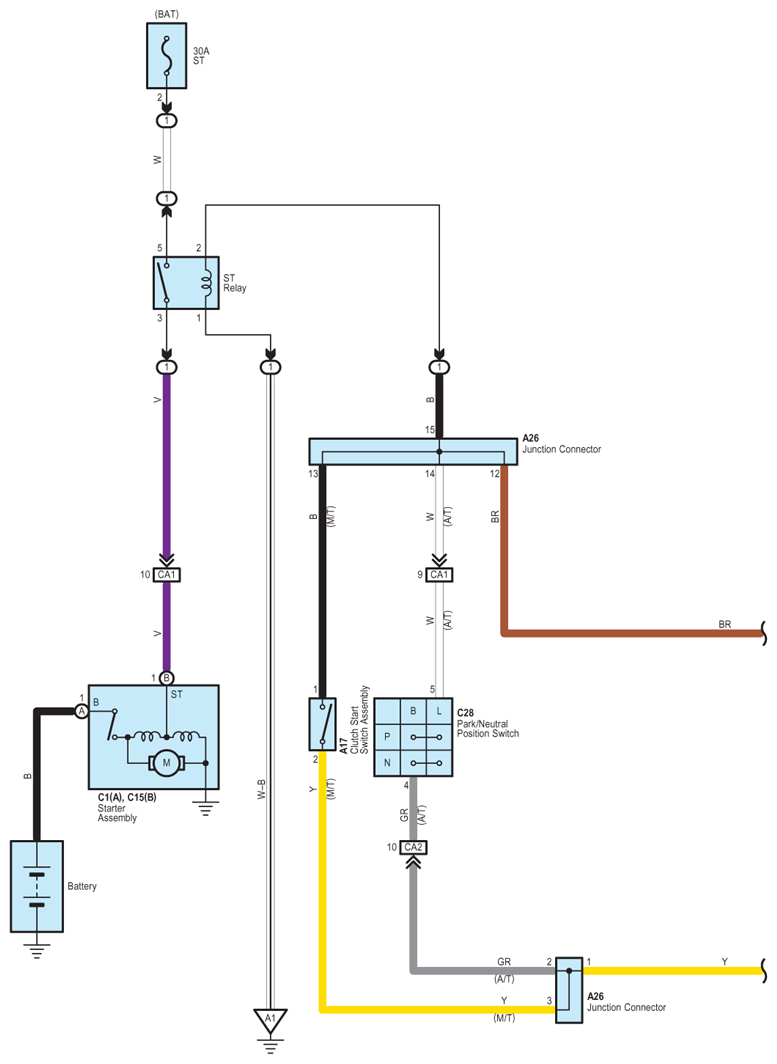

Fig 1: Starting - Circuit Diagram (1 Of 2)
G07571110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

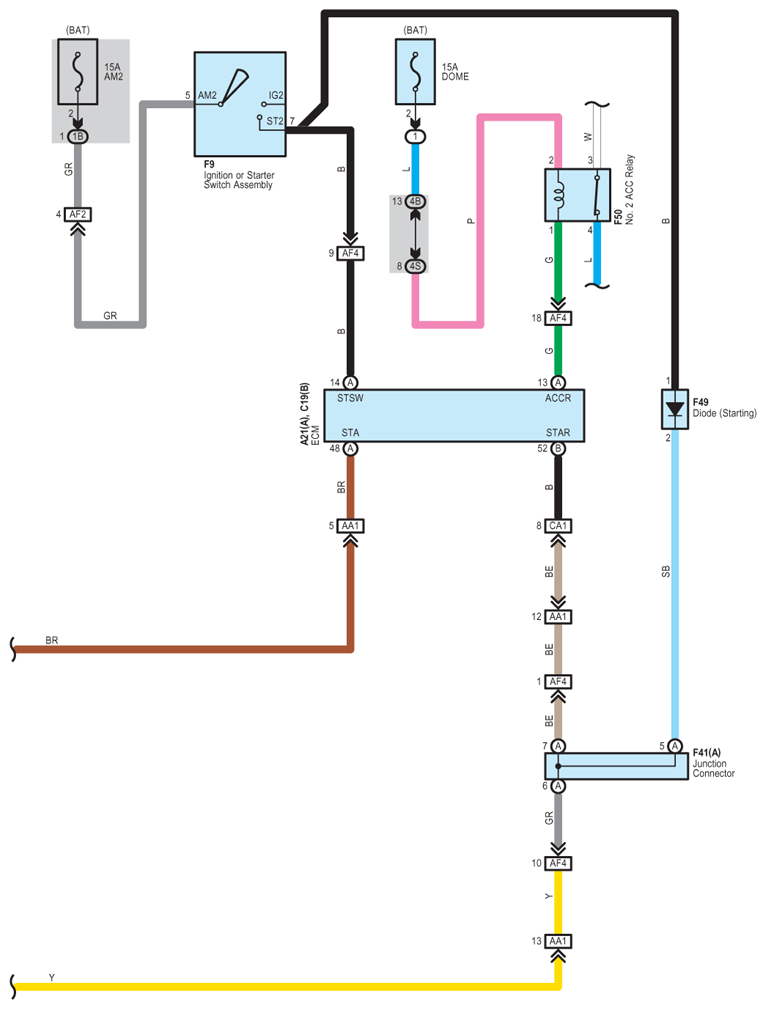

Fig 2: Starting - Circuit Diagram (2 Of 2)
G07571111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
