Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch: Wiring Diagram

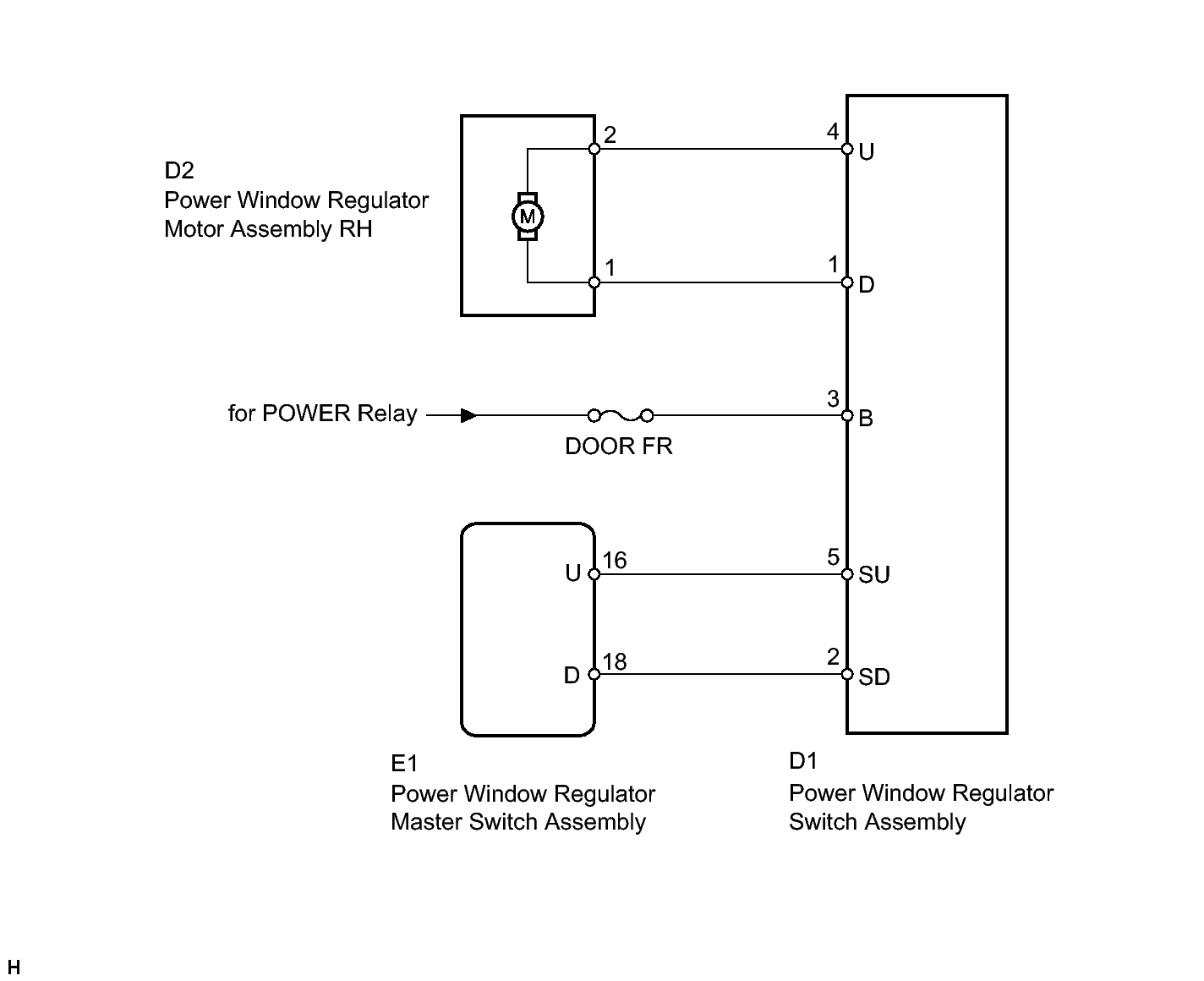

Fig 1: Power Window Regulator Switch Assembly - Wiring Diagram
GTY313879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
