System Diagram





NETWORKING: LIN COMMUNICATION SYSTEM: SYSTEM DIAGRAM

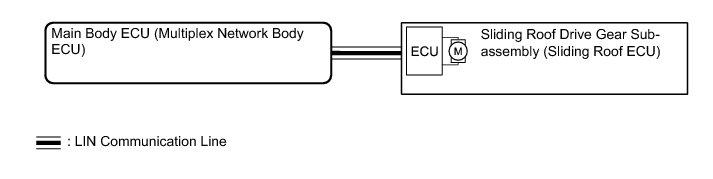

1. DOOR BUS LINES (W/ Sliding Roof System)

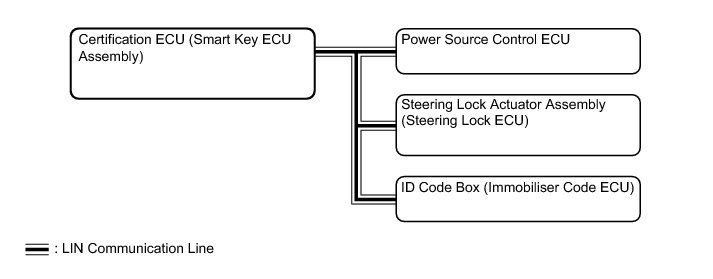

2. CERTIFICATION BUS LINES (W/ Smart Key System)
