Service Data





SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: SERVICE DATA

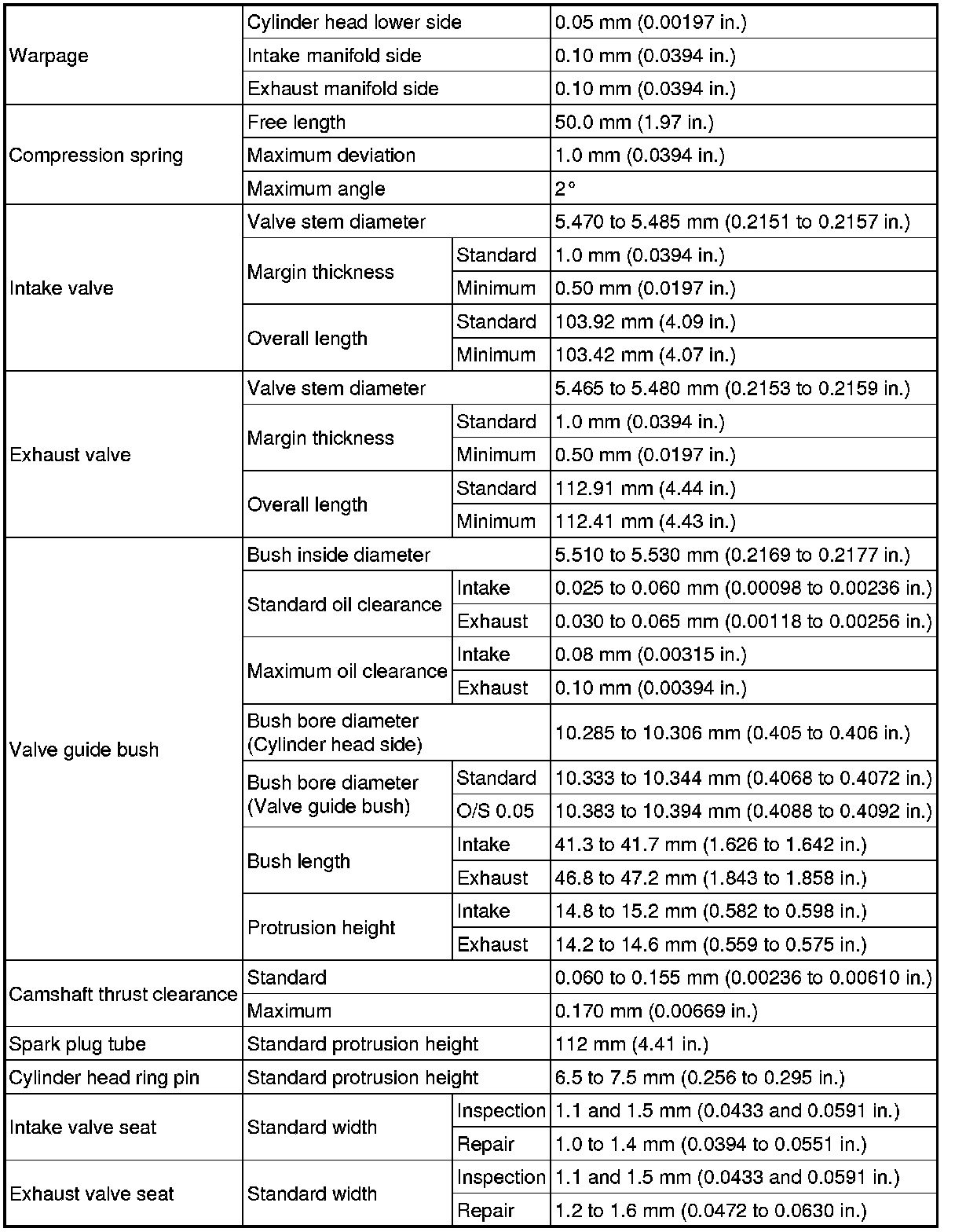

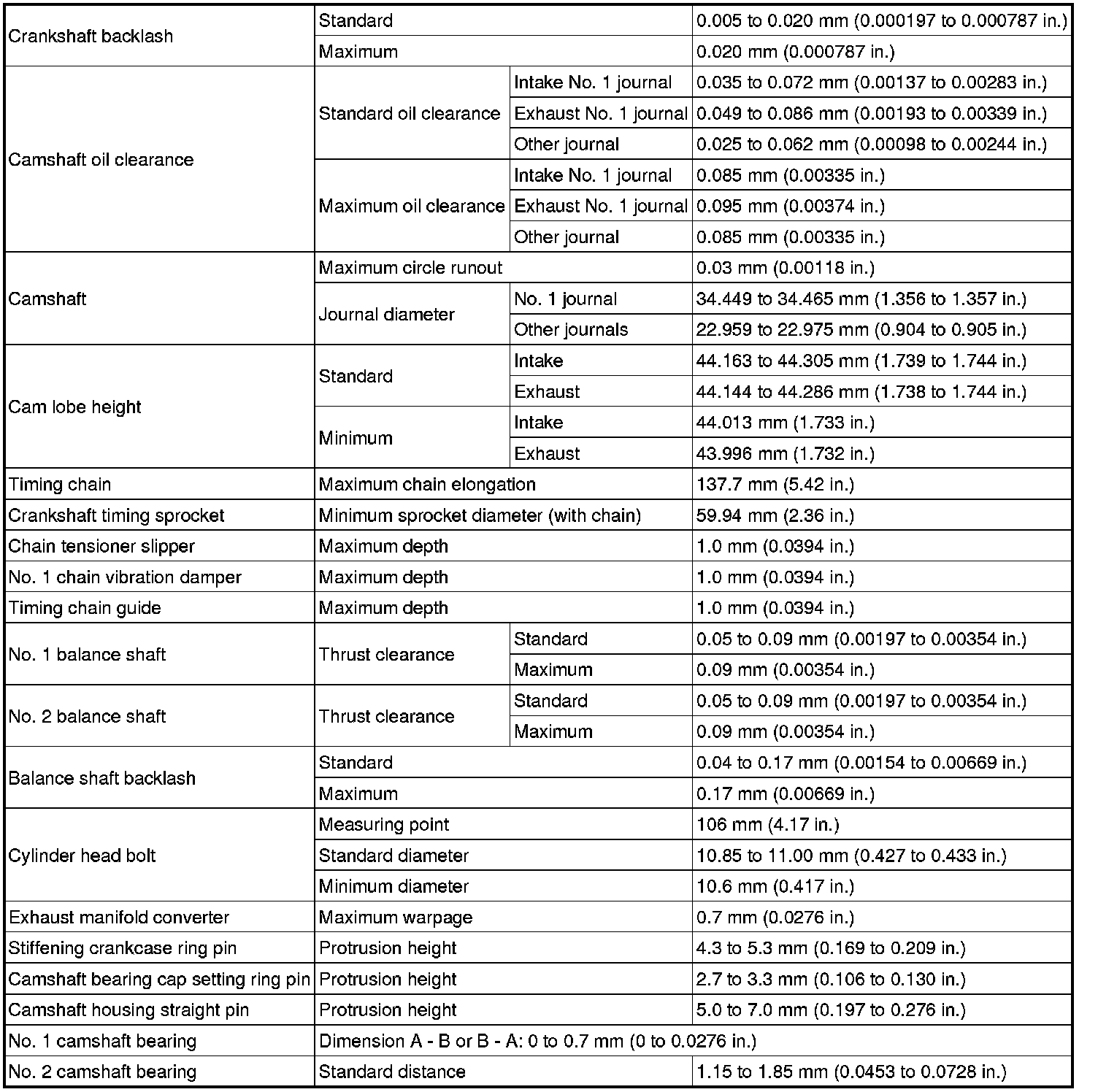

Cylinder Head

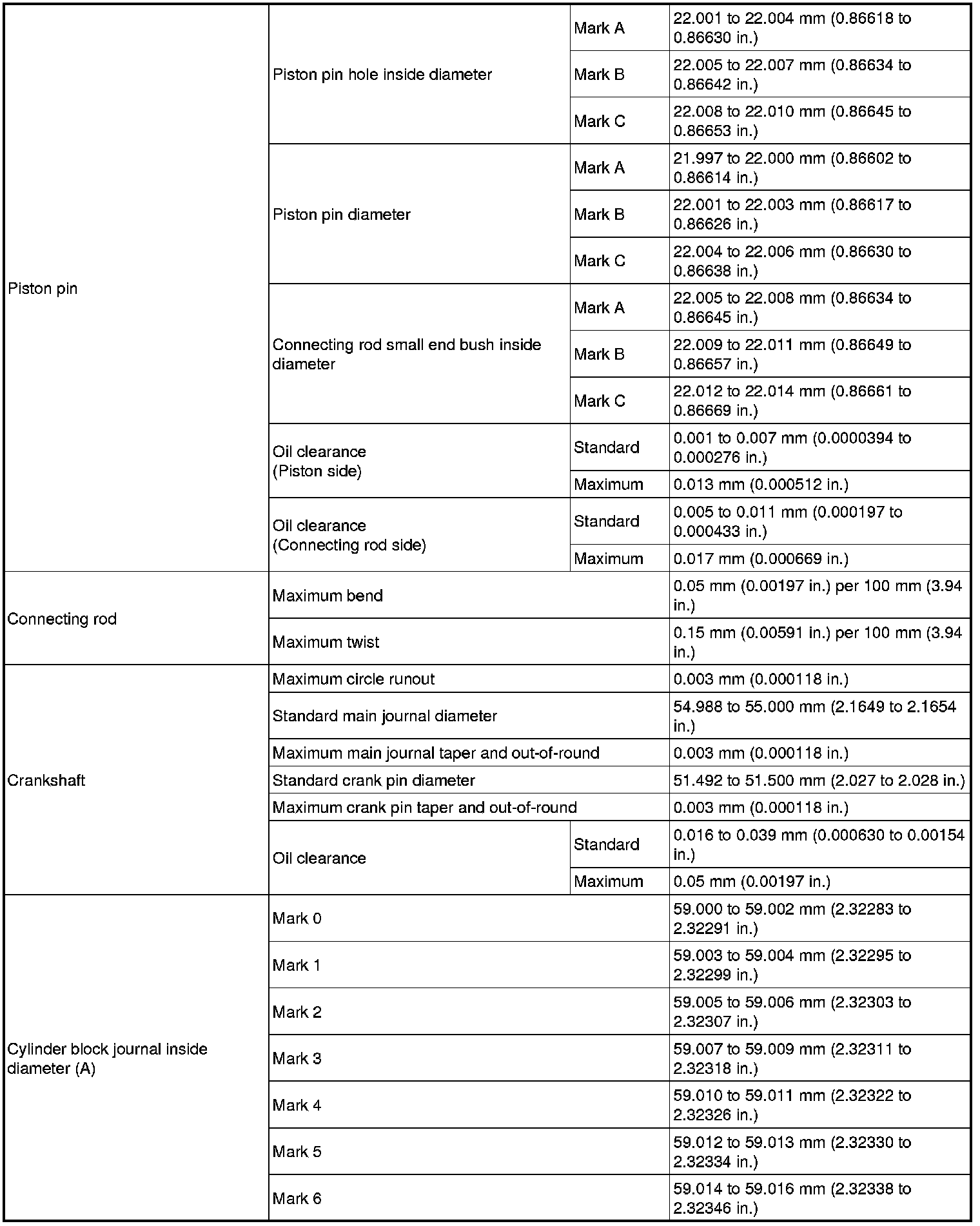

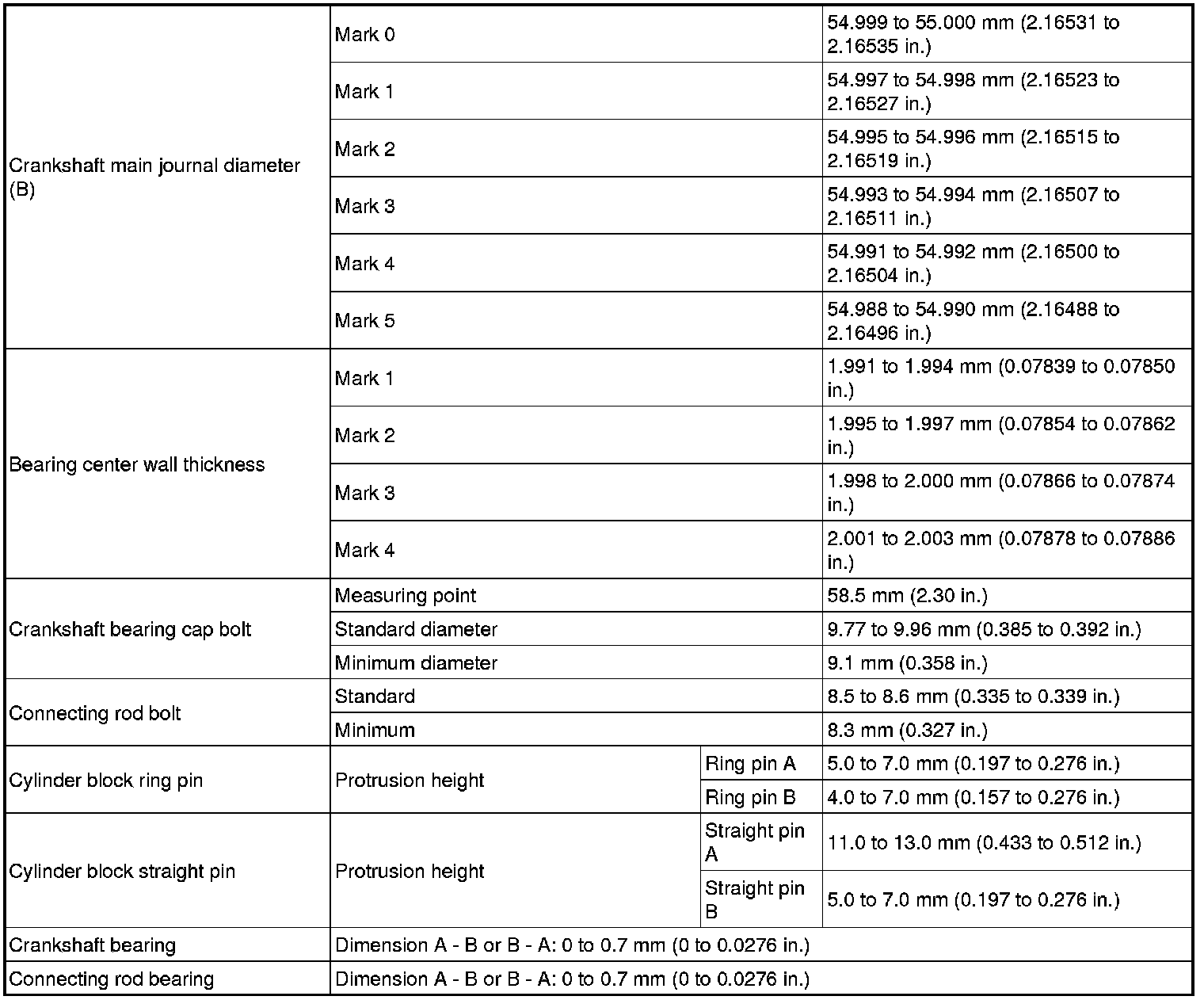

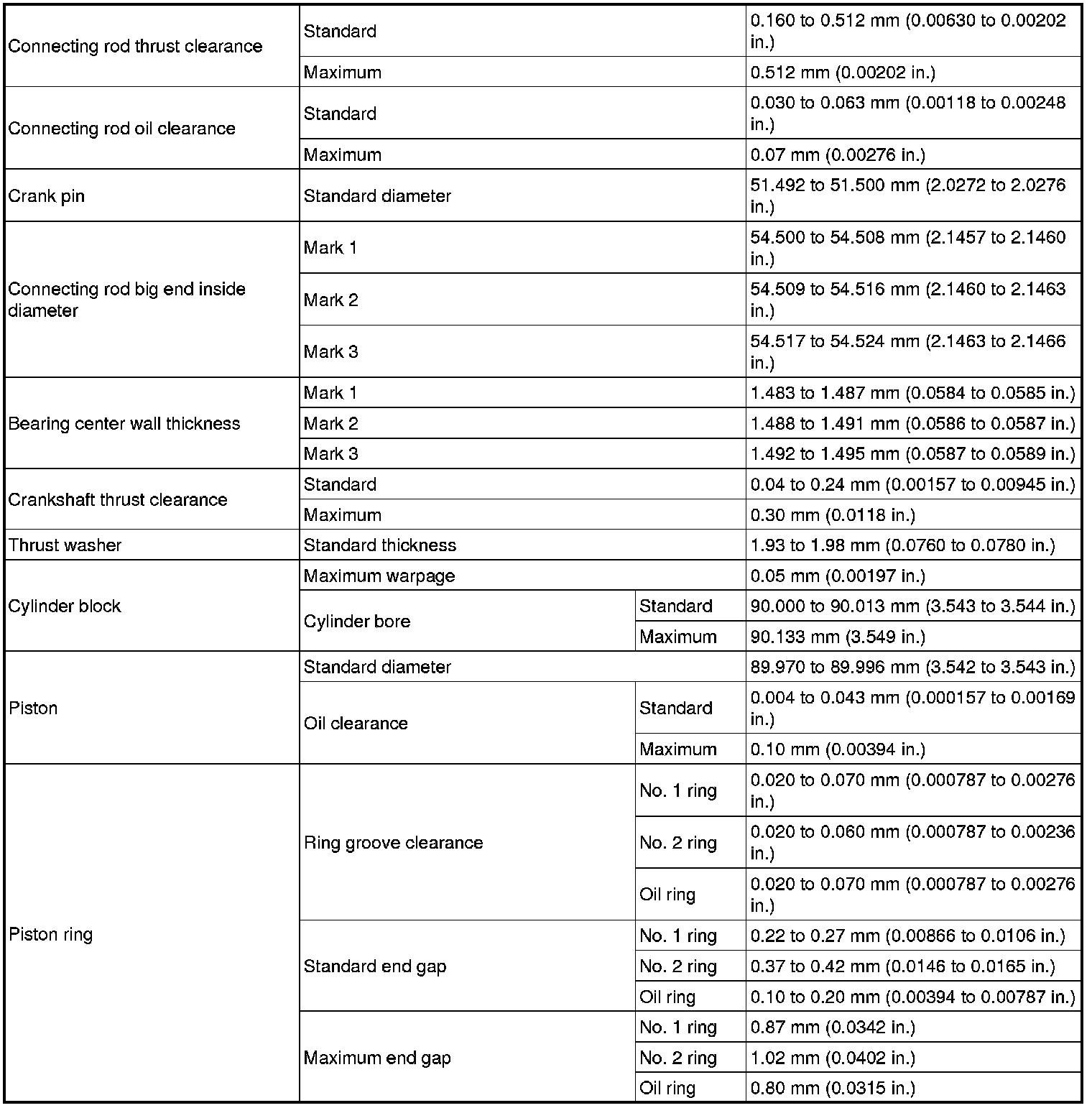

Cylinder Block













Engine Unit
