DTC B1786: Front Occupant Classification Sensor RH Collision Detection
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC B1786: Front Occupant Classification Sensor RH Collision Detection: Wiring Diagram

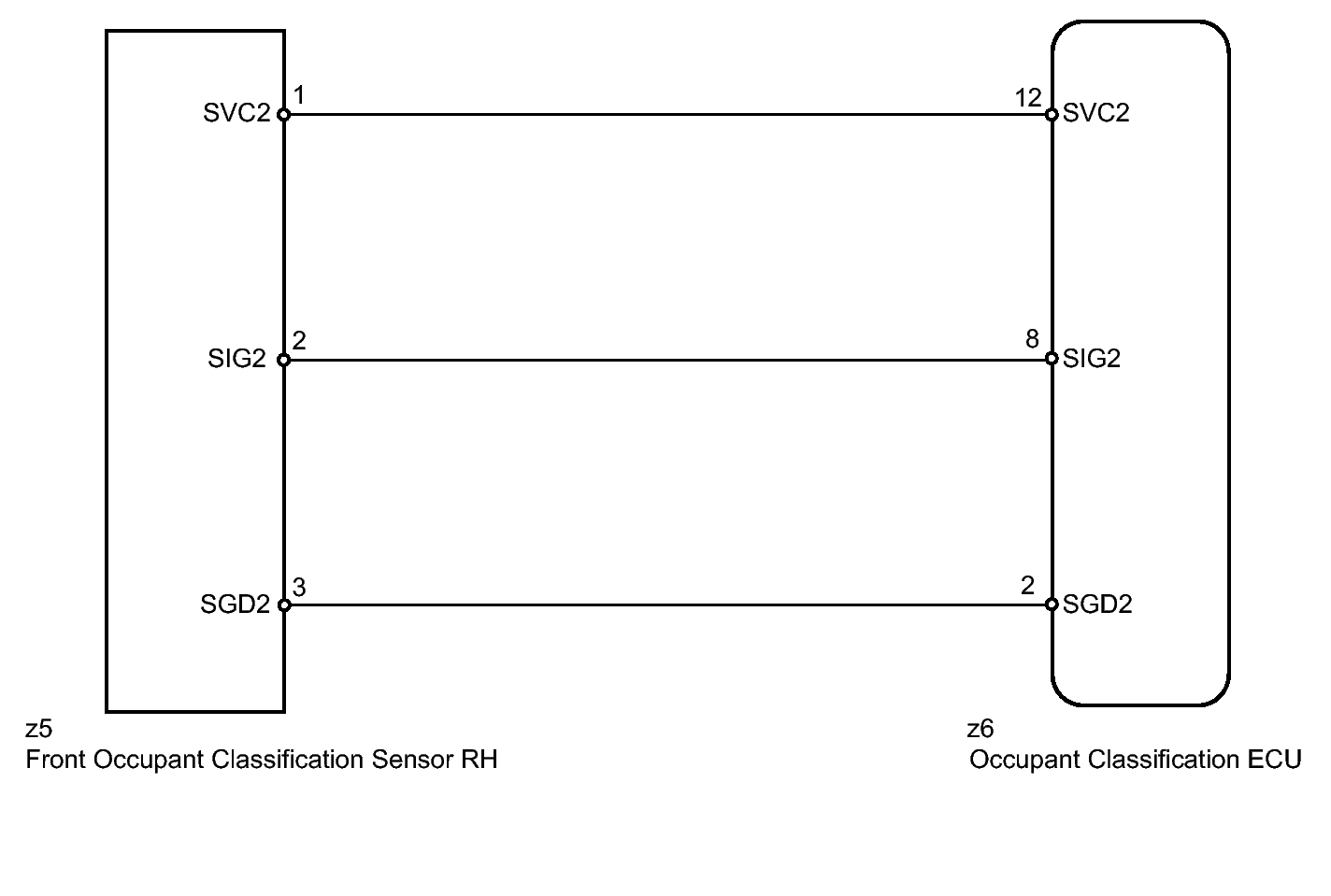

Fig 1: Front Occupant Classification Sensor (RH) Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
