Fuel Tank: Components: Illustration

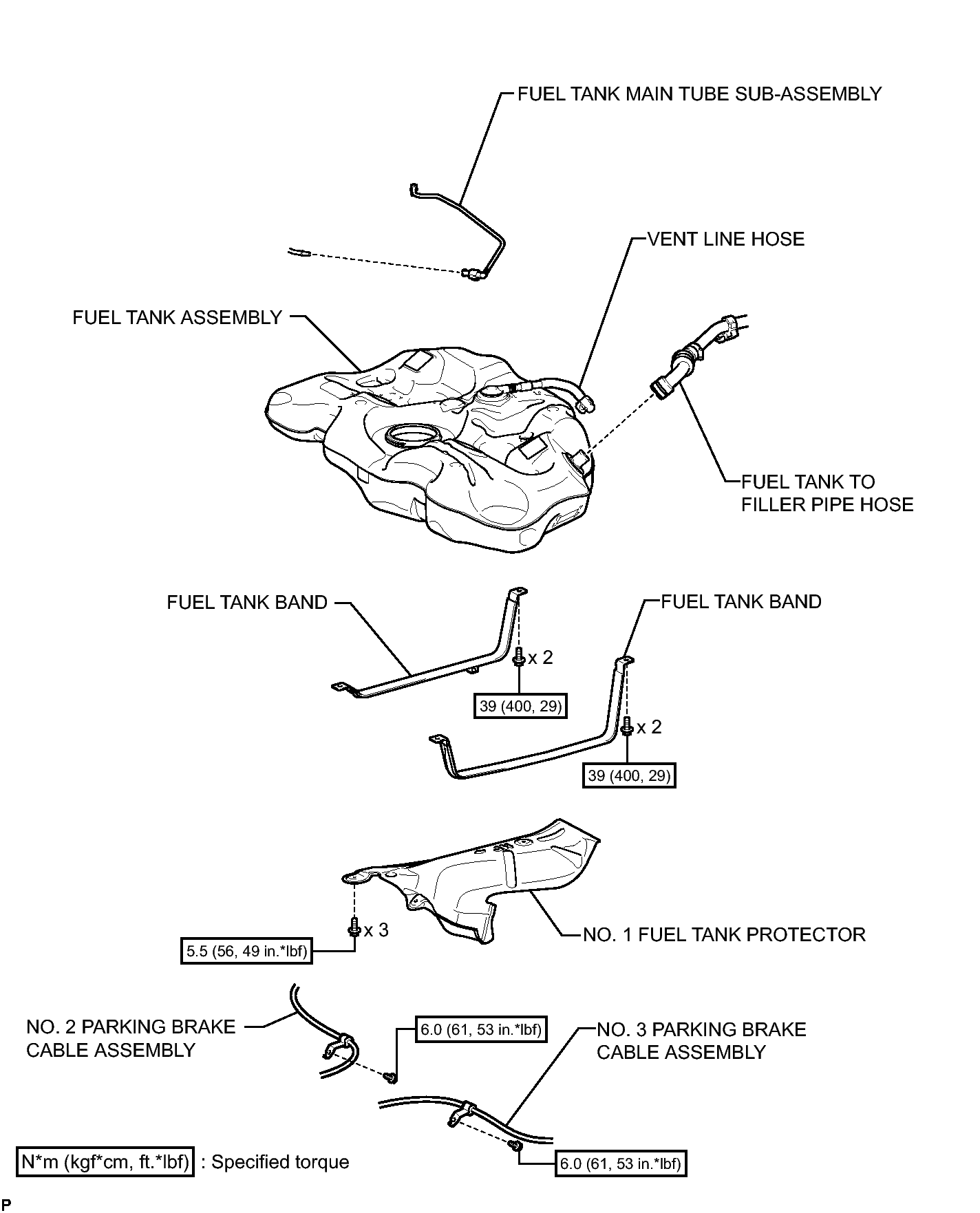

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications
GTY310124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
