Fuel Tank: Installation: Installation

1. Set the fuel tank onto an engine lifter.
2. Operate the engine lifter, and then install the fuel tank to the vehicle.
3. Install the 2 fuel tank bands with the 4 bolts.

   Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

4. Connect the fuel tank to filler pipe hose to the fuel tank, and then tighten the hose clamp.

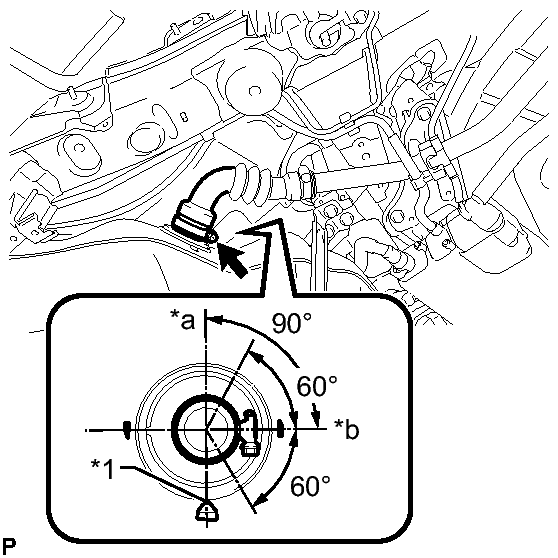

   Fig 1: Identifying Hose Clamp Installation Angle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Mark
   *a	Up
   *b	RH Side

   NOTE:

   Make sure that the mark and hose clamp are at the correct angle during installation.

   HINT:

   Tighten the hose clamp until the end of the hose clamp is within 2.0 mm (0.0787 in.) on either side of the position where it contacts the stopper as shown in the illustration.

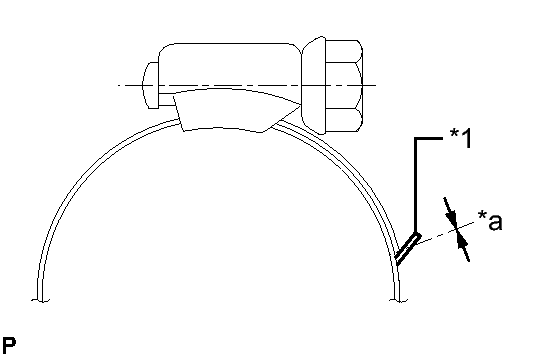

   Fig 2: Identifying Hose Clamp Measuring Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Stopper
   *a	-2.0 to 2.0 mm (-0.0787 to 0.0787 in.)

5. Connect the vent line hose.

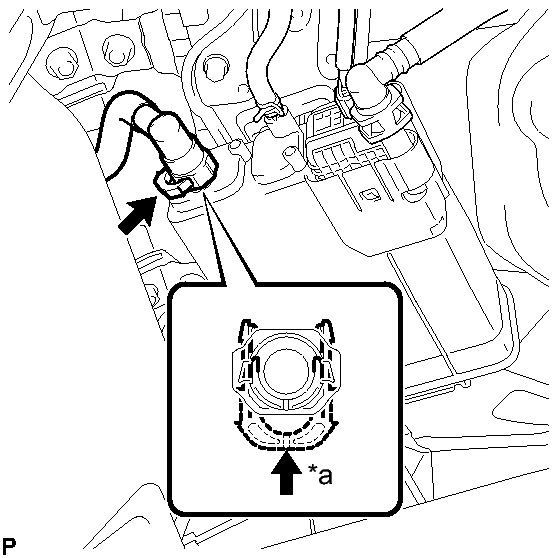

   Fig 3: Connecting The Vent Line Hose

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a

   Push

6. Connect the No. 2 parking brake cable assembly and No. 3 parking brake cable assembly with the 2 bolts.

   Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

Refer to PRECAUTION

1. Install the No. 1 fuel tank protector with the 3 bolts.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Refer to INSTALLATION

Refer to INSTALLATION
