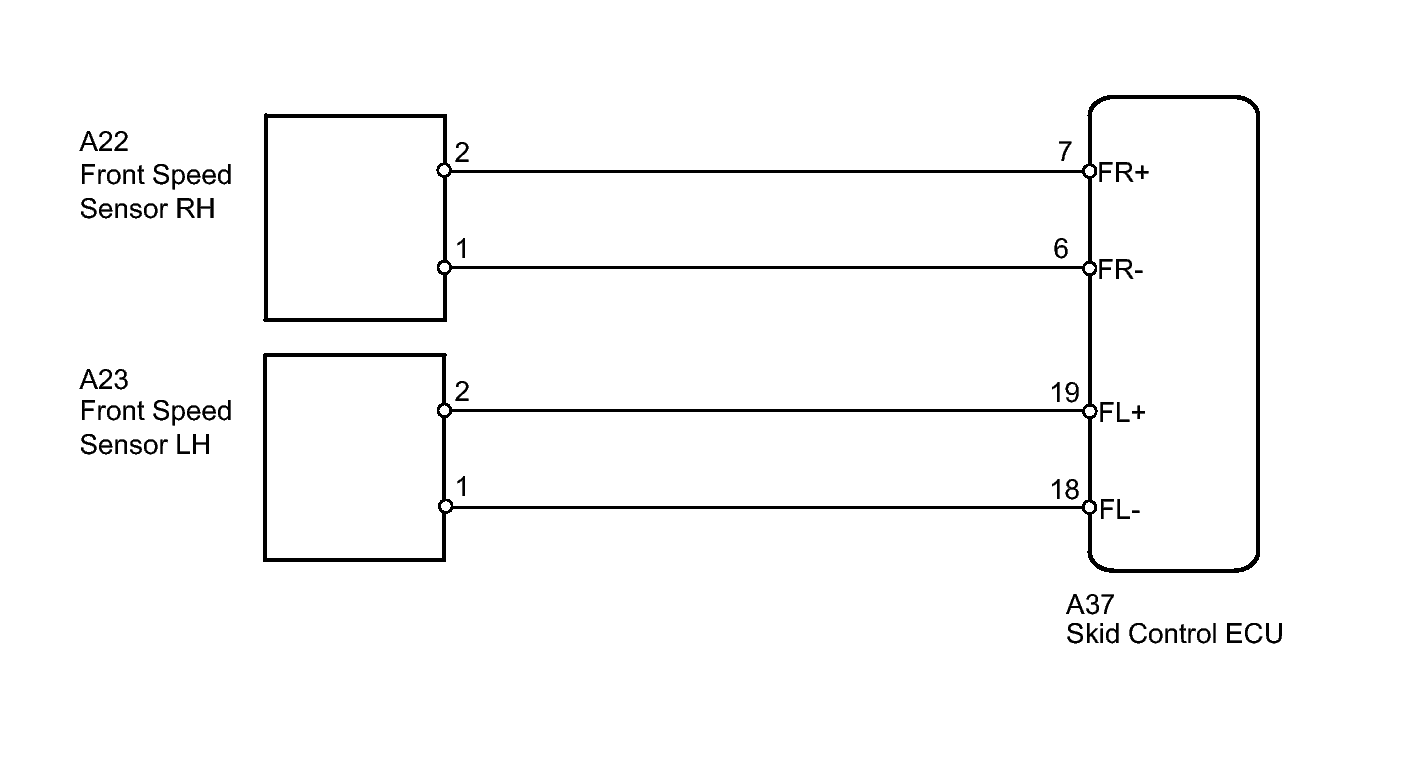

DTC C0200/31: Front Speed Sensor RH Circuit; DTC C0205/32: Front Speed Sensor LH Circuit; DTC C1271/71: Low Output Signal of Front Speed Sensor RH (Test Mode DTC); DTC C1272/72: Low Output Signal of Front Speed Sensor LH (Test Mode DTC): Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
