Camshaft Position Sensor: Removal: Removal

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY  See step  2
  2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH NO. 1 AIR CLEANER HOSE  See step  3
  3. REMOVE CAMSHAFT POSITION SENSOR

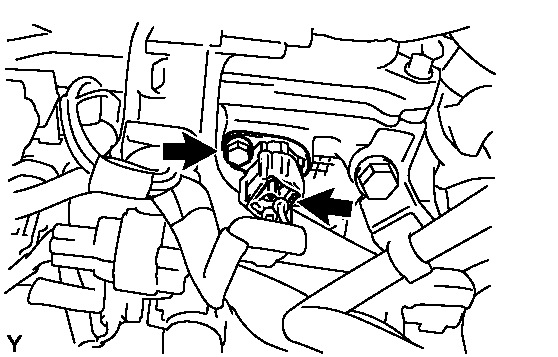

    Fig 1: Locating Camshaft Position Sensor Bolt
    GTY160931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
