Heated Oxygen Sensor: Inspection: Inspection

  1. INSPECT HEATED OXYGEN SENSOR

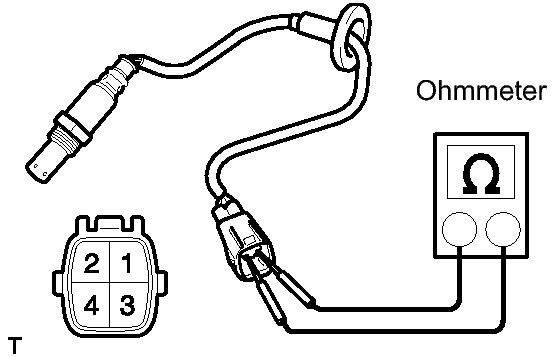

    Fig 1: Measuring Resistance Between Heated Oxygen Sensor Terminals
    GTY161071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      1 (HT1B) - 2 (+B) 20°C (68°F) 11 to 16 Ω
      1 (HT1B) - 4 (E2) Always 10 kΩ or higher

      If the result is not as specified, replace the heated oxygen sensor.
