DTC B2285: Steering Lock Position Signal Circuit Malfunction: Wiring Diagram

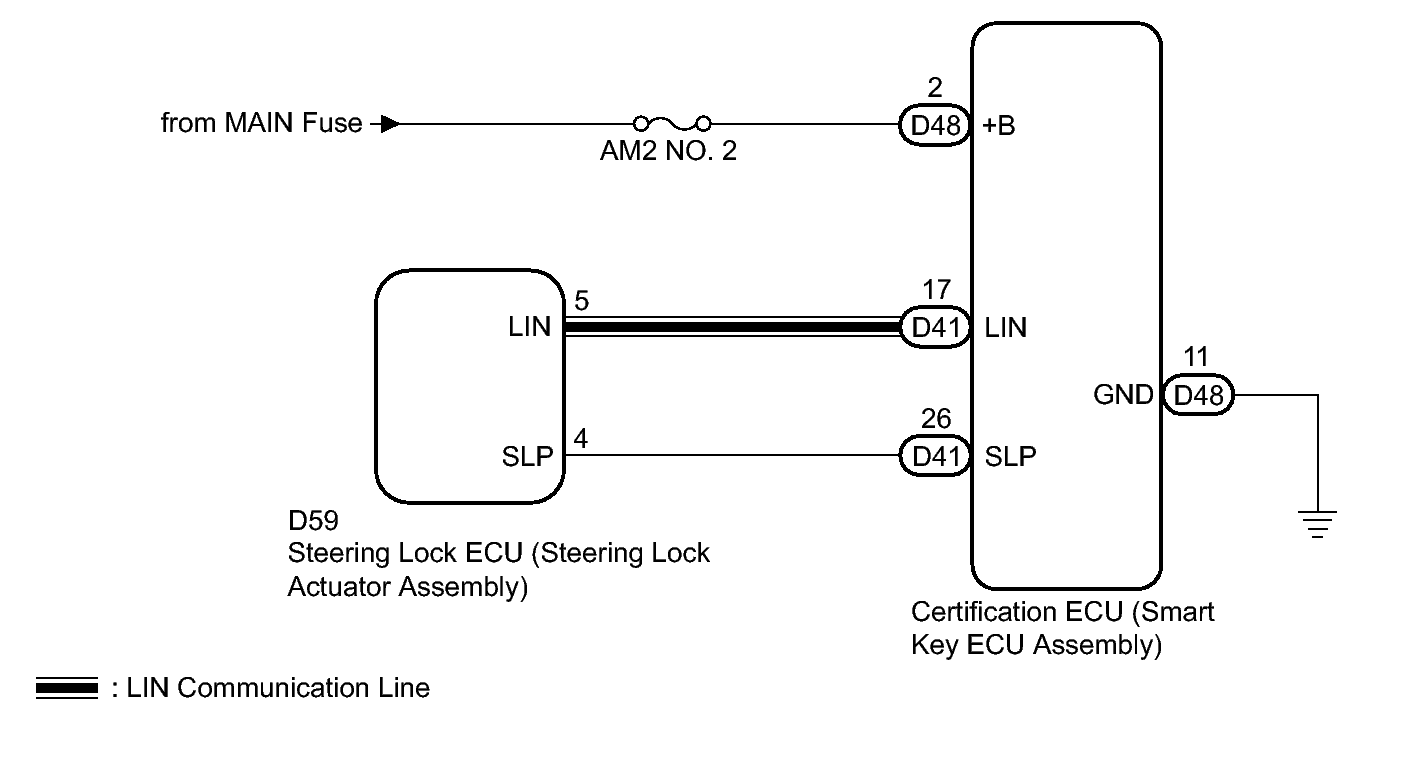

Fig 1: Identifying Steering Lock Position Signal Circuit Wiring Diagram
GTY389008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
