Instrument Panel Junction Block Assembly - Instrument Panel Reinforcement: Notes

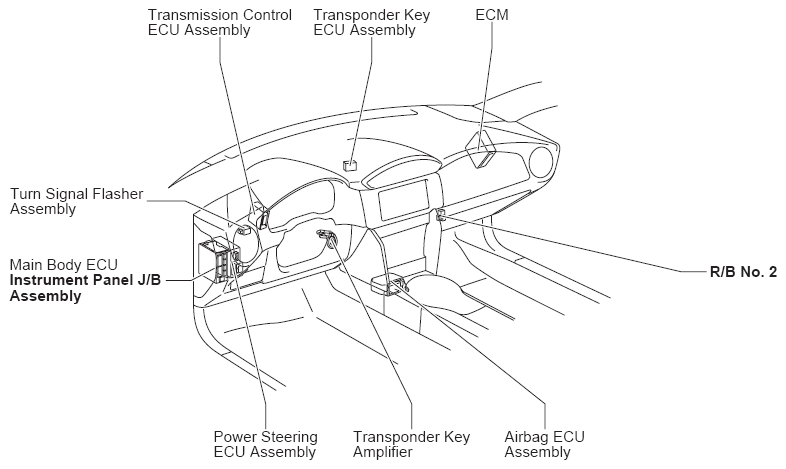

For additional information, refer to Figure.
INSTRUMENT PANEL J/B FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | AM1 | Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock |
| Starting | ||
| 7.5A | BK/UP LP | ABS, TRAC and VSC |
| Back-Up Light | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock | ||
| Luggage Compartment Door Opener | ||
| 7.5A | GAUGE | ABS, TRAC and VSC |
| Air Conditioning | ||
| Charging | ||
| Clock | ||
| Combination Meter | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock | ||
| Engine Immobiliser System | ||
| EPS | ||
| Headlight | ||
| Illumination and Taillight | ||
| Key Reminder and Light Reminder | ||
| Seat Belt Warning | ||
| SRS | ||
| Tire Pressure Warning System | ||
| Turn Signal and Hazard Warning Light | ||
| 7.5A | HEATER-S | Air Conditioning |
| 7.5A | OBD | Data Link Connector 3 |
| 7.5A | RADIO | Audio System |
| Clock | ||
| Seat Belt Warning | ||
| SRS | ||
| 7.5A | STOP | ABS, TRAC and VSC |
| Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock | ||
| Stop Light | ||
| 10A | ECU ACC | ABS, TRAC and VSC |
| Air Conditioning | ||
| Combination Meter | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock | ||
| Door Lock Control | ||
| Engine Immobiliser System | ||
| Headlight | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder and Light Reminder | ||
| Luggage Compartment Door Opener | ||
| Mirror Heater and Rear Window Defogger | ||
| Power Window | ||
| Remote Control Mirror | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control | ||
| 10A | ECU IG1 | ABS, TRAC and VSC |
| Air Conditioning | ||
| Combination Meter | ||
| Cooling Fan | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock | ||
| Door Lock Control | ||
| Engine Immobiliser System | ||
| EPS | ||
| Headlight | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder and Light Reminder | ||
| Luggage Compartment Door Opener | ||
| Mirror Heater and Rear Window Defogger | ||
| Power Window | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control | ||
| 10A | ECU IG2 | Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock |
| Data Link Connector 3 | ||
| 10A | HEATER | Air Conditioning |
| Cooling Fan | ||
| Mirror Heater and Rear Window Defogger | ||
| 10A | PANEL | Illumination and Taillight |
| 10A | TAIL | Illumination and Taillight |
| 15A | ANP | Audio System |
| 15A | AT UNIT | Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock |
| 15A | P/POINT NO.1 | Power Outlet |
| 15A | P/POINT NO.2 | Power Outlet |
