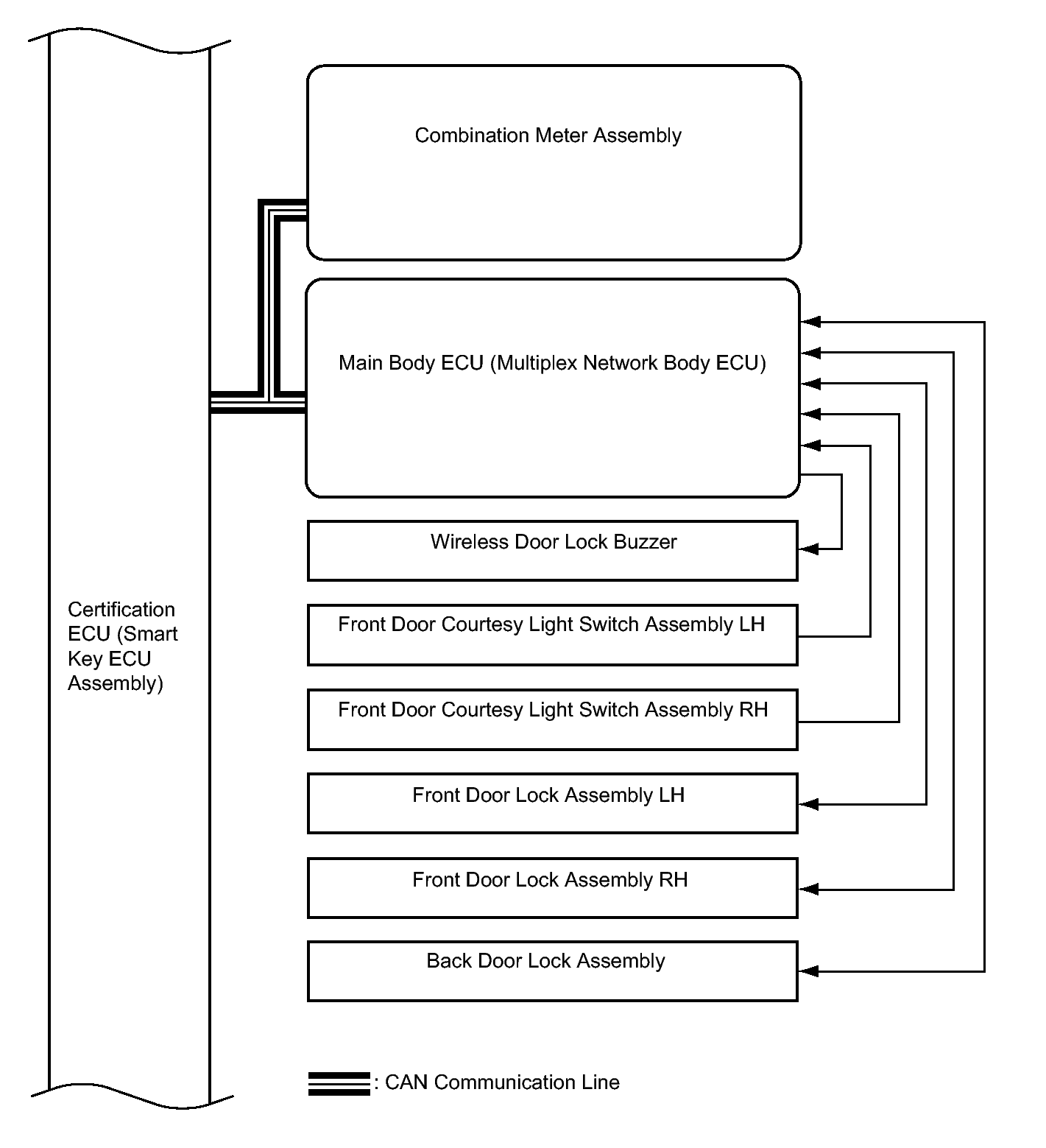

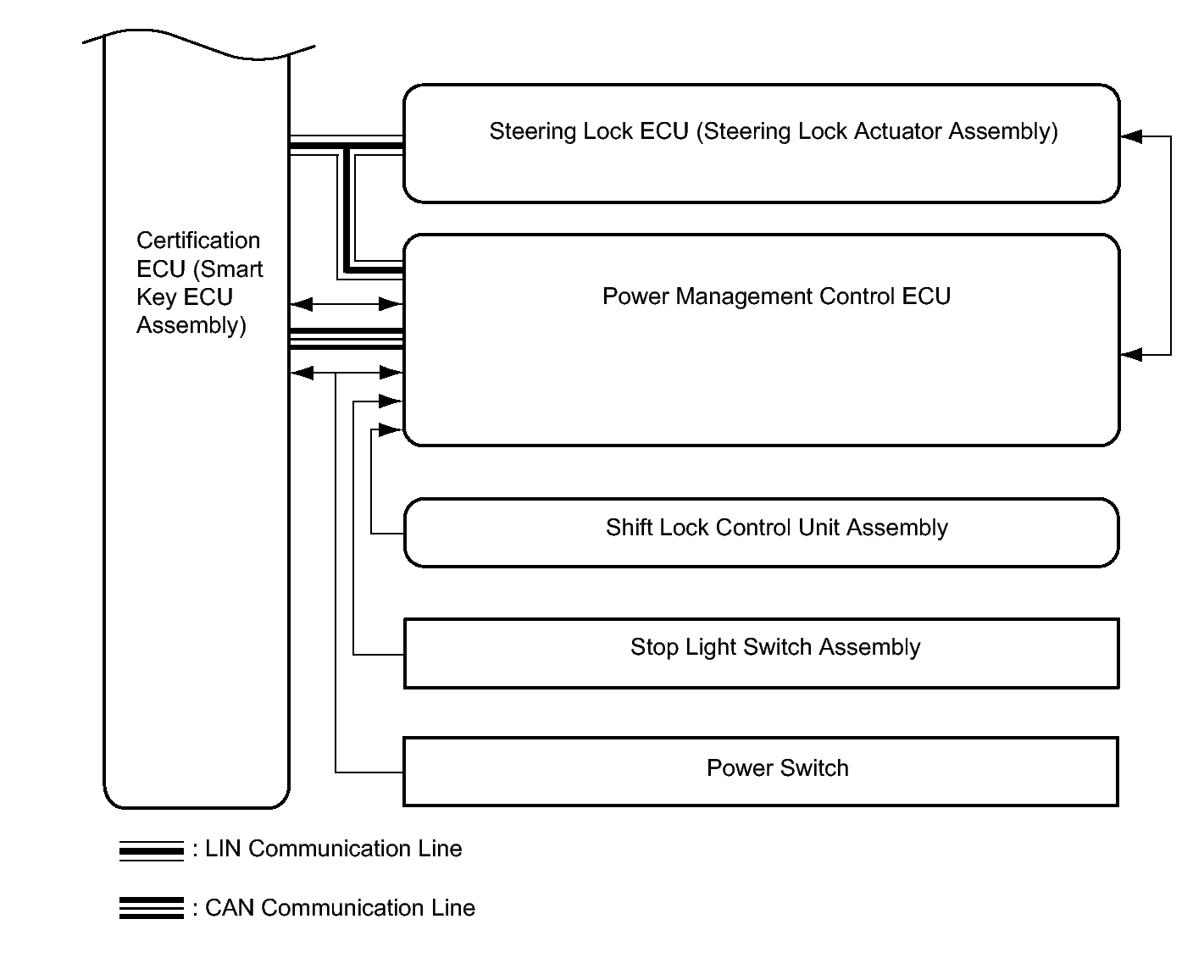

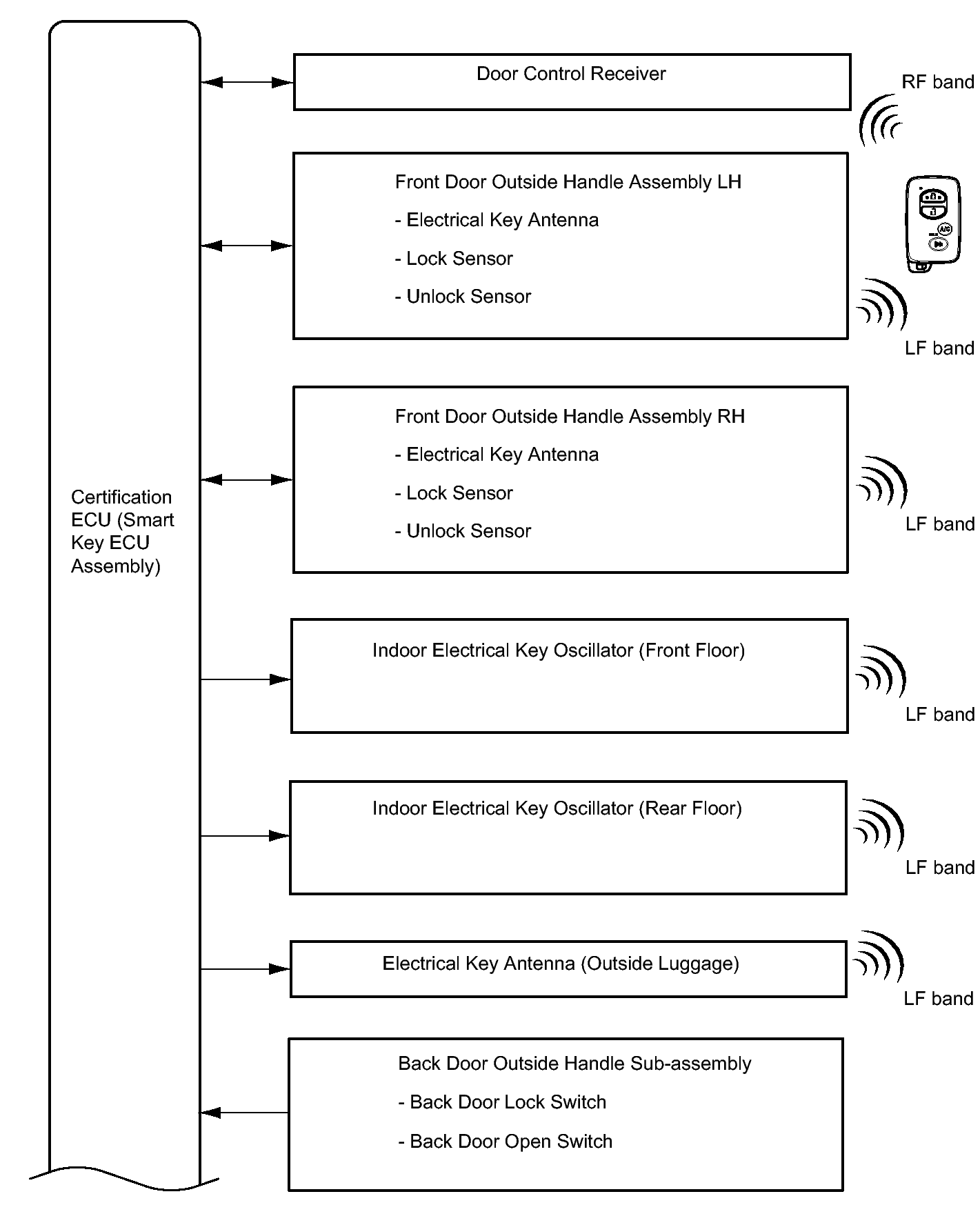

System Description

The following pattern will be used: "Operation" indicates user operation using the smart key system. "Expected operation of the vehicle" indicates how a known good vehicle will react in accordance with each operation. "Suspected Area/Diagnosis" indicates suspected malfunctioning areas and tips for each diagnosis if the vehicle did not react as expected.

1. Example: Operation No.

   Operation	-
   Expected operation of the vehicle	-
   Waveform or Output Value	-

   Suspected Area	Diagnosis
   -	-

1. DTC numbers and ECU Data Lists of the smart key system can be checked using the Techstream.
2. Check for DTCs using the following procedure. If any DTCs are output, diagnose those DTCs first.
   1. Connect the Techstream to the DLC3.
   2. Turn the power switch on (IG).
   3. Enter the following menus: Body Electrical / Smart Key, Power Source Control or Starting Control / Trouble Codes.
3. If the power switch cannot be turned on (IG), follow the procedure below to start communication between the Techstream and vehicle.
   1. Connect the Techstream to the DLC3 and turn a courtesy light switch on and off at 1.5-second intervals until communication between the Techstream and vehicle begins (the Techstream screen changes when communication begins).
4. If cancel is selected for the smart key system customize setting, cancel the smart key cancel setting. Refer to CUSTOMIZE PARAMETERS .

1. Operation 1

   Operation

   Turn the power switch off and lock all the doors, then take the electrical key transmitter sub-assembly approximately 3 m (9.84 ft.) or more away from the vehicle. HINT:  The detection area of each electrical key antenna (outside) is formed by emitting a periodic LF band request signal every 0.25 seconds. The detection area formed by each front door outside handle assembly (electrical key antenna) has a detection range of approximately 0.7 m (2.30 ft.).

   Waveform or Output Value

   Pulse generation (C19-3 (CLG1) - C19-15 (E)*)

   • *: Refer to TERMINALS OF ECU
2. Operation 2

   Operation	Bring the electrical key transmitter sub-assembly within 0.7 m (2.30 ft.) of the driver door. HINT:  The system is in unlock standby mode when the electrical key transmitter sub-assembly is in the detection area and the key ID code sent by the electrical key transmitter sub-assembly matches the key ID code stored by the certification ECU (smart key ECU assembly). The door unlocks if the unlock sensor is touched by hand with the system in unlock standby mode. Signal transmission: Certification ECU (smart key ECU assembly) → Front door outside handle assembly (electrical key antenna) → Electrical key transmitter sub-assembly → Door control receiver → Certification ECU (smart key ECU assembly) → Main body ECU (multiplex network body ECU)
   Expected operation of the vehicle	The electrical key transmitter sub-assembly LED starts blinking. If it does not, any of the parts listed in the table below may be malfunctioning.
   Waveform or Output Value	Pulse generation (C19-3 (CLG1) - C19-15 (E)*) Pulse generation (C20-5 (RCO) - C19-15 (E)*) Pulse generation (C20-15 (RDA) - C19-15 (E)*) Pulse generation (C20-16 (RSSI) - C19-15 (E)*)

   • *: Refer to TERMINALS OF ECU

   Suspected Area	Diagnosis
   Electrical key transmitter sub-assembly	The key ID code sent by the electrical key transmitter sub-assembly does not match the key ID code stored in the certification ECU (smart key ECU assembly). Use another electrical key transmitter sub-assembly to check the operation. If the LED of the electrical key transmitter sub-assembly does not blink when it is brought within 0.7 m (2.30 ft.) of the driver door, perform the following procedure. Press the lock and unlock buttons of the electrical key transmitter sub-assembly to check the operation. If the doors can be locked and unlocked, that means the detection area has not been formed. Parts other than the electrical key transmitter sub-assemblies and front door outside handle assemblies may be malfunctioning. If the electrical key transmitter sub-assembly malfunctions, the EV control system cannot be started and the power switch cannot be turned on (ACC or IG). Under normal operation, when the power switch is pressed with the electrical key transmitter sub-assembly in the driver seat, the shift lever in P and the brake pedal not depressed. HINT:  If the door cannot be opened, use the mechanical key installed in the electrical key transmitter sub-assembly to open the door. Before replacing the electrical key transmitter sub-assembly, check if the transmitter battery is depleted.
   Transmitter battery is depleted	Press and hold the lock switch of the electrical key transmitter sub-assembly for 5 seconds and check the number of times that the transmitter LED blinks. If the transmitter LED does not blink or blinks only once or twice, the transmitter battery may be depleted. If the transmitter LED does not blink at all, the electrical key transmitter sub-assembly may be malfunctioning. If the transmitter battery voltage at the time the electrical key transmitter sub-assembly sends a signal drops to 2.1 V or less, "Yes" is displayed for "Key Low Battery" in the Data List. If the transmitter battery voltage drops to 2.0 V or lower, operation cannot be assured. HINT:  The output of the electrical key transmitter sub-assembly will decrease if it is in low temperatures. When the transmitter battery is depleted, the EV control system cannot be started and the power switch cannot be turned on (ACC or IG). If the electrical key transmitter sub-assembly is held near the power switch the EV control system can be started. Make sure that the transmitter battery type and installation direction are correct.
   Wave Interference	If the problem occurs in certain locations or times of day, the possibility of wave interference is high. When the electrical key transmitter sub-assembly is malfunctioning, the transmitter battery is depleted, an electrical key transmitter sub-assembly from another vehicle has been used or wave interference is suspected. "Yes" may be displayed for any of the following Data List items: "Unmatch Code or Form", "No Response", "ID Code Difference" or "Unmatched Vehicle-ID"
   Certification ECU (smart key ECU assembly)	-
   Front door outside handle assembly	Vehicle exterior detection area is not formed properly. If the electrical key transmitter sub-assembly LED does not blink within 0.7 m (2.30 ft.) of the front door outside handle assembly of the driver door, but blinks within 0.7 m (2.30 ft.) of the front passenger door, the front door outside handle assembly of the driver door may be malfunctioning. Even if the vehicle exterior detection area is not formed properly, the power switch can be turned on (ACC) and the EV control system can be started. Formation of the vehicle exterior detection area can be confirmed by using the Techstream. Refer to OPERATION CHECK . Even if the vehicle exterior detection area is not formed properly, the doors can be unlocked by pressing the unlock button of the electrical key transmitter sub-assembly.
   Door Control Receiver	If the door control receiver is malfunctioning, it is not possible to unlock the front passenger door. If the door control receiver is malfunctioning, it is not possible to unlock the doors by a wireless unlock operation. If the door control receiver is malfunctioning, the EV control system cannot be started and the power switch cannot be turned on (ACC or IG) unless in an emergency. Formation of the vehicle exterior detection area can be confirmed by using the Techstream. Refer to OPERATION CHECK .
   Vehicle Auxiliary Battery is discharged	It may be possible to tell whether the vehicle auxiliary battery is discharged by operating the horn.
   Others	If the smart key system function has been cancelled through the customize function, the detection area cannot be formed, therefore the electrical key transmitter sub-assembly LED will not blink even if the electrical key transmitter sub-assembly is brought near a front door outside handle assembly. In the smart key system, if the electrical key transmitter sub-assembly is constantly in the exterior detection area of one of the doors, the transmitter battery could be drained. For this reason, if this state continues longer than 10 minutes, the smart key system automatically deactivates the exterior detection area that the electrical key transmitter sub-assembly is in. If the electrical key transmitter sub-assembly is left in the vehicle and the doors are locked using another electrical key transmitter sub-assembly, the electrical key transmitter sub-assembly LED will not blink even if it is brought near a front door outside handle assembly.

3. Operation 3

   Operation	Touch the unlock sensor of the driver door with the electrical key transmitter sub-assembly in the exterior detection area.
   Expected operation of the vehicle	While the doors are unlocked, the answer back is performed at the same time. If they do not, any of the parts listed in the table below may be malfunctioning.
   Waveform or Output Value	Pulse generation (C19-20 (SEN1) - C19-15 (E)*) Tester Connection "main body ECU (multiplex network body ECU), instrument panel junction block assembly (ACT-)*

   • *: Refer to TERMINALS OF ECU

   Suspected Area	Diagnosis
   The suspected parts below overlap with the parts covered in operation 2 for when the electrical key transmitter sub-assembly LED does not blink.	-
   Front door outside handle assembly (unlock sensor)	If the doors can be unlocked by touching the unlock sensor of the front passenger door while carrying the electrical key transmitter sub-assembly, the unlock sensor of the driver door may be malfunctioning. Under normal operation, "ON" is displayed for the Data List item "D-Door Touch Sensor" when the unlock sensor is touched.
   Door lock/unlock mechanism	If a door cannot be locked/unlocked by operating the door control switch on the door in the cabin, the door lock mechanism is malfunctioning.

4. Operation 4

   Operation	After getting into the vehicle while carrying the electrical key transmitter sub-assembly, close the door and press the power switch once with the shift lever in P while not depressing the brake pedal.
   Expected operation of the vehicle	The power switch illuminates in orange [the power source mode change to on (ACC)]. The security indicator light stops blinking and turns off. The immobiliser changes from set to unset and EV control system start is permitted. The steering wheel is unlocked. If it does not, the parts listed below may be malfunctioning.HINT: When the power switch is pressed, the indoor electrical key oscillator forms a key detection area inside the vehicle and detects the electrical key transmitter sub-assembly in the cabin. The electrical key transmitter sub-assembly sends the ID code upon receiving a request signal and the electrical key transmitter sub-assembly LED illuminates for a short time. After pressing the power switch, if the key ID code sent by the electrical key transmitter sub-assembly matches the key ID code stored by the certification ECU (smart key ECU assembly), the ACC relay turns "ON" and the power switch indicator illuminates in orange. Then after the power source mode has changed, L code verification has been completed, the steering wheel will be unlocked and the immobiliser will be inactive. Then the Data List status of "Immobiliser" will be changed from "Set" to "Unset".Signal transmission: Certification ECU (smart key ECU assembly) → Indoor electrical key oscillator → Electrical key transmitter sub-assembly → Door control receiver → Certification ECU (smart key ECU assembly)HINT: The interior detection area is formed when any of the following conditions are met: Within approximately 30 seconds after any of the doors have been closed and opened. Within approximately 30 seconds after any of the doors have been opened and closed. The brake pedal is depressed. Within approximately 30 seconds after the brake pedal has been depressed. Right after the power switch is pressed.
   Waveform or Output Value	Pulse generation (C20-15 (RDA) - C19-15 (E)*) Pulse generation (C19-7 (CLG5) - C19-15 (E)*)

   • *: Refer to TERMINALS OF ECU

   Suspected Area	Diagnosis
   Certification ECU (smart key ECU assembly)	-
   Wave Interference	If malfunctions occur at a specific location/time, wave interference may be the cause. If wave interference is suspected in the cabin, disconnect all the connectors of electronic devices besides standard equipment, or remove the electronic devices and check for noise.
   Indoor electrical key oscillators that form the interior detection areas.	If the interior detection areas are not formed properly, the EV control system cannot be started and the power switch cannot be turned on (ACC or IG). If the electrical key transmitter sub-assembly is held near the power switch in an emergency, the EV control system can be started. Using the Techstream, enter the key diagnostic mode to forcibly form the interior detection area. If the electrical key transmitter sub-assembly is brought near the area, short beeps sound. Refer to OPERATION CHECK .
   Power switch	Under normal operation, after the power switch is pressed, "ON" is displayed for the Data List items "Start Switch1" and "Start Switch2".
   Steering lock ECU (steering lock actuator assembly)	If "OK" is displayed for the Data List item "L Code Check" when the power switch is turned on (ACC), power will be supplied to the steering motor for approximately 10 seconds. Then the ECU sends an unlock signal to the steering motor and the Data List item "Unlock Request Receive" temporarily changes from "NG" to "OK". After the steering unlocks the ECU receives the unlocked signal from the steering motor and the Data List item "Steering Unlock" changes from "Unset" to "Set". In order to unlock the steering wheel, it is necessary that "OK" is displayed for the Data List item "L Code Check" (the ID code stored in the steering lock ECU (steering lock actuator assembly) matches that of the certification ECU (smart key ECU assembly).

   HINT:

   The electrical key transmitter sub-assembly, the transmitter battery and the vehicle auxiliary battery have already been inspected in the previous operation steps. However, if they have not been inspected, inspect them.

5. Operation 5

   Operation	Depress the brake pedal with the shift lever in P while carrying an electrical key transmitter sub-assembly.
   Expected operation of the vehicle	The power switch indicator illuminates in green. If it does not, the parts listed below may be malfunctioning.

   Suspected Area	Diagnosis
   Stop light switch assembly	If the brake pedal is depressed, "ON" is displayed for the Data List item "Stop Light Switch1".
   Certification ECU (smart key ECU assembly)	Start function-Terminals of ECU. Refer to TERMINALS OF ECU

6. Operation 6

   Operation	After getting into the vehicle while carrying the electrical key transmitter sub-assembly, press the power switch with the shift lever in P while depressing the brake pedal.
   Expected operation of the vehicle	The EV control system starts. If it does not, the parts listed below may be malfunctioning.

   Suspected Area	Diagnosis
   Steering lock system	Under normal operation, the steering wheel will be unlocked and "ON" is displayed for the Data List item "Steering Unlock Switch".
   Vehicle Auxiliary Battery is discharged	Whether the vehicle auxiliary battery is discharged or not can be checked easily by operating the horn.

7. Operation 7

   Operation	Press the power switch.
   Expected operation of the vehicle	The EV control system stops, the power switch stops illuminating in green and turns off (all power is turned off). The security indicator light starts blinking.

8. Operation 8

   Operation	Open any of the doors with the power switch off.
   Expected operation of the vehicle	The steering wheel locks. If it does not, the parts listed below may be malfunctioning.

   Suspected Area	Diagnosis
   Steering lock system	-
   Door courtesy light switch assembly	When any of the doors are opened, "OFF" is displayed for the Data List item "FL Door Courtesy".

9. Operation 9

   Operation	Touch the lock sensor of the driver door outside handle while carrying the electrical key transmitter sub-assembly.
   Expected operation of the vehicle	Answer back is performed at the same time when the doors are locked.

1. Some customers may inquire about the frequency used by the smart key system (for Entry Function) on various models. This repair manual contains the applicable specifications of the smart key system (for Entry Function).

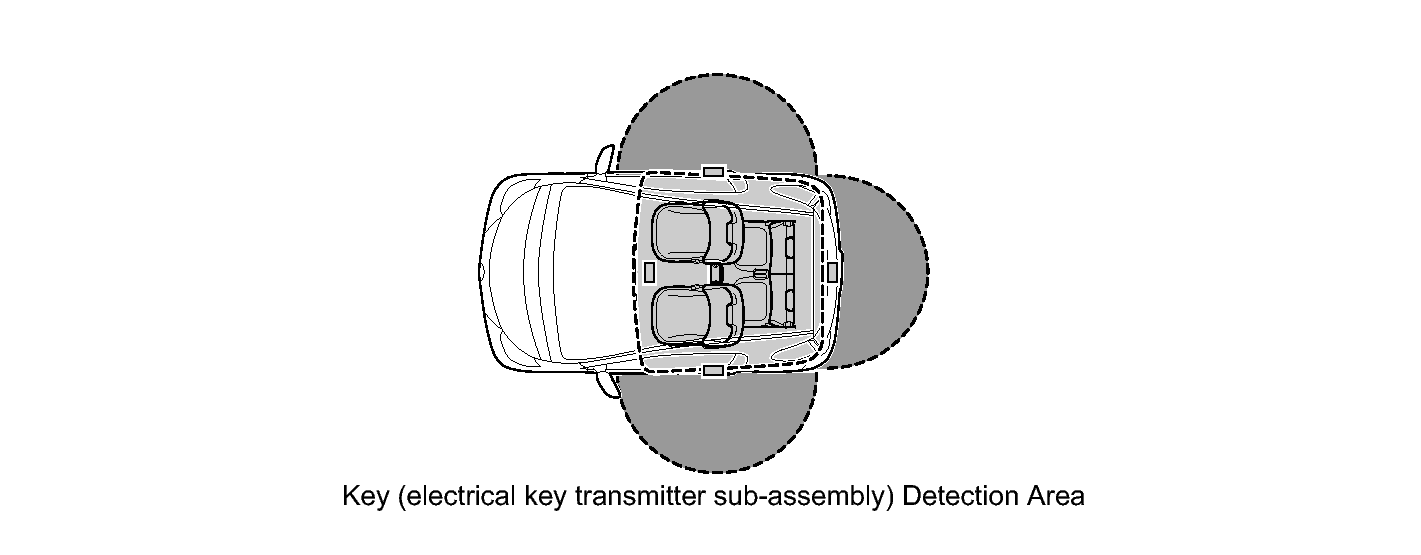

   Fig 4: Identifying Key (Electrical Key Transmitter Sub-Assembly) Detection Area

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   SPECIFICATIONS FOR SMART KEY ANTENNA LF OUTPUT POWER



   	Specification
   	Frequency	Output Power/Electric Field Intensity	Modulation Method	Mounting Point in Vehicle
   Inside Passenger Compartment	134.2 kHz	94.4 dBuV/m at 3 m	AM	Inside front floor Inside luggage
   Outside Vehicle	134.2 kHz	95 dBuV/m at 3 m	AM	Inside door handle Inside rear bumper

   SPECIFICATIONS FOR SMART KEY ANTENNA LF TRANSMISSION TIMING



   	Transmission Timing
   	Vehicle Remains Parked	Entering or Exiting the Vehicle	Vehicle is being Driven
   Inside Passenger Compartment	Does not transmit	Operating door locks Operating power switch / depressing brake pedal Opening or closing doors With power switch on (IG) or on (ACC), and in P, closing a door when the electrical key transmitter sub-assembly cannot be detected inside the vehicle (continues for 3 seconds until the electrical key transmitter sub-assembly is detected or the power switch is turned off) Power switch is off after driving for more than 20 minutes (Not in P) when shutting the door, if the electrical key transmitter sub-assembly cannot be detected inside the vehicle (Transmits for 3 seconds until the electrical key transmitter sub-assembly is located)	When electrical key transmitter sub-assembly is not detected inside passenger compartment while car is being driven (transmits for 3 seconds)
   Outside Vehicle	(1) When door is locked, transmits at 250 ms intervals (stops when door is unlocked) (2) Does not transmit	(1) Touch the lock sensor (2) Back door open switch is depressed (3) Touch the unlock sensor at power saving mode	Does not transmit

1. When the smart key system is operating, the vehicle performs key detection operations every 0.25 seconds. Therefore, if the vehicle is left as is for a long period of time, the vehicle auxiliary battery may become fully discharged. The following controls help reduce the rate at which the vehicle auxiliary battery is discharged.
   1. If the smart key system is not operated for 5 days or more, periodic signal transmission from the electrical key antennas stops. However, the doors can still be unlocked by touching the unlock sensor of a front door outside handle assembly.
   2. If the smart key system is not operated for 14 days or more, the lock and unlock sensors of the front passenger door outside handle assembly are disabled. Therefore, only the unlock sensor of the front door outside handle assembly of the driver door can be used to unlock the doors.
   3. If 10 minutes or more elapse while the electrical key transmitter sub-assembly is in an exterior detection area, the front door outside handle assembly (electrical key antenna) detecting the electrical key transmitter sub-assembly will stop operating.
2. To restore operation of the smart key system, perform any of the following operations.
   1. While carrying the electrical key transmitter sub-assembly, touch the lock or unlock sensor of the front door outside handle assembly of the driver side door and perform a door lock or unlock operation.
   2. Lock or unlock the doors with the wireless operation.
   3. Insert the mechanical key into the door key cylinder of the driver door and lock or unlock the doors.

1. The volume of the wireless door lock buzzer can be changed through the customize function.

   HINT:

   The volume of the following wireless door lock buzzer operations cannot be adjusted.

   • Warning function buzzer operations
   • Customize function buzzer operations
   • Buzzer operations for key diagnostic mode using the Techstream
   • Key registration buzzer operations

HINT:

When any of the situations below occur, the smart key system causes the certification ECU (smart key ECU assembly) to sound the wireless door lock buzzer and a buzzer in the combination meter assembly a message to appear on the multi-information display, and the power switch illuminate to operate in order to alert the driver.

1. Shift lever not in P (power source cut reminder) vehicle exit warning
   1. Situation A: The driver side door is opened and vehicle exit is attempted while the shift lever is not in P.

      Item	Content
      Reason for warning	Prevention of sudden forward movement of vehicle Vehicle theft prevention Vehicle roll-away (vehicle starts moving even when nobody is aboard due to slope, etc.) prevention
      Warning start condition (All conditions are met)	Shift lever is not in P Power switch is on (ACC) or on (IG) Driver side door is opened Vehicle speed is 0 km/h (0 mph)
      Warning description	Buzzer in combination meter assembly sounds continuously "SHIFT TO P POSITION" is displayed on multi-information display in combination meter assembly
      Warning stop condition (Any condition is met)	Shift lever moved to P Power switch is turned off Driver side door is closed Vehicle is driven

   2. Situation B: Under the conditions specified in situation A, the electrical key transmitter sub-assembly is brought out of the vehicle, the driver side door is closed and movement away from the vehicle is attempted.

      Item	Content
      Reason for warning	Prevention of sudden forward movement of vehicle Vehicle theft prevention Vehicle roll-away prevention
      Warning start condition (All conditions are met)	Shift lever is not in P Power switch is on (ACC) or on (IG) Driver side door is opened and then closed Vehicle speed is 0 km/h (0 mph) Electrical key transmitter sub-assembly is not inside vehicle (matching code is not detected in vehicle interior)
      Warning description	Buzzer in combination meter assembly sounds continuously "SHIFT TO P POSITION" is displayed on multi-information display in combination meter assembly "KEY NOT DETECTED" is displayed on multi-information display in combination meter assembly Wireless buzzer sounds continuously
      Warning stop condition (Any condition is met)	Shift lever is moved to P or vehicle is driven: Buzzer stops and only "KEY NOT DETECTED" is displayed on multi-information display in combination meter assembly Power switch is turned off: All warnings stop Electrical key transmitter sub-assembly is detected inside vehicle (matching code is detected in vehicle interior): Buzzer stops and only "SHIFT TO P POSITION" is displayed on multi-information display in combination meter assembly

2. Key reminder warning
   1. The driver side door is opened and vehicle exit is attempted while the steering lock is unlocked.

      Item	Content
      Reason for warning	Vehicle theft prevention
      Warning start condition (Any condition is met)	Condition 1: Power switch is on (ACC) Driver side door is opened Condition 2: Power switch is off Driver side door is opened Steering lock is unlocked
      Warning description	Buzzer in combination meter assembly sounds continuously
      Warning stop condition (Any condition is met)	Condition 1: Power switch is turned on (IG) Condition 2: Driver side door is closed Condition 3: Power switch is turned off Steering lock is locked

3. Shift lever in P (power source cut reminder) vehicle exit warning
   1. Situation A: The driver side door is opened and vehicle exit is attempted while the shift lever is in P and the power switch is not off.

      Item	Content
      Reason for warning	Vehicle theft prevention
      Warning start condition (All conditions are met)	Shift lever is in P Power switch is on (ACC) or on (IG) Driver side door is opened and then closed Electrical key transmitter sub-assembly is not inside vehicle (matching code is not detected in vehicle interior) Vehicle speed is 0 km/h (0 mph) Electrical key transmitter sub-assembly is not inside vehicle or transmitter battery is fully depleted (matching code is not detected in vehicle interior)
      Warning description	Buzzer in combination meter assembly sounds once "KEY NOT DETECTED" is displayed on multi-information display in combination meter assembly Wireless buzzer sounds 3 times (short beeps)
      Warning stop condition (Either condition is met)	Power switch is turned off Key is detected inside vehicle (matching code is detected in vehicle interior)

   2. Situation B: Under the conditions specified in situation A, the doors are closed and an entry lock operation is attempted.

      Item	Content
      Reason for warning	Vehicle theft prevention
      Warning start condition (All conditions are met)	Shift lever is in P Power switch is on (ACC) or on (IG) All doors are closed Electrical key transmitter sub-assembly is outside vehicle (matching code is detected outside of vehicle) Electrical key transmitter sub-assembly is not inside vehicle (matching code is not detected in vehicle interior) Entry lock operation is performed while carrying electrical key transmitter sub-assembly Vehicle speed is 0 km/h (0 mph) Electrical key transmitter sub-assembly is not inside vehicle or transmitter battery is fully depleted (matching code is not detected in vehicle interior)
      Warning description	Wireless buzzer sounds for 5 seconds (continuous beep) Buzzer in combination meter assembly sounds once "TURN POWER OFF", "KEY NOT DETECTED" is displayed on multi-information display in combination meter assembly for 60 seconds
      Warning stop condition (Any condition is met)	Power switch is turned off Electrical key transmitter sub-assembly is detected inside vehicle (matching code is detected in vehicle interior) Any door is opened 5 seconds elapse after warning starts (only buzzer stops)

4. Passenger has brought electrical key transmitter sub-assembly out of vehicle warning
   1. Any door other than the driver side door is opened and vehicle exit is attempted while carrying the electrical key transmitter sub-assembly.

      Item	Content
      Reason for warning	Prevention of EV control system being unable to be restarted
      Warning start condition (All conditions are met)	Power switch is on (ACC) or on (IG) Any door other than driver side door is opened and then closed Vehicle speed is 0 km/h (0 mph) Electrical key transmitter sub-assembly is not inside vehicle or transmitter battery is fully depleted (matching code is not detected in vehicle interior)
      Warning description	Buzzer in combination meter assembly sounds once "KEY NOT DETECTED" is displayed on multi-information display in combination meter assembly Wireless buzzer sounds 3 times (short beeps)
      Warning stop condition (Either condition is met)	Power switch is turned off Electrical key transmitter sub-assembly is detected inside vehicle (matching code is detected in vehicle interior)

5. Starting to drive without key warning
   1. The driver starts driving while they electrical key transmitter sub-assembly is not in the vehicle.

      Item	Content
      Reason for warning	Prevention of EV control system being unable to be restarted
      Warning start condition	Warning due to electrical key transmitter sub-assembly being brought out of vehicle is operating and vehicle speed is more than 0 km/h (0 mph) (first time only)
      Warning description	Buzzer in combination meter assembly sounds once "KEY NOT DETECTED" is displayed on multi-information display in combination meter assembly
      Warning stop condition (Either condition is met)	Power switch is turned off Electrical key transmitter sub-assembly is detected inside vehicle (matching code is detected in vehicle interior)

6. Key is not within detection area warning
   1. An attempt is made to turn the power switch on (ACC) or on (IG) or to start the EV control system while the electrical key transmitter sub-assembly cannot be detected inside the vehicle or is not operating properly.

      Item	Content
      Reason for warning	User confusion prevention
      Warning start condition (Both conditions are met)	Electrical key transmitter sub-assembly is not inside vehicle or transmitter battery is fully depleted (matching code is not detected in vehicle interior) Power switch is on (ACC) or on (IG)
      Warning description	Buzzer in combination meter assembly sounds once "KEY NOT DETECTED" is displayed on multi-information display in combination meter assembly
      Warning stop condition (Either condition is met)	Power switch is turned off Electrical key transmitter sub-assembly is detected inside vehicle (matching code is detected in vehicle interior)

7. Key left inside vehicle warning
   1. An entry lock operation is attempted while the electrical key transmitter sub-assembly is inside the vehicle.

      Item	Content
      Reason for warning	Vehicle theft prevention
      Warning start condition (All conditions are met)	Power switch is off All doors are closed Any door is unlocked Electrical key transmitter sub-assembly is inside vehicle (matching code is detected in vehicle interior) and entry lock operation is performed
      Warning description	Buzzer in combination meter assembly sounds once Wireless buzzer sounds for 5 seconds (continuous beep) "KEY DETECTED IN VEHICLE" is displayed on multi-information display in combination meter assembly for 60 seconds
      Warning stop condition (Any condition is met)	Power switch is turned on (ACC) or on (IG) Electrical key transmitter sub-assembly is detected outside vehicle (matching code is detected outside of vehicle) and entry lock operation is performed

8. Door ajar entry lock warning
   1. An entry lock operation is attempted while any door is ajar.

      Item	Content
      Reason for warning	Vehicle theft prevention
      Warning start condition (All conditions are met)	Power switch is off Any door is ajar other than door for which entry lock operation is performed Entry lock operation is performed while carrying key Key is outside vehicle (matching code is detected outside of vehicle)
      Warning description	Wireless buzzer sounds for 5 seconds (continuous beep)
      Warning stop condition (Any condition is met)	Power switch is turned on (ACC) or on (IG) All doors are closed Wireless unlock operation is performed Entry unlock operation is performed 5 seconds elapse after warning starts

9. Key lock-in prevention function
   1. The key is locked in the vehicle.

      Item	Content
      Reason for warning	Vehicle theft prevention
      Warning start condition (Either condition is met)	Keyless lock operation* is performed Key is inside vehicle (matching code is detected in vehicle interior)
      Warning description	Wireless buzzer sounds for 5 seconds (continuous beep) Buzzer in combination meter assembly sounds once "KEY DETECTED IN VEHICLE" is displayed on multi-information display in combination meter assembly for 60 seconds
      Warning stop condition (Any condition is met)	Power switch is turned on (ACC) or on (IG) 5 seconds elapse after warning starts (only buzzer stops) 60 seconds elapse after warning starts Vehicle is driven Lock operation is performed

      • *: A keyless lock operation is when a door is locked by operating the door lock knob of an open door, and then closing the door while pulling the front door outside handle assembly.
10. Key battery low warning
    1. The vehicle is driven while the transmitter battery is almost depleted.

       Item	Content
       Reason for warning	Helpful function
       Warning start condition (Both conditions are met)	Power switch is on (IG) for 20 minutes or more and then turned off Transmitter battery is almost depleted
       Warning description	Buzzer in combination meter assembly sounds once "KEY BATTERY LOW" is displayed on multi-information display in combination meter assembly for 15 seconds

11. Steering lock cannot be released warning
    1. Steering lock cannot be released.

       Item	Content
       Reason for warning	Helpful function
       Warning start condition	The steering lock does not release when performing the release operation, preventing the EV control system from starting
       Warning description	Buzzer in combination meter assembly sounds once "STEERING LOCK ACTIVE" is displayed on multi-information display in combination meter assembly for 15 seconds Power switch indicator light (green) blinks in 1 second cycles for 30 seconds
       Warning stop condition (Any condition is met)	Steering lock is unlocked Steering lock is malfunctioning

12. Steering lock malfunction warning
    1. A malfunction that may cause an operation error to steering lock ECU (steering lock actuator assembly) has been detected.

       Item	Content
       Reason for warning	Malfunction detection
       Warning start condition	Steering lock ECU (steering lock actuator assembly) or power management control ECU malfunction, or steering lock/unlock switch failure
       Warning description	Buzzer in combination meter assembly sounds once "CHECK STEERING LOCK SYSTEM" is displayed on multi-information display in combination meter assembly for 15 seconds Power switch indicator light (orange) blinks in 2 second cycles for 15 seconds
       Warning stop condition (Any condition is met)	A failure of the lock/unlock detection switch in the steering lock actuator assembly has been resolved

13. EV control system starting support
    1. An attempt is made to start the EV control system by holding the key against the power switch while the transmitter battery is fully depleted.

       Item	Content
       Reason for warning	Helpful function
       Warning start condition (All conditions are met)	Immobiliser is set Electrical key transmitter sub-assembly is not inside vehicle (matching code is not detected in vehicle interior) Unlock operation is performed with mechanical key or 2 consecutive attempts to turn power switch on (IG) are made (matching code is not detected in vehicle interior)
       Warning description	Buzzer in combination meter assembly sounds once "DEPRESS BRAKE PEDAL TOUCH POWER SWITCH WITH KEY" is displayed on multi-information display in combination meter assembly for 60 seconds
       Warning stop condition (Any condition is met)	60 seconds elapse after warning starts Electrical key transmitter sub-assembly is detected inside vehicle (matching code is detected in vehicle interior or near power switch) 30 seconds elapse after any door is opened and closed

    2. The system judges that the driver does not understand how to start the EV control system.

       Item	Content
       Reason for warning	Helpful function
       Warning start condition (Both conditions are met)	Power switch is off and driver side door is opened Power source mode is changed from off to on (ACC) 2 times or more while brake pedal is not depressed
       Warning description	"DEPRESS BRAKE PEDAL, AND PUSH POWER SWITCH TO START" is displayed on multi-information display in combination meter assembly for 10 seconds
       Warning stop condition (Any condition is met)	10 seconds elapse after warning starts Power switch is turned off Power switch is turned on (IG)

    3. An attempt is made to start the EV control system while the shift lever is in a position that does not permit the EV control system to be started.

       Item	Content
       Reason for warning	Helpful function
       Warning start condition (All conditions are met)	Shift lever is not in P or N EV control system is not started Vehicle is not being driven Starter motor is not operating 0.5 seconds or more have elapsed after power switch is turned on (IG)
       Warning description	"SHIFT TO P POSITION TO START" is displayed on multi-information display in combination meter assembly
       Warning stop condition (Any condition is met)	Power source mode is changed to mode other than on (IG) EV control system in started Vehicle is driven Shift lever is moved to P or N

14. Power source off operation advice
    1. An attempt is made to turn the power switch off while the shift lever is not in P or N.

       Item	Content
       Reason for warning	Helpful function
       Warning start condition (Any condition is met)	Shift lever is not in P or N Power switch is turned on (ACC) while power switch is on (IG) or EV control system is started
       Warning description	Buzzer in combination meter assembly sounds once "SHIFT TO P RANGE AND PUSH POWER SWITCH TO TURN POWER OFF" is displayed on multi-information display in combination meter assembly
       Warning stop condition (Any condition is met)	Shift lever is moved to P Power source mode is changed to mode other than on (ACC)

    2. A warning message appears on the multi-information display when automatic power off operation occurs.

       Item	Content
       Reason for warning	Vehicle battery saving function
       Warning start condition (Any condition is met)	The shift lever is in P The power switch is on (ACC) or on (IG) The vehicle speed is 0 km/h (0 mph) The EV control system is stopped The power source control system is turned off by automatic power off function
       Warning description	"AUTO POWER OFF TO CONSERVE BATTERY" is displayed on multi-information display in combination meter assembly for 10 seconds
       Warning stop condition (Any condition is met)	10 seconds elapse after warning starts The power switch is on (ACC) or on (IG)

15. Immobiliser verification completion notification
    1. If the electrical key transmitter sub-assembly touches the power switch when the transmitter battery in the electrical key transmitter sub-assembly is dead, when there is an entry cancel, or when there is radio wave interference.

       Item	Content
       Reason for warning	Helpful function
       Warning start condition	Key certification result is OK
       Warning description	Buzzer in combination meter assembly sounds once "DEPRESS BRAKE PEDAL, AND PUSH POWER SWITCH TO START" is displayed on multi-information display in combination meter assembly for 10 seconds
       Warning stop condition (Any condition is met)	10 seconds elapse after warning starts Electrical key transmitter sub-assembly is detected inside vehicle (matching code is detected in vehicle interior) The EV control system is started The immobiliser system is set and room recognize is stopped or cannot be recognized
