Instrument Panel Junction Block Assembly Inner Circuit

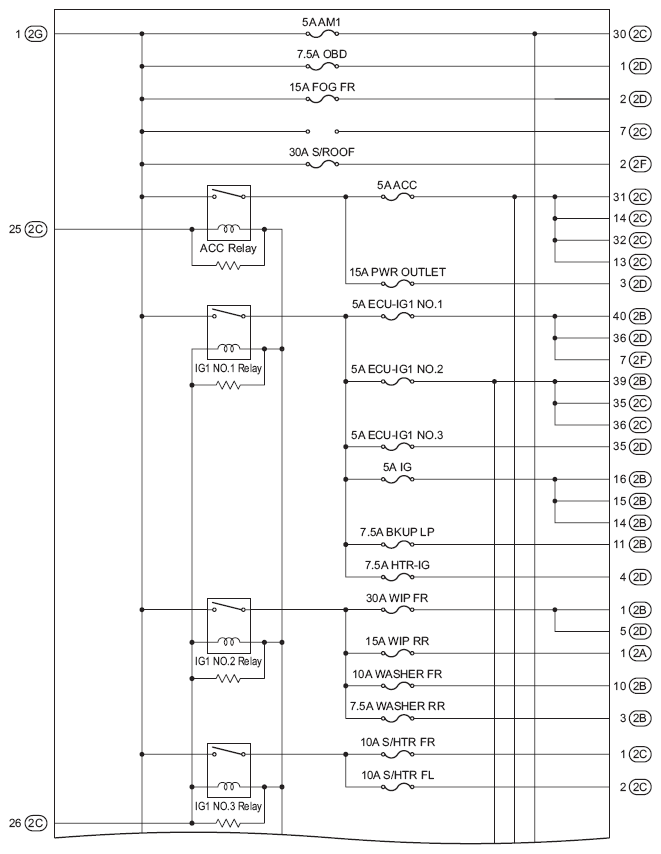

Fig 1: Instrument Panel J/B Assembly Inner Circuit Diagram (1 Of 4) With Relays
G08775029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
ACC Relay
IG1 No.1 Relay
IG1 No.2 Relay
IG1 No.3 Relay

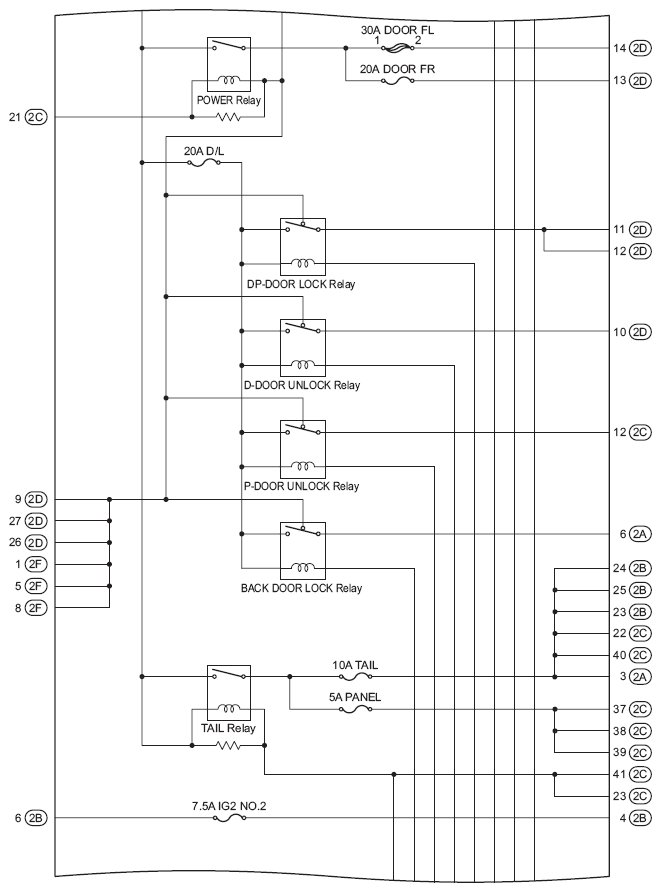

Fig 2: Instrument Panel J/B Assembly Inner Circuit Diagram (2 Of 4) With Relays
G08775030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
Power Relay
DP-DOOR LOCK Relay
D-DOOR Unlock Relay
P-DOOR Unlock Relay
Back Door Lock Relay
Tail Relay

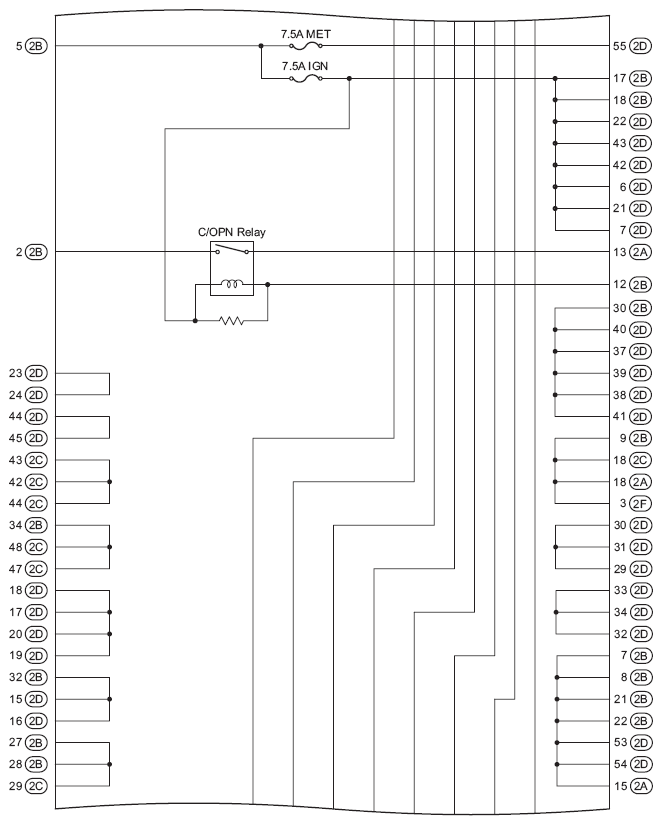

Fig 3: Instrument Panel J/B Assembly Inner Circuit Diagram (3 Of 4) With Relays
G08775031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
C/OPN Relay

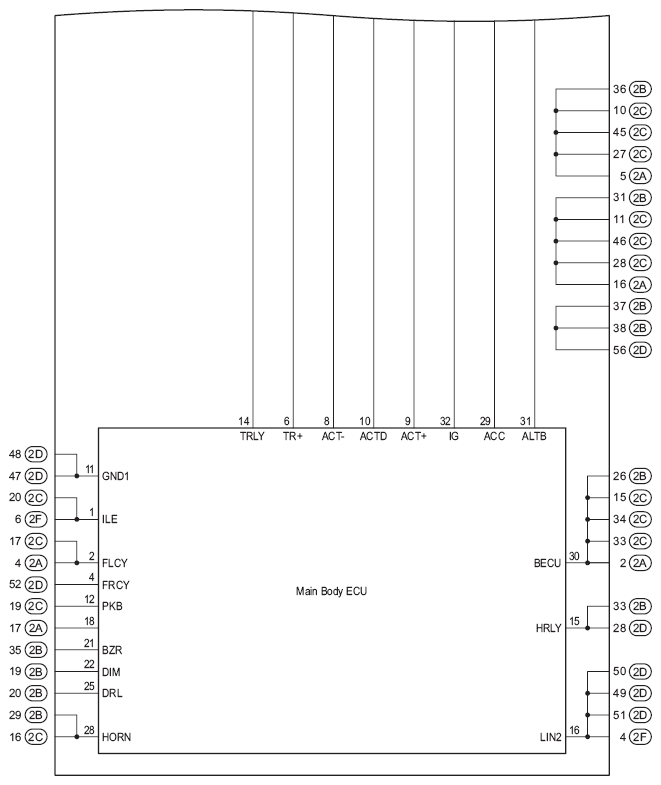

Fig 4: Instrument Panel J/B Assembly Inner Circuit Diagram (4 Of 4)
G08775032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
